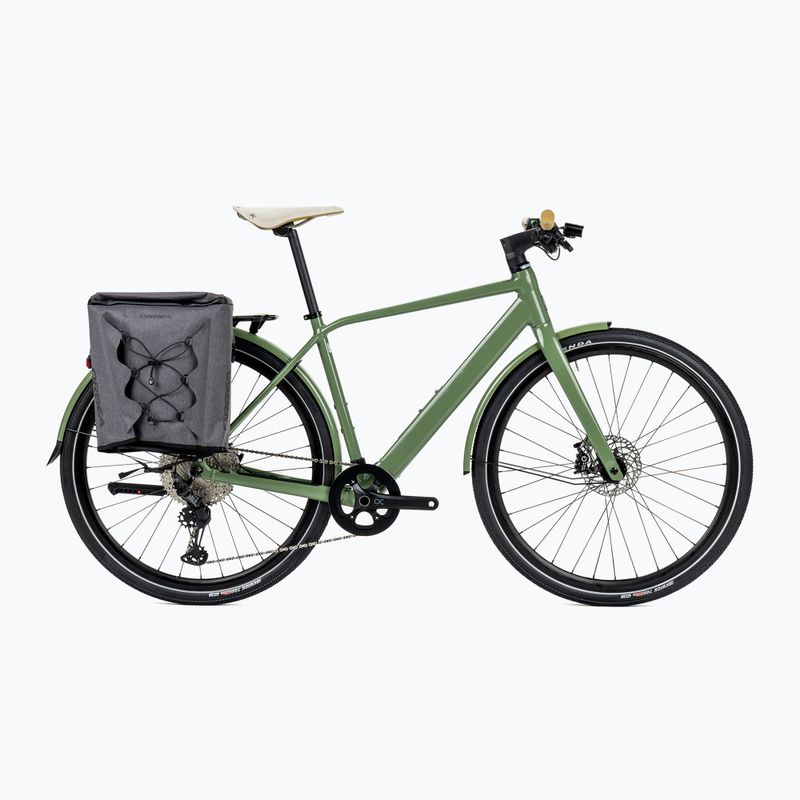

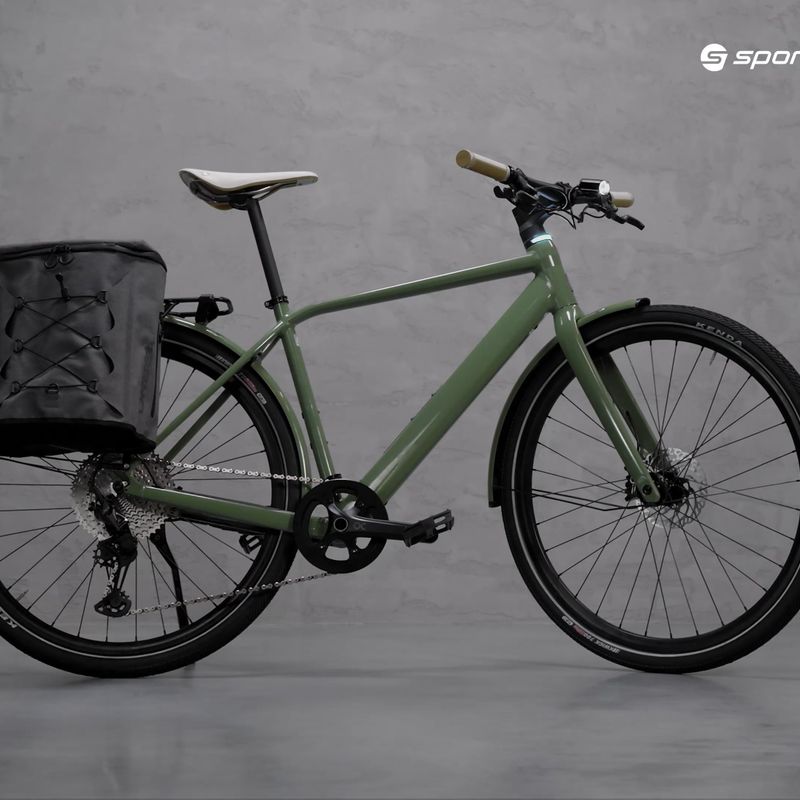

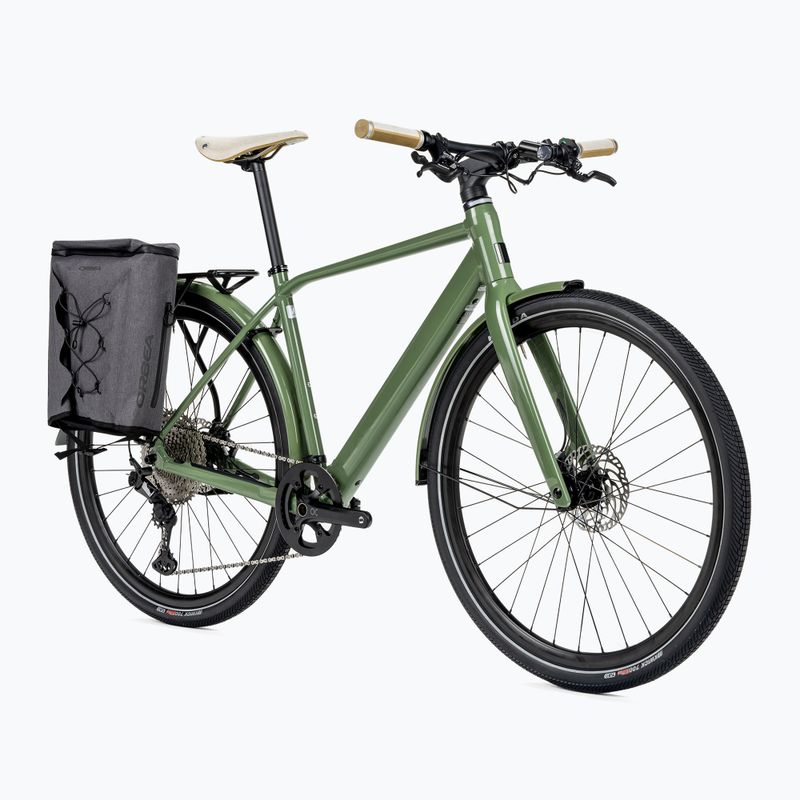

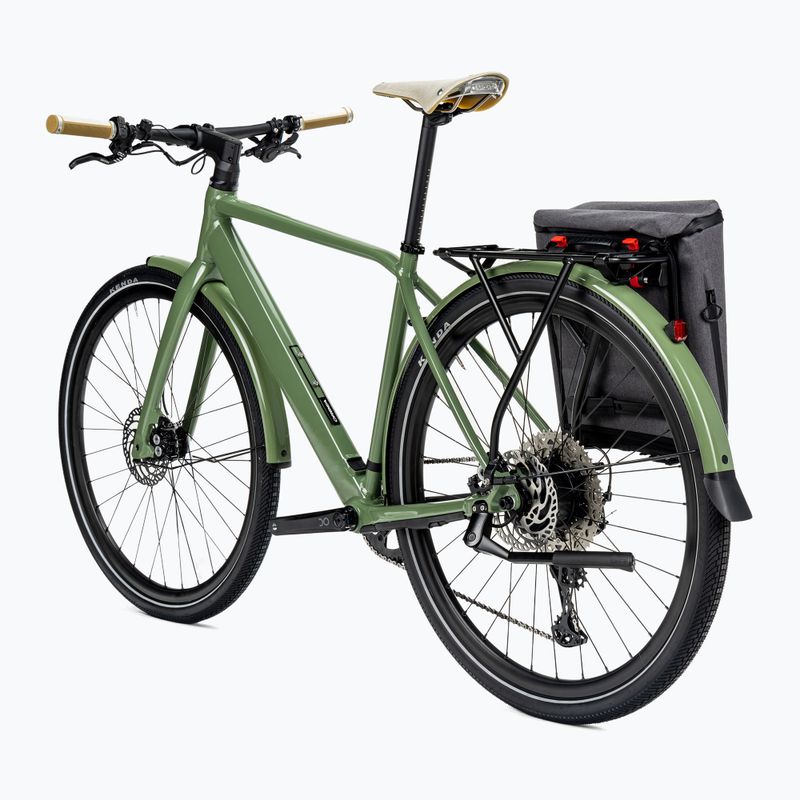

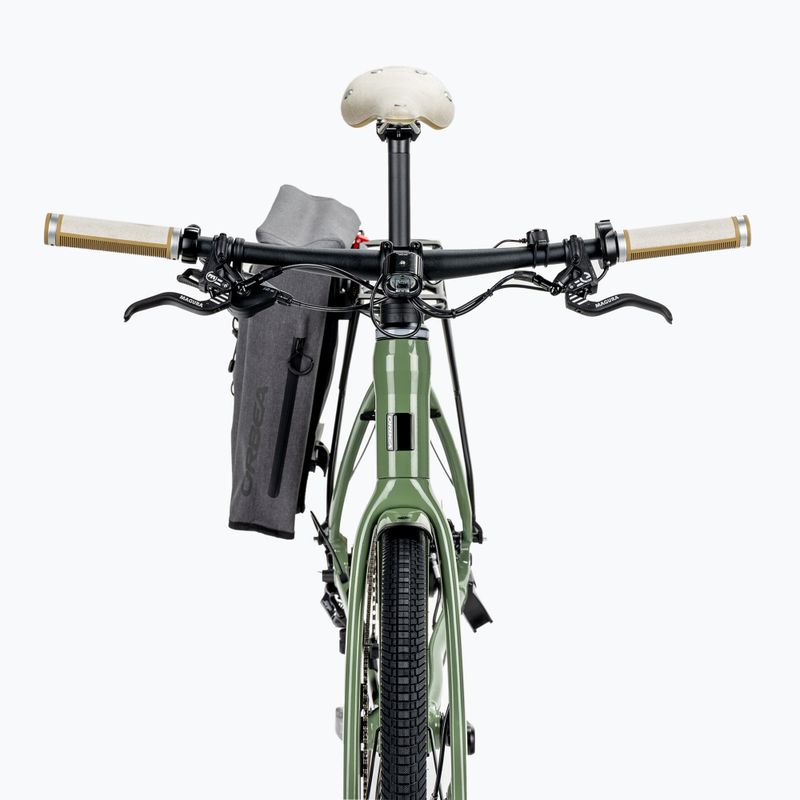

Electric bike Orbea Vibe H10 EQ green

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code VIBE H10 EQ M31049YI

Leading colour Green

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

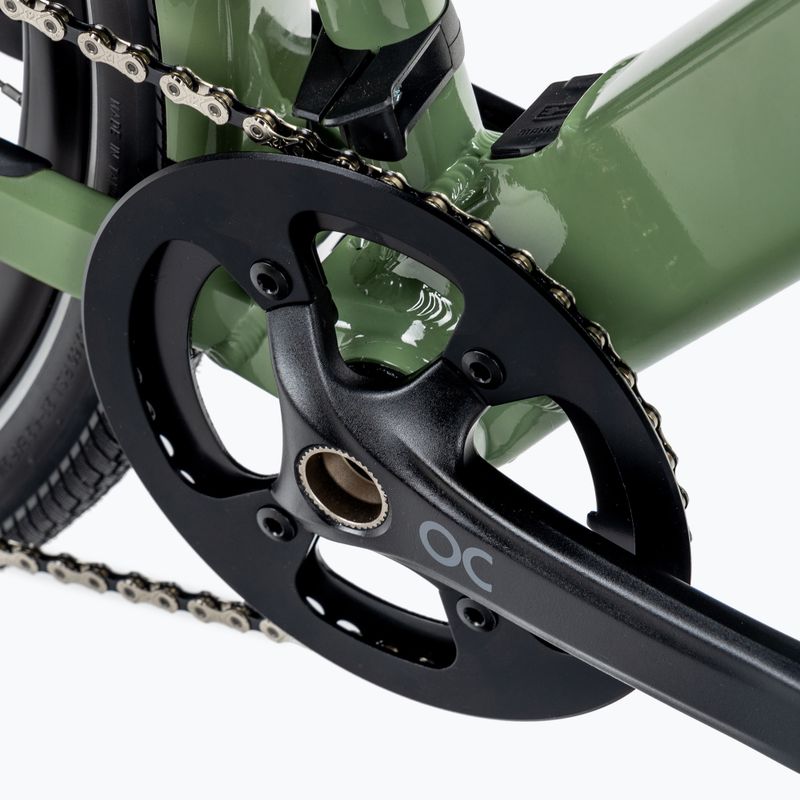

Crank mechanism OC 42t, w/Chainguard

Wheel size 28"

Frame Orbea Vibe Top Bar Hydro 6061, ICR cable routing, Forged BB, 135x9 QR, 700x45 maximun tire, carrier and fenders compatible

Derailleurs 1x12

Sport Bicycles

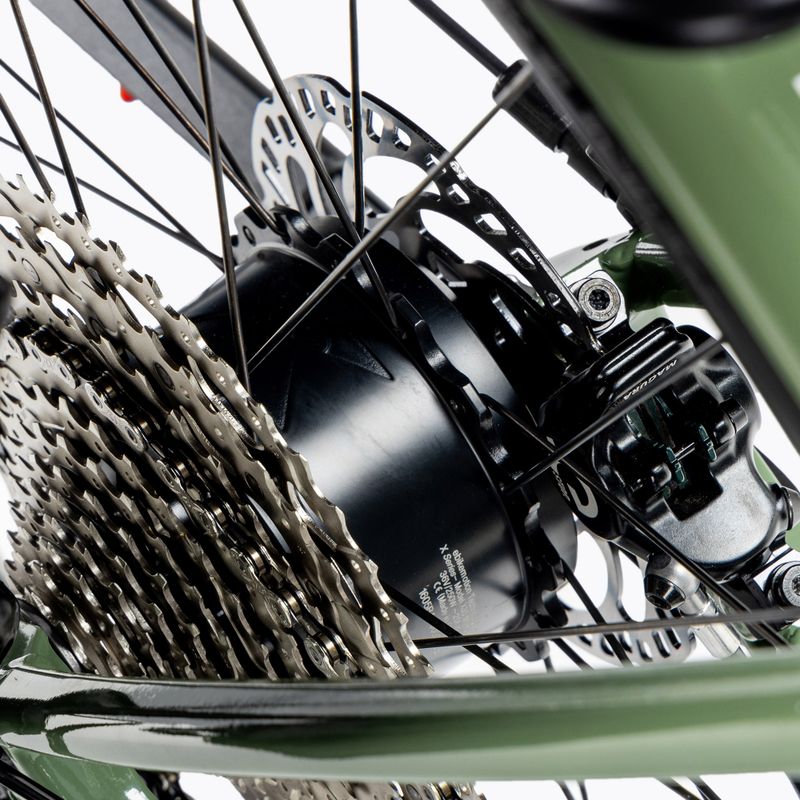

Cassette / Freewheel Sun Race CSMZ80 11-51t 12-Speed Metallic E-bike

Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus

Handles Shimano Deore M6100

Depreciation No

Battery location In the frame

Brakes (model) Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

Purpose City/urban

Maximum range 70 km

Chain KMC X12

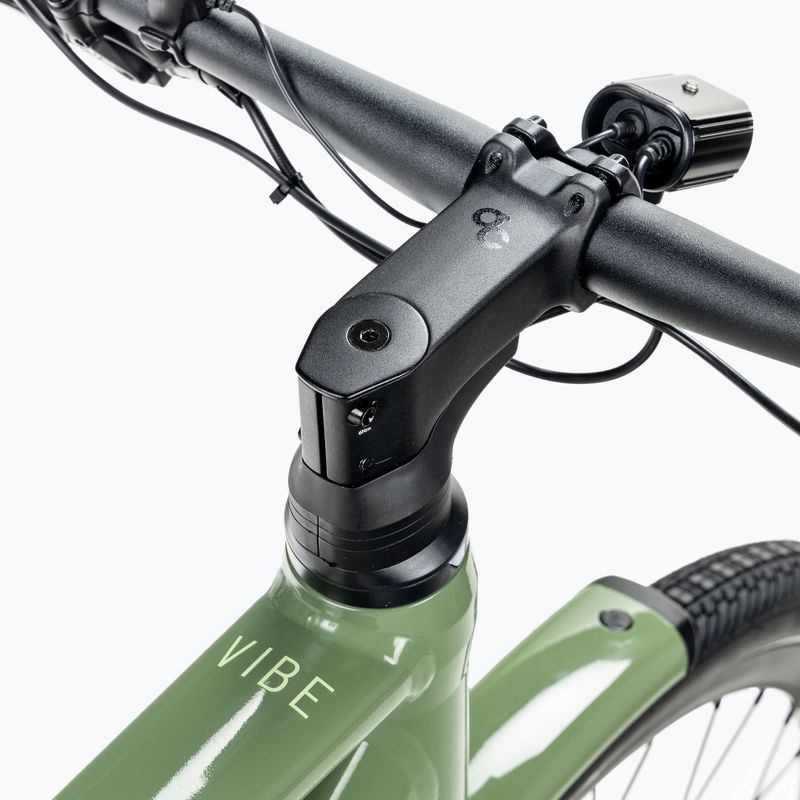

Handlebar support OC1 31.8mm interface -6º

Bar Alloy 27.2 Offset 20

Tyres Kenda K1052 700x45C Reflective type TLR

Frame material Aluminium

Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm

Charger Ebikemotion X35

Engine model Ebikemotion X35 Plus 25kmh

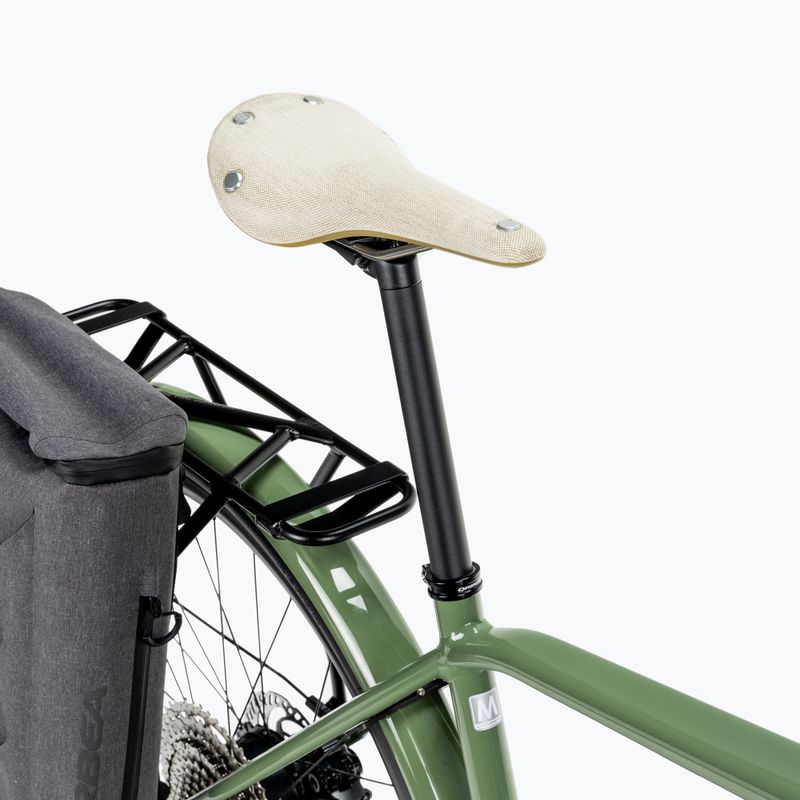

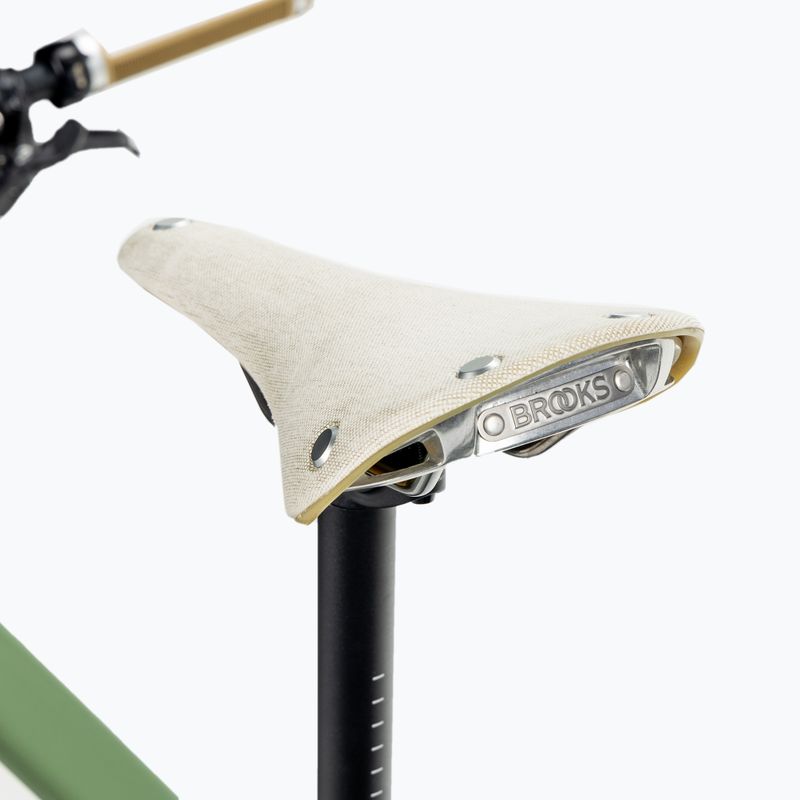

Saddle Brooks Cambium C15 283x140

Weight of bike (estimated) 21,2 kg

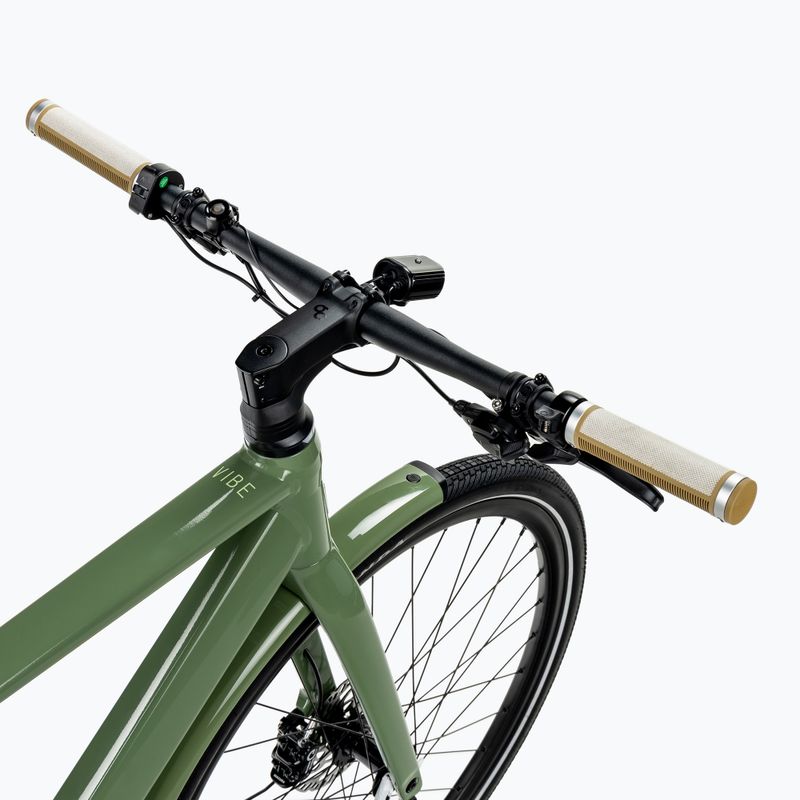

Steering wheel Alloy 31.8mm 12mm Rise 700mm

Brake type Hydraulic discs

Number of gears 12

Wheels Ready GR

Battery capacity 6,9Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub

Battery type Lithium-ion

Maximum user weight 120 kg

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Sizes

Size	S	M	L	XL
Height (cm)	150-165	165-180	180-195	195-205
A - Seat tube (mm)	455	490	530	575
B - Horizontal pipe (mm)	507	530	547	571
C - Steerer tube (deg)	109	140	175	210
D - Rear triangle (mm)	435	435	435	435
E - Support height (mm)	280	280	280	280
F - Support lowering (mm)	76	76	76	76
G - Wheelbase (mm)	1026	1048	1065	1091
H - Head angle	70	70,5	71,5	72
I - Saddle angle	75	74,5	74	74
J - Crossover (mm)	775	809	842	881
K - Reach (mm)	380	395	410	430
L - Stack (mm)	546	580	615	650
M - Fork (mm)	410	410	410	410

Product description

Advantages

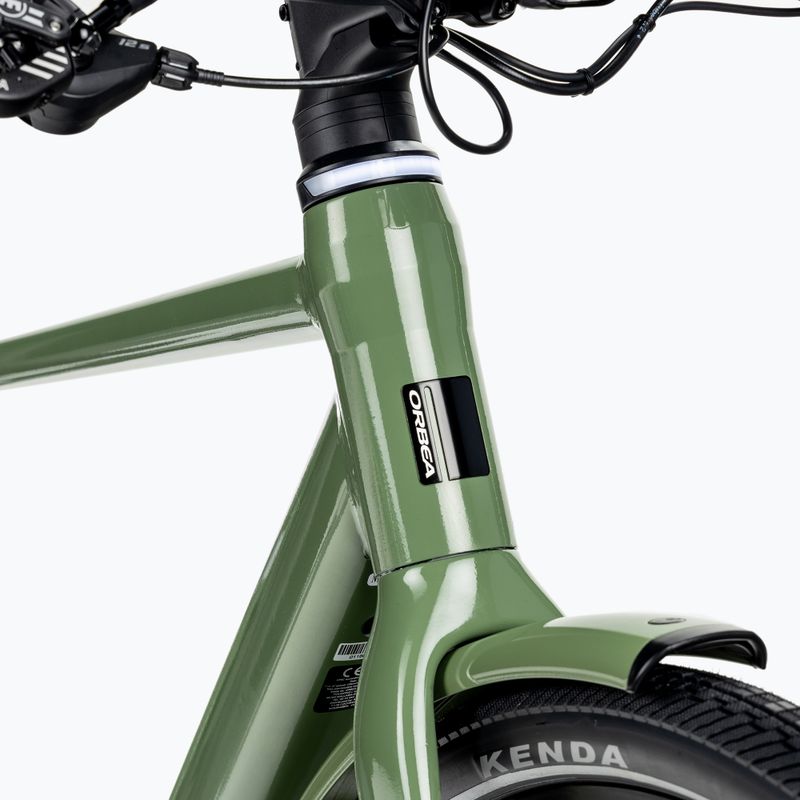

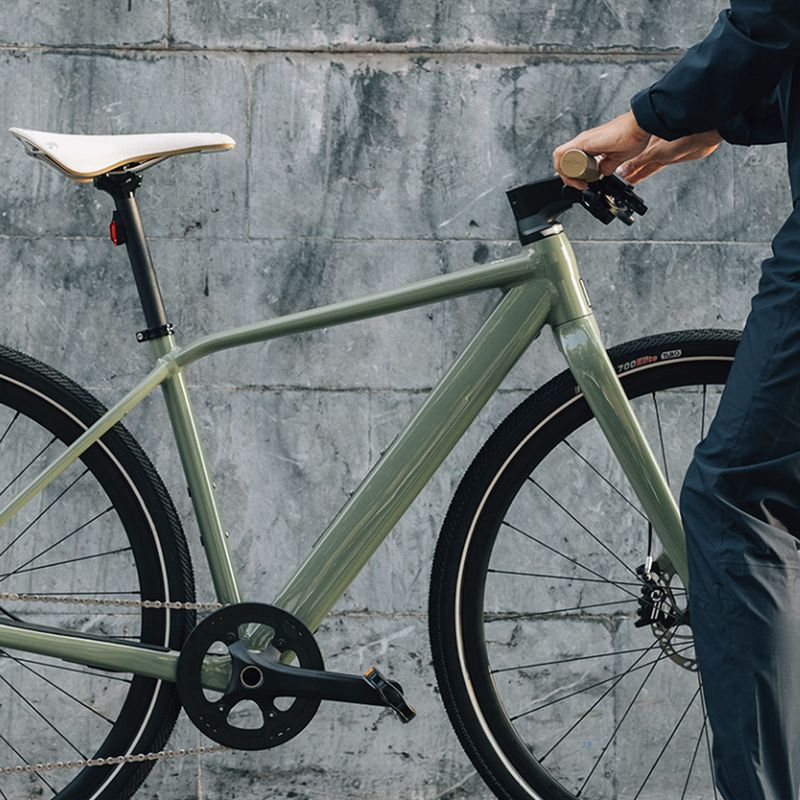

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

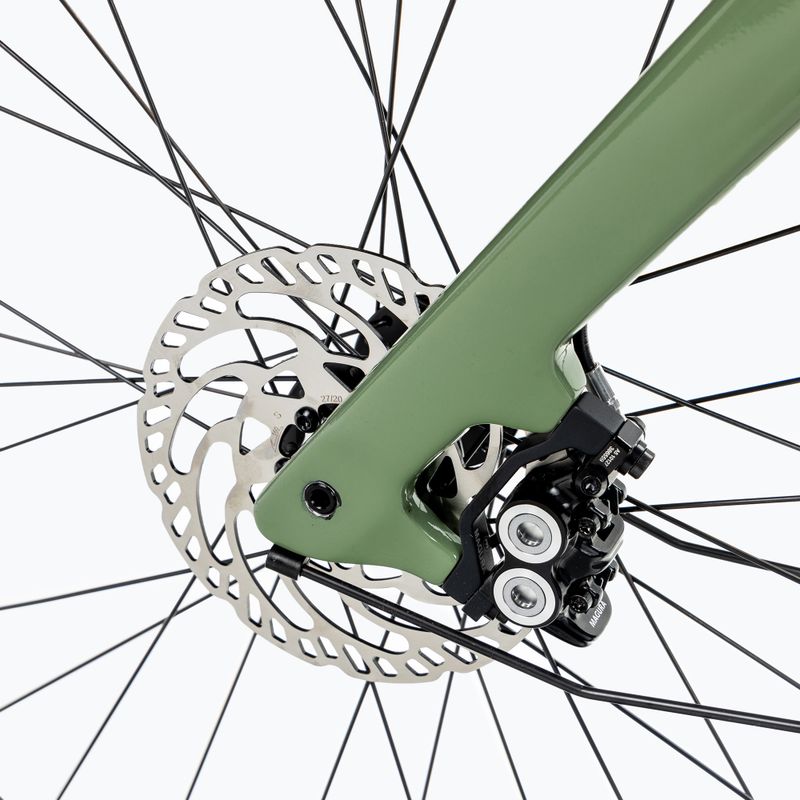

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x12

The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
