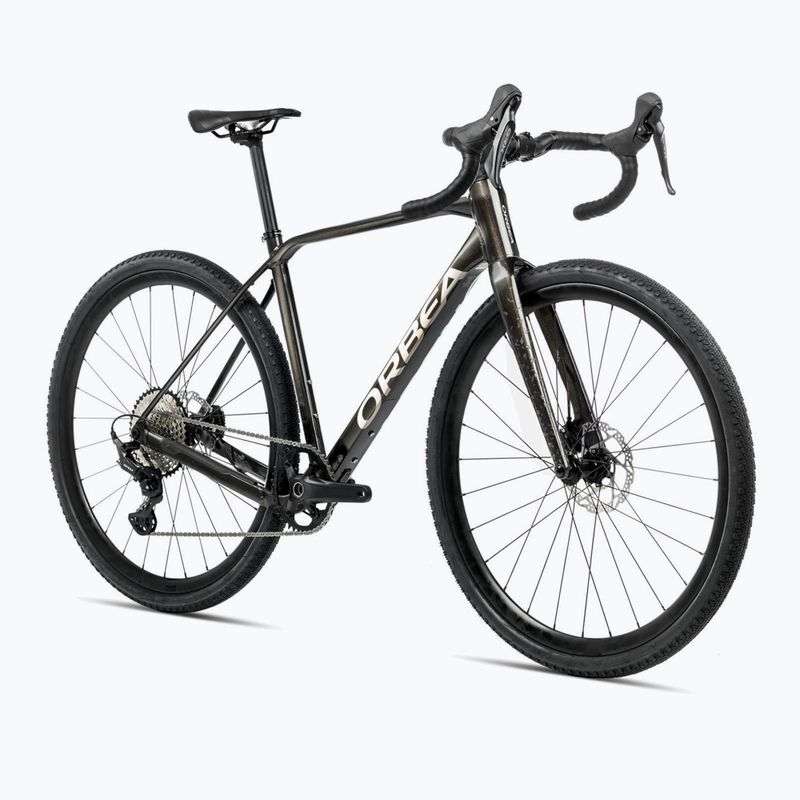

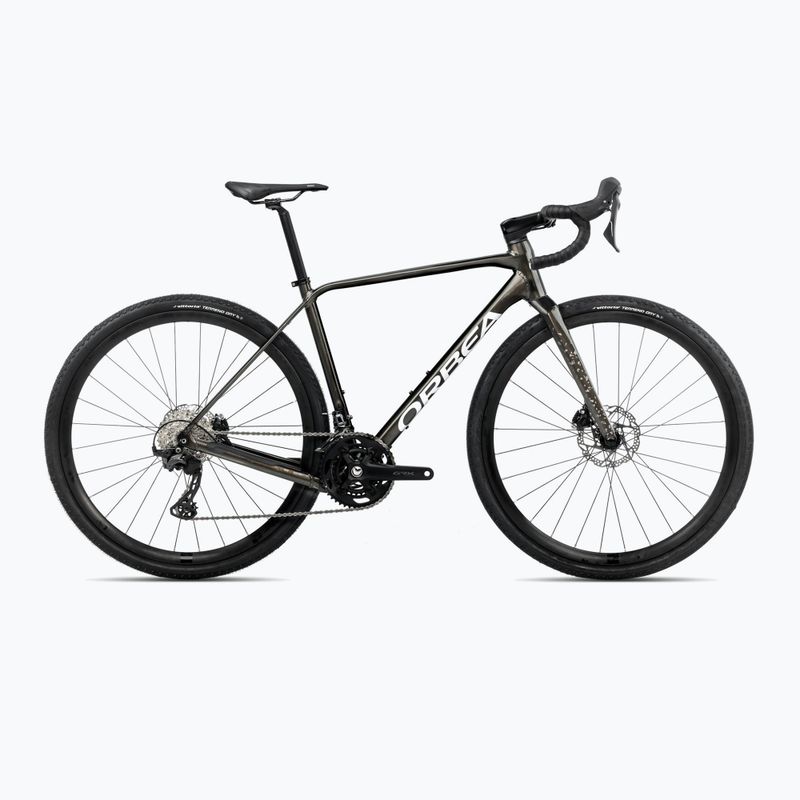

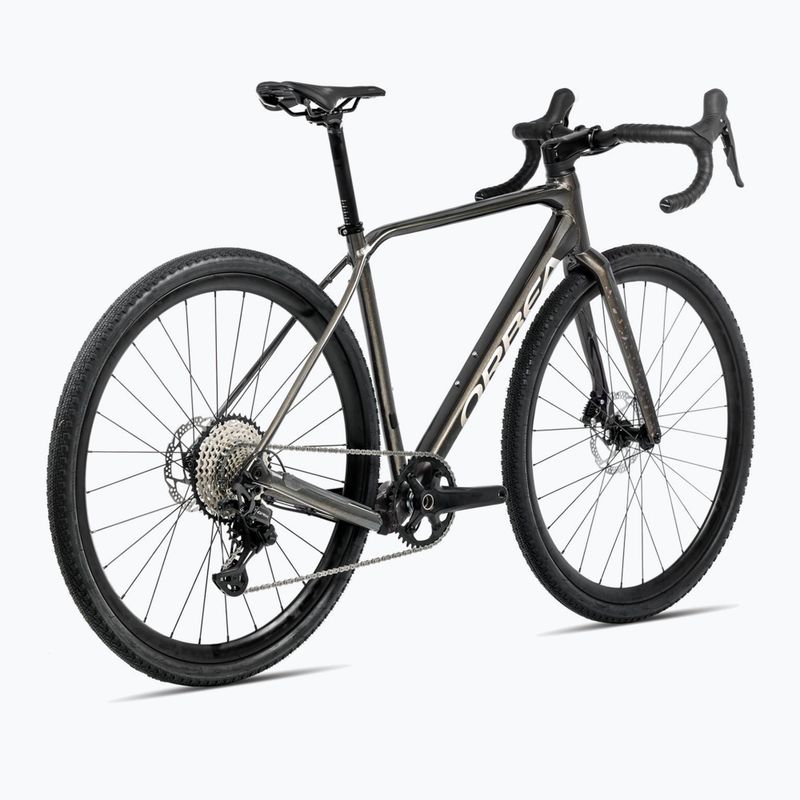

Orbea Terra H30 2025 infinity green/ivory white gravel bike (S14307DG)

Orbea Terra H30 2025 infinity green/ivory white gravel bike is an advanced model designed for off-road enthusiasts, offering exceptional technical specifications. Equipped with 700c Alloy Tubeless wheels with a width of 21C, it provides reliability and comfort while riding in various conditions. Thanks to the use of rigid axles measuring 12x100 mm and 12x142 mm, the bike guarantees stability and precise handling.

Frame and Fork

The Orbea Terra Hydro disc frame, made of hydroformed, triple-butted aluminum, ensures lightness and durability. The design includes a Thru Axle 12 mm x 142 mm rear mount, which increases stiffness and riding precision. The Orbea Terra ICR fork, made entirely of carbon fiber, is compatible with a tapered head tube 1-1/8" - 1.5", which further enhances comfort and responsiveness on rough terrain.

Drivetrain and Gearing

The bike is equipped with a Shimano GRX drivetrain, featuring RX610 shifters and RX820 front and rear derailleurs. With a 2x12 speed system and Shimano GRX RX610 30x46T crankset, the user has a wide range of gears ideal for riding in varied terrain conditions. The Shimano HG710 11-36T cassette supports smooth and precise gear changes, which is essential during dynamic riding.

Brakes and Wheels

This model is equipped with Shimano RX400 hydraulic disc brakes, which provide effective braking in all weather conditions. Vittoria Terreno Dry Gravel 700x38C tires, mounted on 28" wheels, guarantee excellent grip and stability, which is crucial when riding on unpaved surfaces.

Ergonomics and Comfort

The Prologo Akero AGX saddle, 155 mm wide, along with the SP 0.2 carbon seatpost with a diameter of 27.2 mm and 20 mm setback, provide comfort even on long rides. The OC Gravel GR31-R handlebar with a 15 mm rise, 70 mm reach, and 110 mm drop, combined with the OC Road Performance RP22 stem at -5º, allow for an ergonomic position and precise control. The setup is completed by Orbea Eva grips, which improve holding comfort.

Durability and Warranty

The Orbea Terra H30 2025 gravel bike ensures long-lasting reliability thanks to a lifetime warranty on the frame, which reflects the high quality of workmanship and the manufacturer's confidence in their product. It is an excellent choice for demanding cyclists seeking equipment with outstanding technical specifications.
