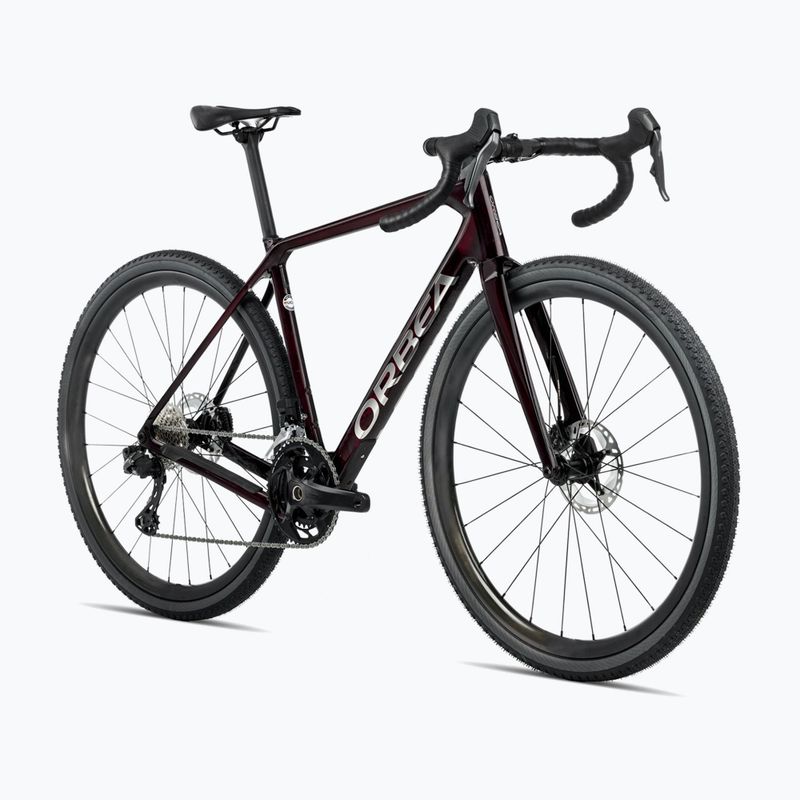

    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view

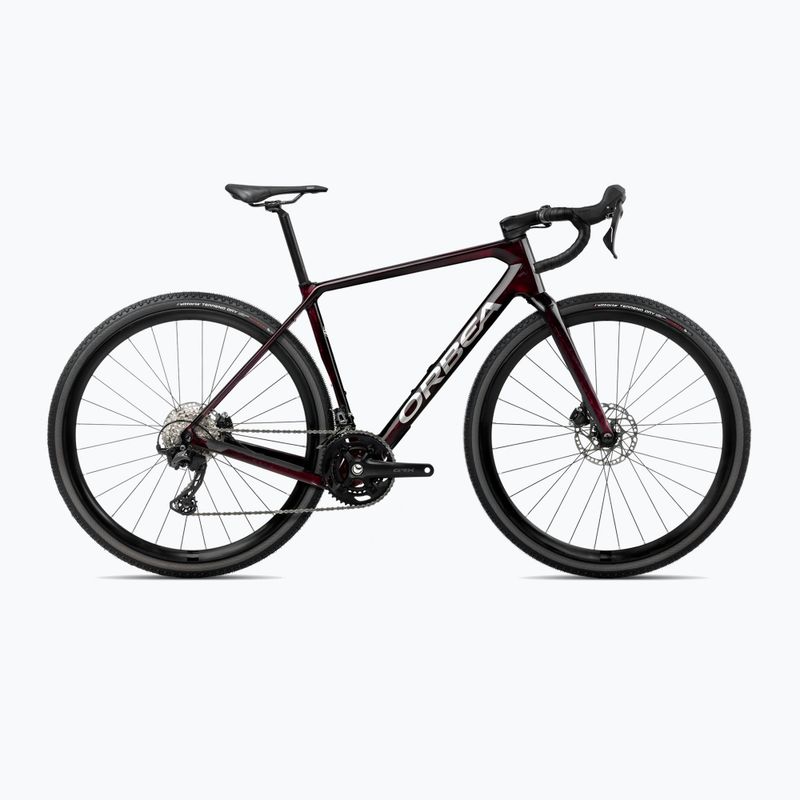

    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view 2

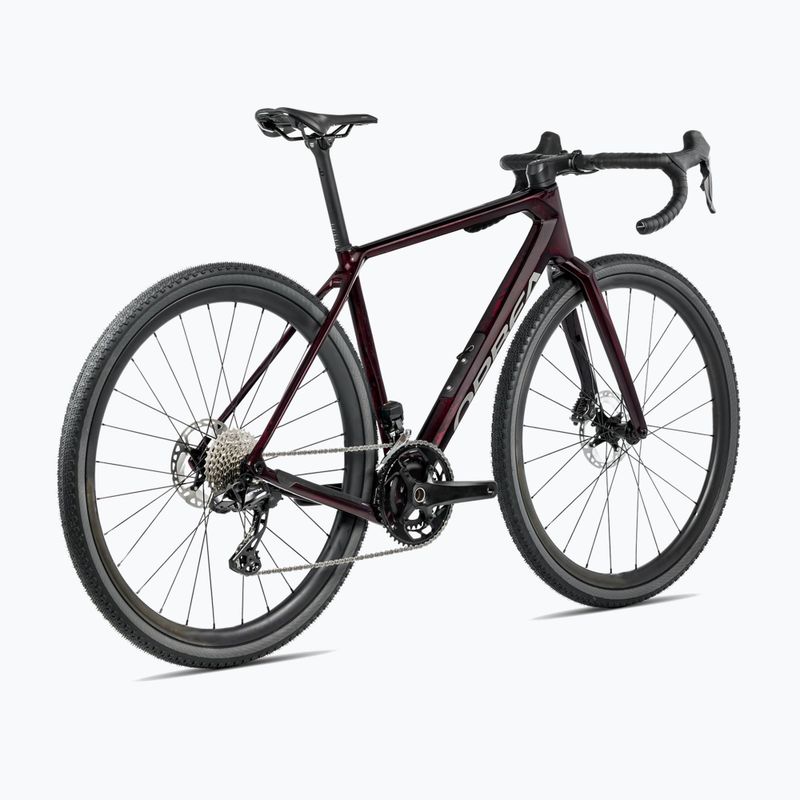

    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view 3
    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view
    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view 2
    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view 3
    Parameters

    Basic data

    Sport Bicycles
    Brand Orbea
    Leading colour Maroon
    Season Year-round
    Model/product code Terra M30 Team S14703CG
    Gender Male, Woman
    Country of origin of the brand Spain
    Code 2000149625

    Frame

    Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1.5", PF30, powermeter compatible
    Frame material Carbon fibre

    Components

    Steering wheel OC Gravel GR31, Reach 70, Drop 110
    Handlebar support OC Road Performance RP22, -5º
    Grips Orbea Anti-Slippery/Shock Proof
    Depreciation No
    Rudders FSA 1-1/2" Integrated Aluminium Cup
    Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
    Saddle Prologo Akero AGX 155 mm
    Bar SP 0.2 Carbon, 27.2mm, Setback 20

    Drive

    Type of derailleur Mechanical
    Derailleurs 2x12
    Number of gears 24
    Front derailleur (model) Shimano GRX RX820
    Rear derailleur (model) Shimano GRX RX820
    Handles Shimano GRX RX610
    Crank mechanism Shimano GRX RX610 30x46t
    Cassette / Freewheel Shimano HG710 11-36t 12-Speed
    Chain Shimano M6100

    Brakes

    Brakes (model) Shimano RX400 Hydraulic disc
    Brake type Hydraulic discs

    Wheels

    Wheel size 28"
    Wheels Alloy, Tubeless, 700c, 21c
    Tyres Vittoria Terreno Dry CX-gravel G2.0 TNT 700x38c
    Axle type Rigid axles 12x100 mm / 12x142 mm
    Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid Inner Threaded - rear hub
    Tubeless ready wheels Yes

    Warnings and producer's data

    Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
    Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

    Other data

    Service label Bike assembly service available
    Feedback
    Feedback

    There are no reviews yet, be the first!

    Review this product

    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view

    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view

    Overall rating
    Please enter the order number under which you purchased this product at Sportano.

    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view New

    No opinion

    Bike assembly service available

    Color
    Gravel bike Orbea Terra M30 Team 2025 wine red carbon view
    Orbea Terra M30 Team 2025 gravel bike cosmic carbon view/metallic olive green
    Size Sizes table
    Choose an Option...

    Choose an Option

    Sizes table

      Below you will find information that will help you choose the right size when purchasing the Terra M30 bike from the Orbea brand.

      Size XS S M L XL XXL
      Height (cm) 155-166 167-172 173-179 180-185 186-191 192-207
      A - Seat tube (mm) 405 438 471 504 537 570
      B - Horizontal pipe (mm) 526 539 558 570 590 603
      C - Steerer tube (mm) 110 131 152 178 199 220
      D - Rear triangle (mm) 420 420 420 420 420 420
      E - Support height (mm) 263/278 263/278 263/278 265/280 265/280 265/280
      F - Support lowering (mm) 78 78 78 76 76 76
      G - Wheelbase (mm) 1009 1019 1029 1044 1053 1062
      H - Head angle 70º 70.5º 71º 71º 71.5º 72º
      I - Seat tube angle (°) 74º 74º 73.5º 73.5º 73º 73º
      J - Crossover (mm) 713/727 746/755 768/783 798/813 825/840 853/868
      K - Reach (mm) 375 382 389 395 402 409
      L - Stack (mm) 526 548 570 592 614 636
      M - Fork (mm) 390 390 390 390 390 390
      You save €240.00 €3,579.00
      €3,339.00
