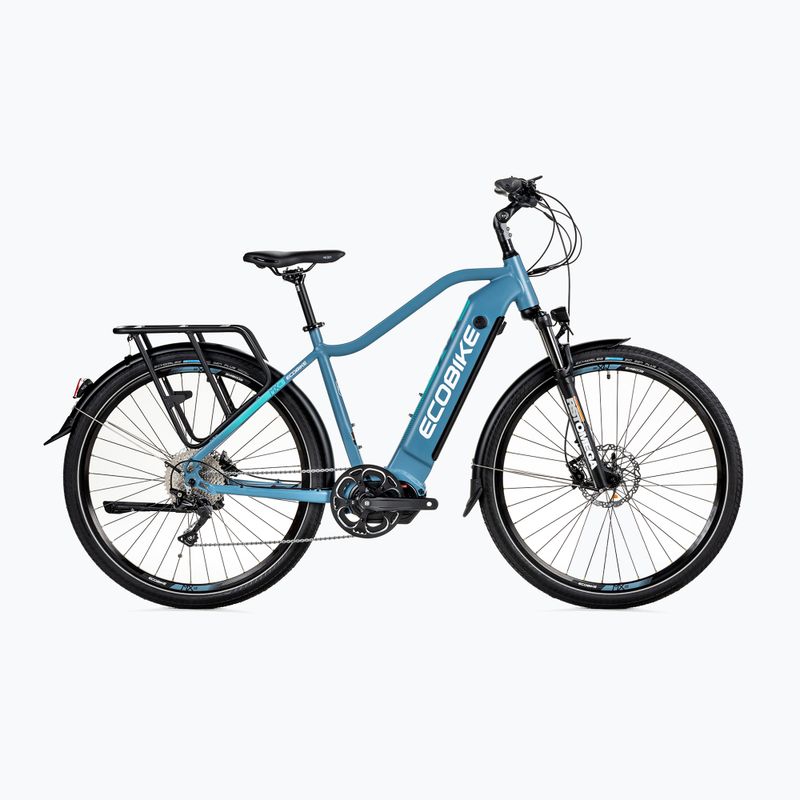

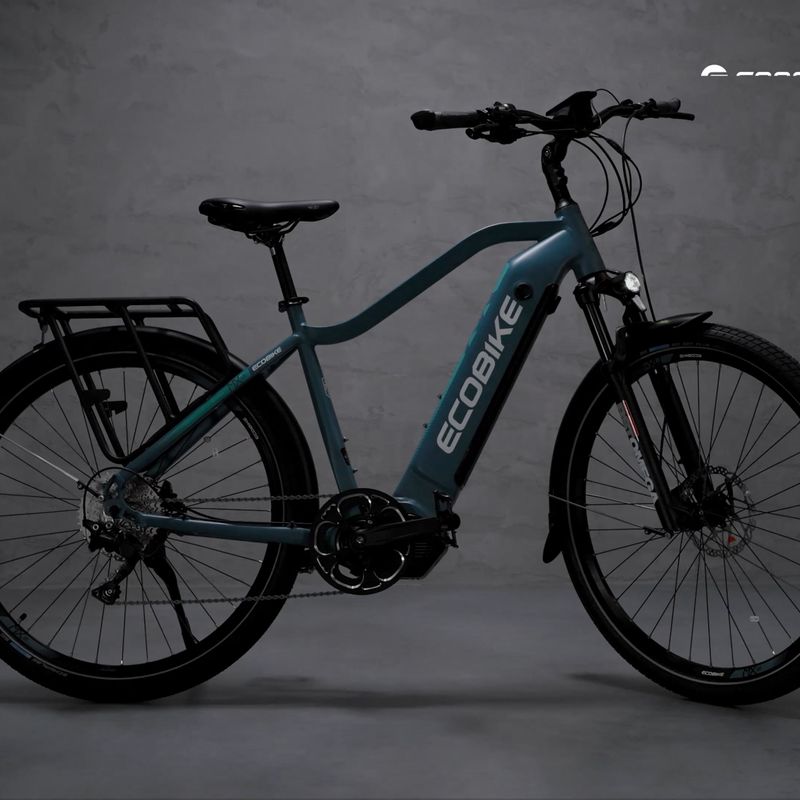

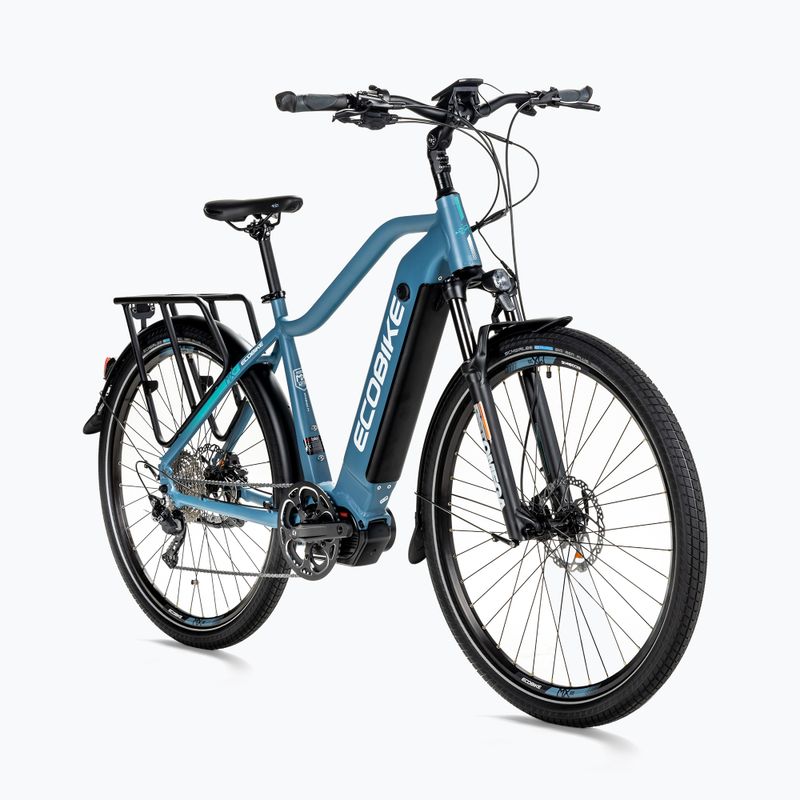

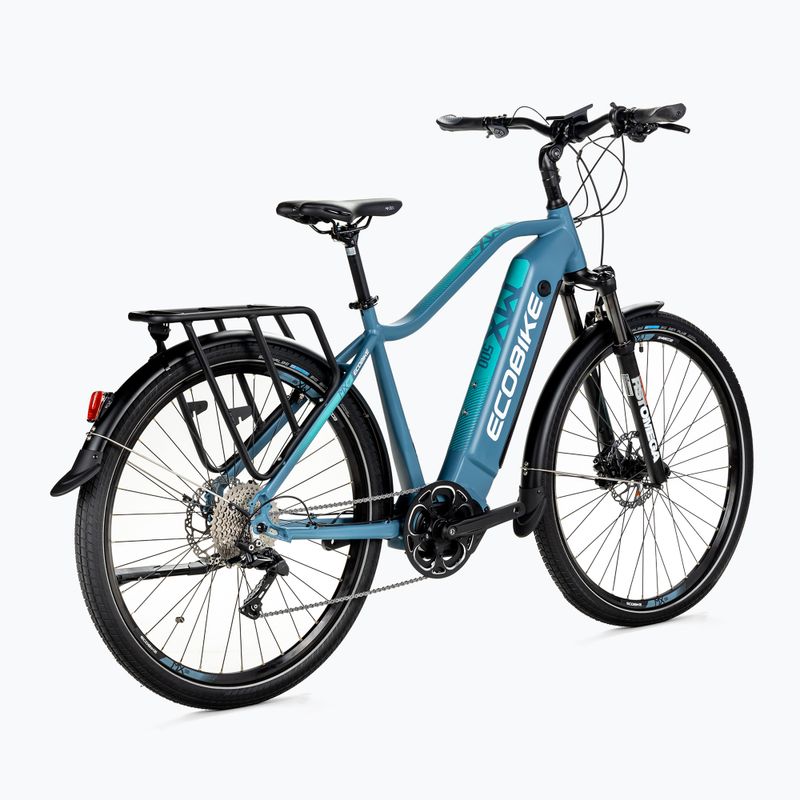

EcoBike MX500 LG electric bike blue 1010309

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code MX500 17,5Ah LG 1010309

Leading colour Blue

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Wheel size 28"

Frame of hydroformed aluminium

Derailleurs 1x10

Sport Bicycles

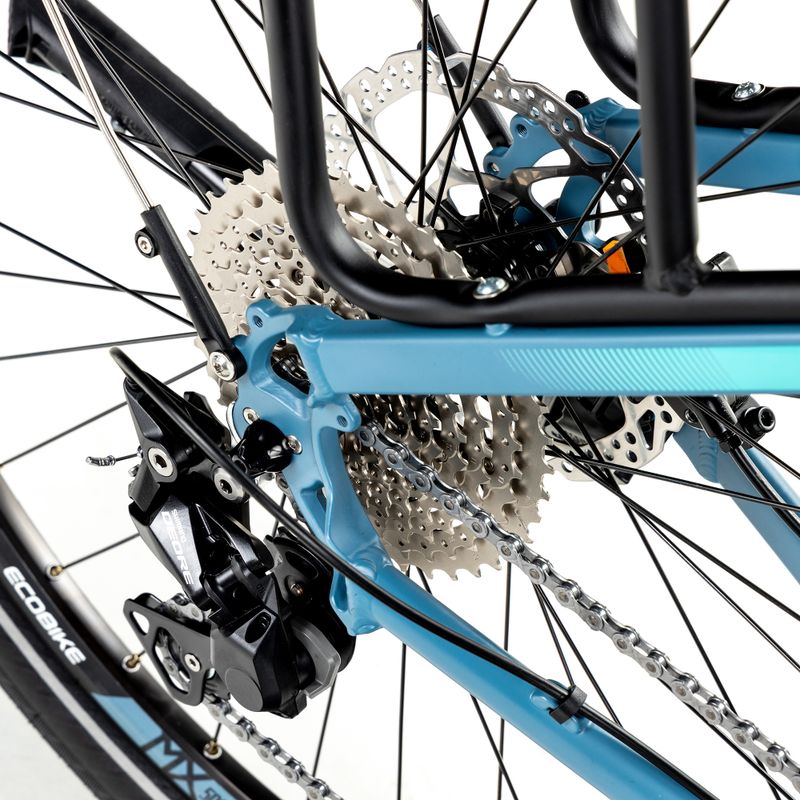

Cassette / Freewheel Shimano CS-M4100-10, DEORE, 10-SPEED 11-42T

Rear derailleur (model) Shimano RD-M6000, DEORE, GS 10-SPEED

Handles Shimano SL-M6000-R, DEORE

Depreciation Front

Battery location In the frame

Handlebar material Aluminium

Brakes (model) Shimano BL-MT401

Purpose Trekking

Maximum range 150 km

Chain KMC X10E 11x128 / 122 mm, KMC PE10SEP22 e10 Sport EPT x122L

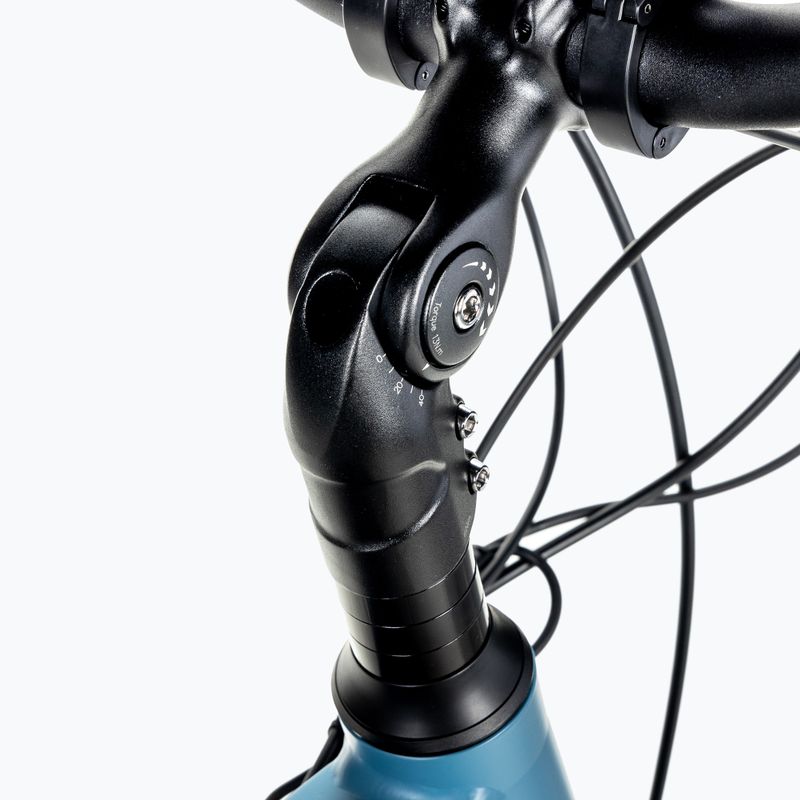

Handlebar support PROMAX MA－595 (28,6 mm x 31,8 mm x 90 mm)

Bar Zoom SP-C255 (27,2 mm x 350 mm)

Tyres Schwalbe 28 x 2.15 BIG BEN PLUS

Frame material Aluminium

Fork RST Omega TNL Tapered

Charger 100-240V/54.6V 3A Type D

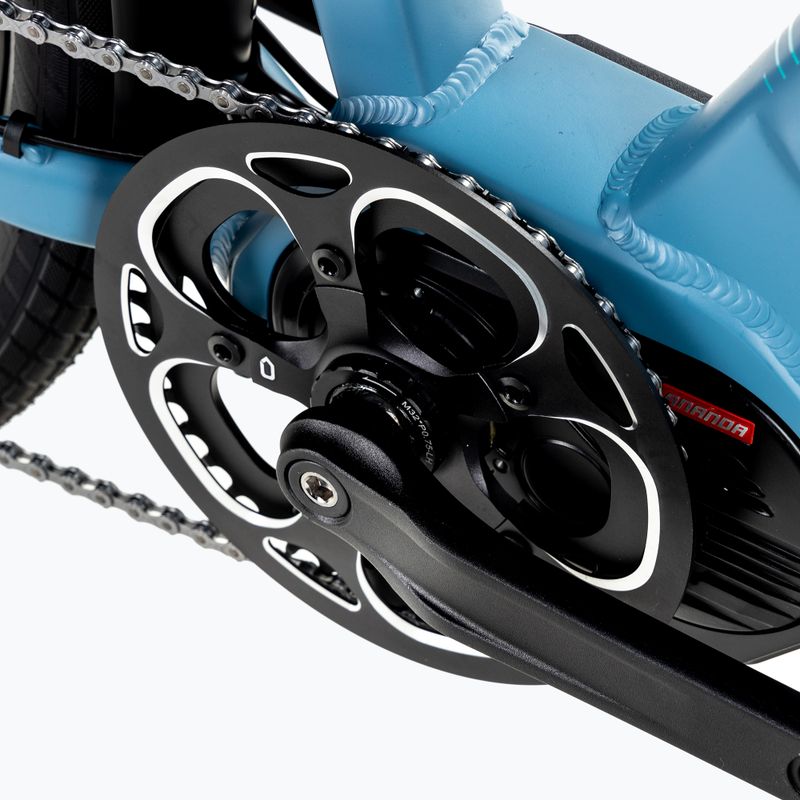

Engine model Ananda

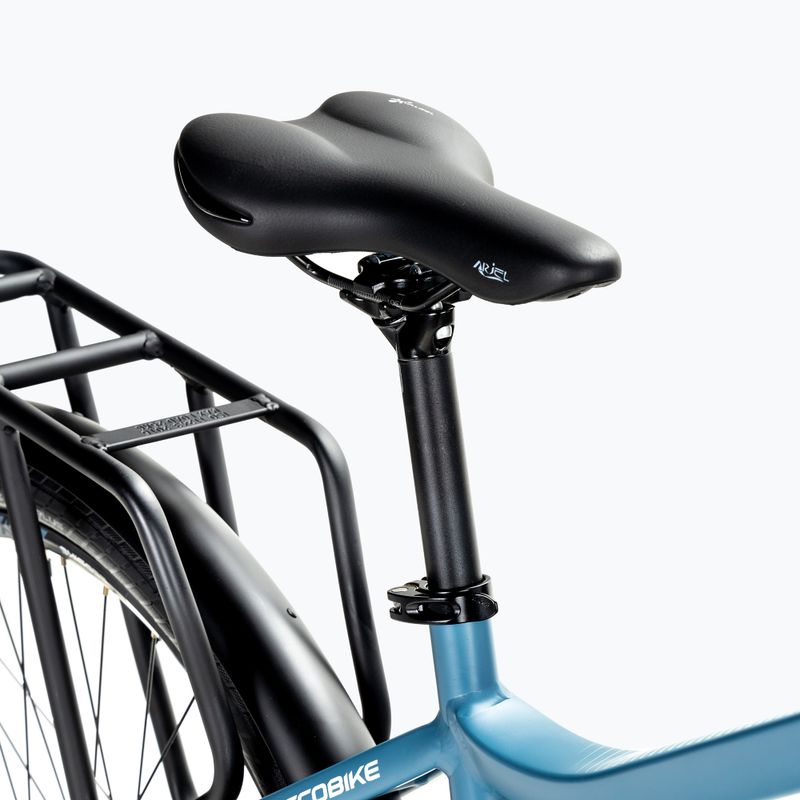

Saddle SunTour ARIEL-A058H

Weight of bike (estimated) 29 kg

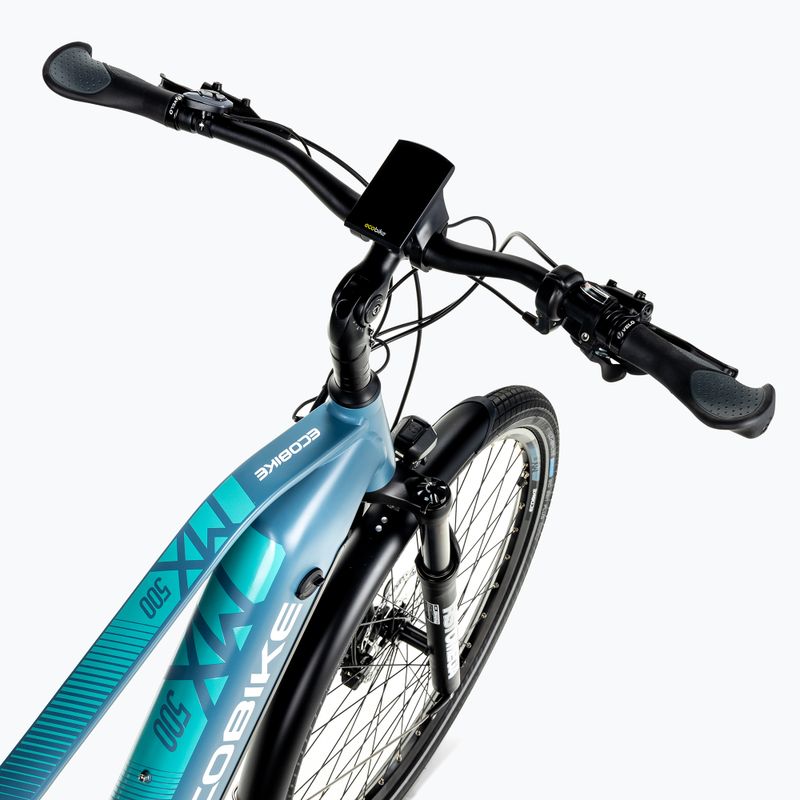

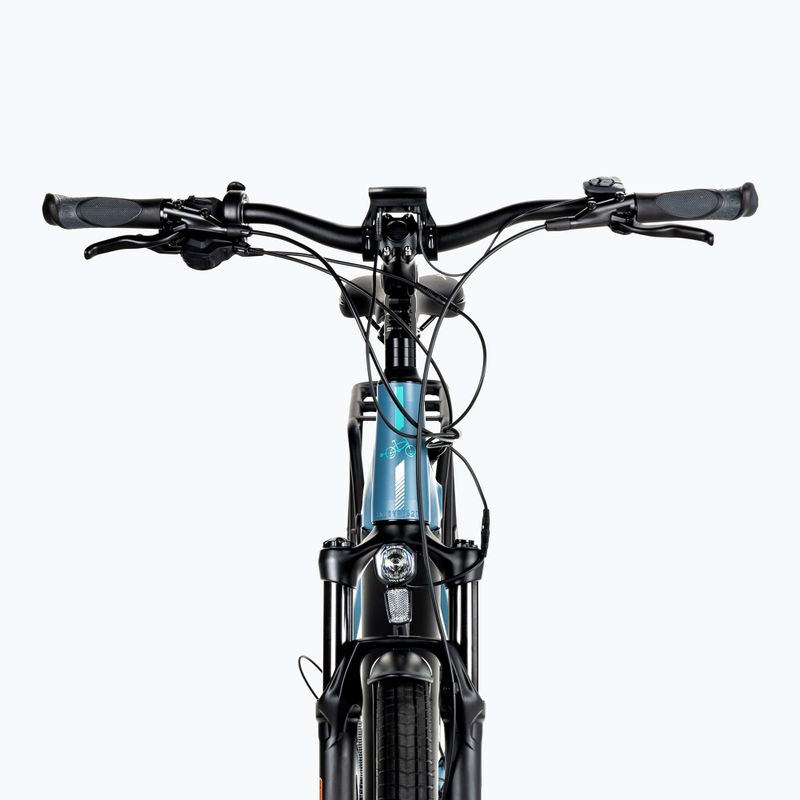

Steering wheel Promax HB-3188 (22,2 mm x 31,8 mm x 700 mm)

Maximum engine power 960 W

Brake type Hydraulic discs

Number of gears 10

Wheels Reinforced spokes and Remerx rims

Battery capacity 17,5Ah

Stan złożenia roweru Bike adjusted and pre-assembled

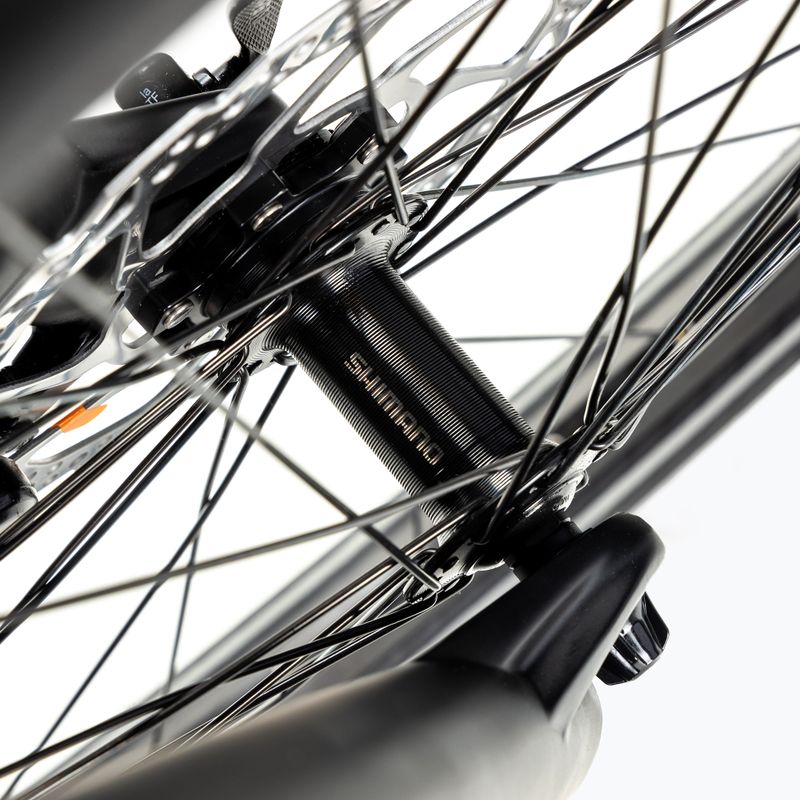

Hubs Shimano HB-TX505,36H CENTER LOCK - front hub, Shimano FH-TX505-8 CENTER LOCK - rear hub

Maximum torque 136 Nm

Battery type Lithium-ion

Maximum speed 50 km/h ( assistance limited to 25 km/h in the settings)

Maximum user weight 125 kg

EcoBike MX500 LG electric bike blue 1010309 2

EcoBike MX500 LG electric bike blue 1010309

Product description

Advantages

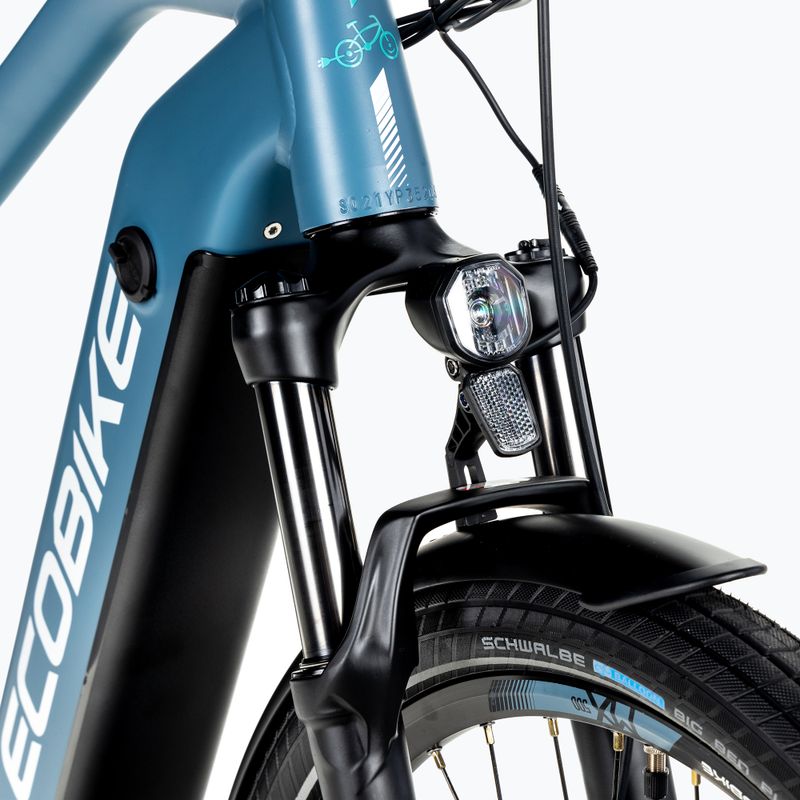

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

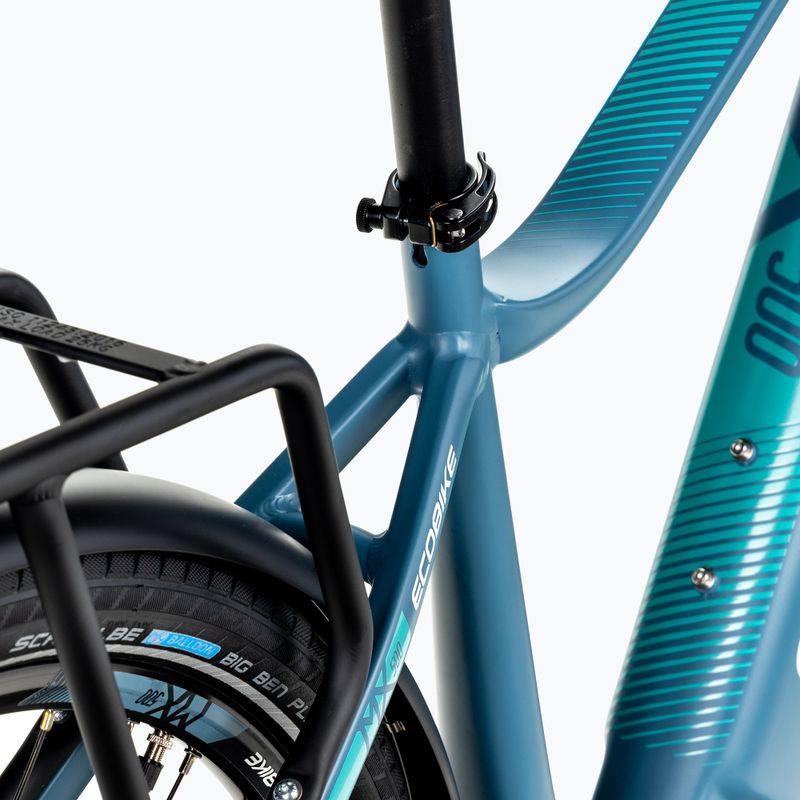

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

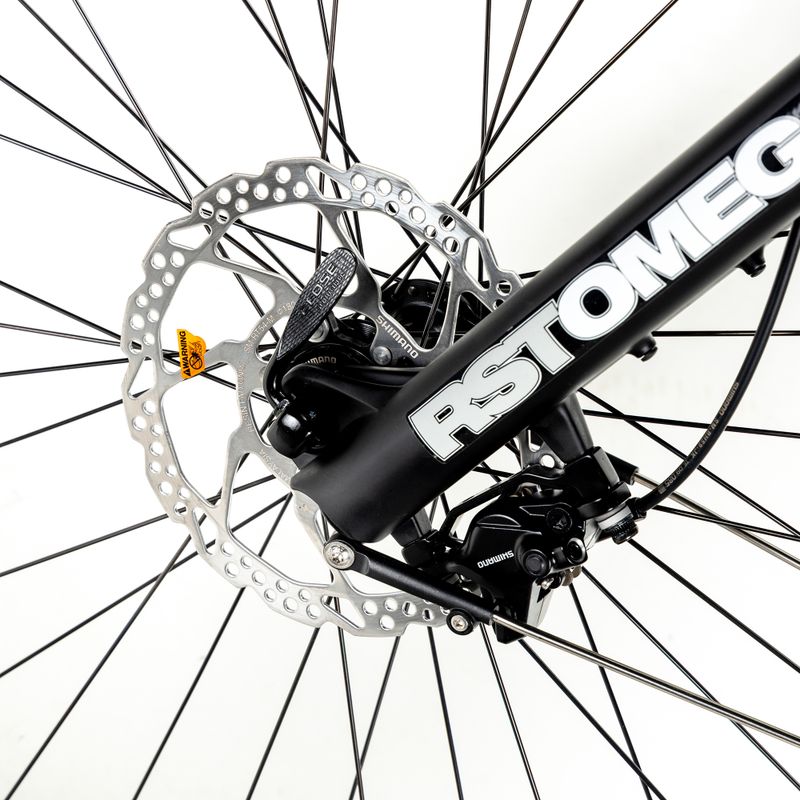

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
