Frame
Frame material Aluminium
Components
Steering wheel ZOOM, 6° Backsweep, 680 mm
Handlebar width 680 mm
Handlebar material Aluminium
Handlebar support ZOOM 1-1/8", 60 mm, +15°
Handlebar stem material Aluminium
Grips PVC 125 mm
Depreciation Front
Rudders Semi-integrated FP-H801S, machine bearings
Fork ZOOM 24" 40mm
Saddle DDK Ichnos RACING, DDK-2005V, Memory Foam
Bar ZOOM 27.2 mm
Drive
Derailleurs 1x8
Number of gears 8
Rear derailleur (model) SHIMANO TY RD-TX800
Handles Shimano REVO
Suport BSA 68 mm, machine bearings
Crank mechanism GS 140 mm, 32 T
Cassette / Freewheel SHIMANO CS-HG200-8 (12-32T)
Chain KMC Z8.3
Brakes
Brakes (model) Alpina VBR-993A
Brake type Mechanical jaws
Wheels
Wheel size 24"
Wheels Aluminium, double-chamber 32H
Tyres Kenda AMRAK 24x1.75"
Hubs Aluminium, machine bearings
spokes 14 G
Additional information
Bell Yes
Pedals included Yes
Side wheels No
Weight of bike (estimated) 11,7 kg
Folding condition of the bike Bicycle for self-assembly
Other data
Sport Bicycles
Brand ATTABO
Leading colour Purple
Season Year-round
Model/product code JR 24 ATB-JR24-V
Gender Boy, Girl
Country of origin of the brand Poland
Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Code 2000104167

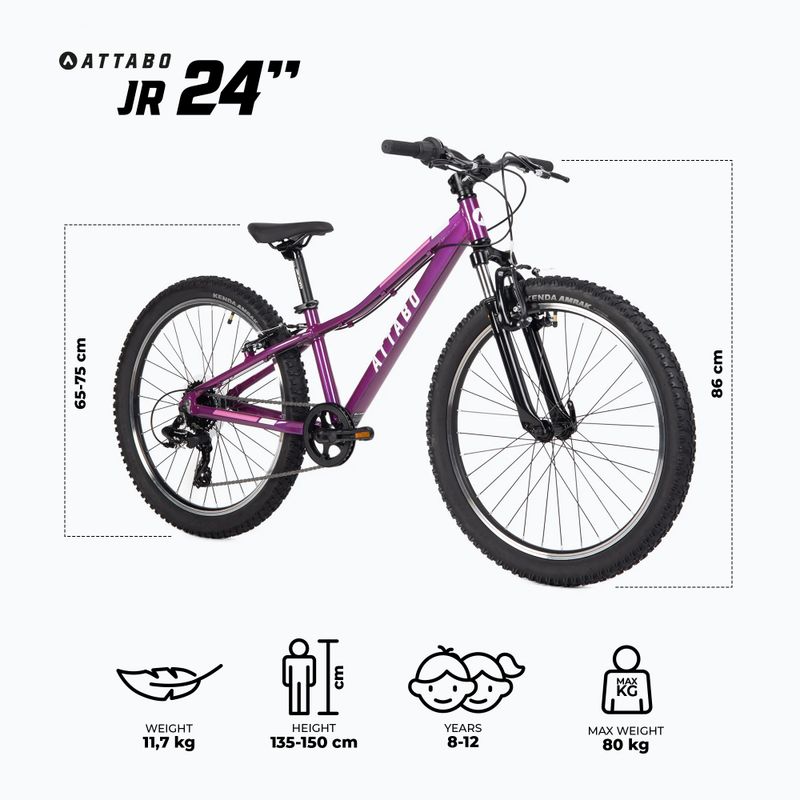

Below you will find information that will help you choose the right size when buying a children's MTB 24 JR bike from ATTABO.
| Frame size | 12 |
| Wheel size | 24 |
| Height (cm) | 135-150 |
| Weight (kg) | 11,7 |
| A | 70 |
| B Height of handlebars (mm) | 860 |
| C Length of top tube measured horizontally (mm) | 510 |
| D Wheels base (mm) | 980 |
| E Seat tube angle (°) | 72 |
| F Section height (mm) | 570 |
| G Saddle height range (mm) | 650-750 |
| Crank arm length (mm) | 140 |
Advantages
Front cushioning
This junior bike features front suspension, which significantly improves comfort when riding over rough terrain. In addition, the cushioning provides additional safety and effectively reduces the impact force during an accident.
Aluminium frame
The junior bike has been designed with attention to every element. Its frame is made of durable aluminium, which stands out for its low weight. In addition, this material is characterised by its strength and resistance to deformation.
V-brake type
This bike is equipped with reliable, universal V-Brake brakes, which are used on the vast majority of bikes, as they are extremely durable and easy to install and maintain.
24" wheels
The 24-inch wheels used on this model of the bike ensure low weight and high strength and agility. With this size, the ride will become much more comfortable and enjoyable.
