Superior X-ROAD 9.3 GF matte carbon/white road bike (801.2024.28038)

Frame

Frame Carbon X-Road Race Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB865, SH dropout, Thru Axle 12x142 mm

Frame material Carbon fibre

Components

Steering wheel ONE Alloy, X-Race Aero, 31.8mm, Reach 70mm, Drop 127mm, Backsweep 6°

Handlebar support ONE Race ICR, Alloy, 31,8mm, -7°

Fork X-ROAD carbon fork

Fork material Carbon fibre

Saddle Selle Royal Gravel

Bar ONE Aero Carbon

Drive

Type of derailleur Mechanical

Derailleurs 2x12

Number of gears 24

Front derailleur (model) Shimano 105 FD-R7100, Down Swing, Down Pull, Brazed-On Type

Rear derailleur (model) Shimano 105 RD-R7100, Shadow Design

Handles Shimano 105 R7120

Suport Shimano BB-RS500PB, PressFit, shell 41x86.5mm

Crank mechanism Shimano 105 FC-R7100, Hollowtech II (50/34T)

Cassette / Freewheel Shimano 105 R7100 11-34t 12-Speed

Chain Shimano Deore CN-M6100

Brakes

Brakes (model) Shimano 105 R7120 Hydraulic Disc

Brake type Hydraulic discs

Brake discs 140 mm front / 140 mm rear

Wheels

Wheel size 28"

Wheels DT Swiss C 1800 SPLINE®, CL, Tubeless Ready

Tyres Schwalbe Pro One Evo, V-Guard, TL-Easy, 30-622, ADDIX Race

Axle type 142 x 12 mm, 100 x 12 mm

Tubeless ready wheels Yes

Tubeless ready tyres Yes

Additional information

Pedals included No

Weight of bike (estimated) 8,5 kg

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Superior

Leading colour Black

Season Year-round

Model/product code X-ROAD 9.3 GF 801.2024.28038

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Type of Product Endurance

Code 2000089676

Size	52 (S)	54 (M)	56 (L)	58 (XL)
Height (cm)	170-180	181-185	186-190	191-200
A - Seat tube (mm)	462	482	502	522
B - Horizontal pipe (mm)	532	545	569	590,6
C - Kąt siodełka (°)	73,8	73,5	73	73
D - Head angle (°)	71	71,5	72	72
F - Wheel base (mm)	990	996	1010	1032,6
G - Rura sterowa (mm)	120	140	160	180
R - Reach (mm)	376	380	392	408
S - Stack (mm)	537	557	578	597,2
BBD - Support lowering (mm)	70	70	70	70
RC (mm)	406	406	406	406

Advantages

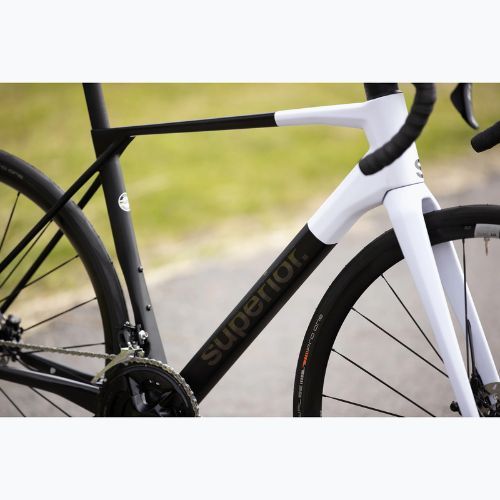

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

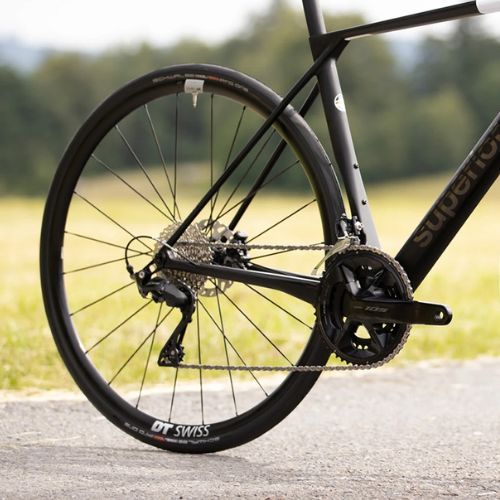

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Tubeless ready tyres

Thanks to the Tubeless Ready technology, the tyres are robust and puncture-resistant and the problem of so-called Snake Bite, i.e. puncturing the inner tube by pinching it against the rim, disappears. The system also allows lower pressures to be used.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
