Orbea Oiz M-Pro is an advanced mountain bike, combining a lightweight frame with innovative technology. Ideal for demanding trails, it offers excellent control and comfort. Equipped with top-quality components, it ensures reliability and durability.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Maroon
Model/product code Oiz M-Pro R24107CJ
Code 2000103869

Frame

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Frame material Carbon fibre

Components

Steering wheel OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Handlebar support OC Mountain Performance MP10 Alu SL, -10º
Depreciation Full
Rudders Alloy 1-1/2", Black Oxidated Bearing
Fork Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push to Lock QR15x110 Kashima
Damper Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune190x45mm
Saddle Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm
Bar Fox Transfer SL Performance Dropper 31.6

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus
Handles Shimano XT M8100 I-Spec EV
Crank mechanism Shimano XT M8120 32t
Cassette / Freewheel Shimano CS-M8100 10-51t 12-Speed
Chain Shimano M8100 12s

Brakes

Brakes (model) Shimano XT M8100 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels OQUO Mountain Performance MP30TEAM Carbon
Tyres Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea Oiz M-Pro 2024 wine red carbon view/titan mountain bike (R24107CJ)

Oiz M-Pro 2024 from Orbea is a bike that makes no compromises and gives you full control over your ride. It’s not just a mountain or trail bike; it’s a true XC race machine with 120 mm of travel, impressing both in looks and performance. Thanks to modern geometry and advanced suspension, specifically designed around 120 mm of travel, the Oiz delivers extra fun on every ride without sacrificing weight or efficiency.

The frame of the Oiz M-Pro 2024 model is made from OMR carbon, ensuring exceptional lightness and durability – it is one of the lightest in the XC class. The design focuses on eliminating unnecessary elements, leaving only those that improve ride quality. This allows the Oiz M-Pro to achieve its remarkable performance and low weight without compromise. The thoughtful design and lightweight frame make the Oiz M-Pro 2024 offer incredible speed and efficiency, perfect for demanding riders. Thanks to the use of BSA, SIC, UFO, and I-line shock technologies, the frame is optimized for XC racing, offering maximum performance and control.

  • BSA: Threaded bottom brackets that are easy to maintain and replace, increasing durability and functionality.
  • SIC: Enables aesthetic and efficient internal cable routing, which not only improves the bike’s appearance but also protects cables from damage and dirt.
  • UFO: Technology that reduces frame weight by using flexible elements in the rear section, improving ride comfort without adding mass.
  • I-line shock: Suspension system integrated into the frame that optimizes suspension kinematics and geometry, ensuring smooth and efficient damping performance.

Fox 34 Float SC Factory fork with 120 mm travel is an advanced component. Thanks to the FIT4 Remote-Adjust Push to Lock technology, this fork offers easy and quick damping adjustment to terrain conditions via remote lockout, increasing pedaling efficiency on flat sections and in challenging conditions. One of the key advantages of the fork is the use of the Kashima coating, which minimizes friction, resulting in exceptionally smooth suspension action. This coating, known for its distinctive golden color, is also more resistant to wear, ensuring long-lasting and reliable performance.

Fox Float SL Damper Factory 120 mm is a component distinguished by advanced technology and exceptional performance. Thanks to the Remote Push-Lock system, the user can easily lock the damper from the handlebar. It also features the Kashima coating, reducing internal friction. Evol technology (Extra Volume) provides better suspension response to small bumps and increases riding comfort. The Fox Float SL Factory also features precise tuning (custom tune), meaning it has been specially designed and tailored to the needs of XC riders.

Maxxis Rekon Race tires, 2.40" wide with WT 120 TPI Exo TLR technology, provide excellent grip and durability. These tires are ideal for fast riding on various surfaces, while also offering high puncture resistance, which increases their durability and longevity.

Advantages

Carbon frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Orbea Oiz M-Pro 2024 wine red carbon view/titan mountain bike
UVEX bike helmet Viva 3 black S4109840115
Size
52-57 cm
56-62 cm
Choose an Option...

Choose an Option

  • 52-57 cm €66.99 €52.99
  • 56-62 cm €66.99 €52.99
Add to Wish List
CamelBak Podium Chill bicycle bottle 710 ml black
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €19.99 €17.99
Add to Wish List
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €23.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99 €38.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

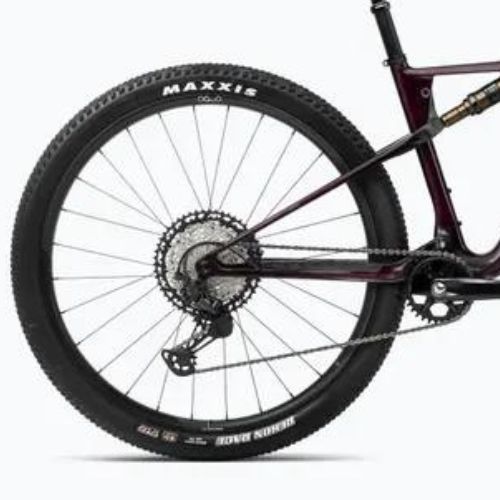

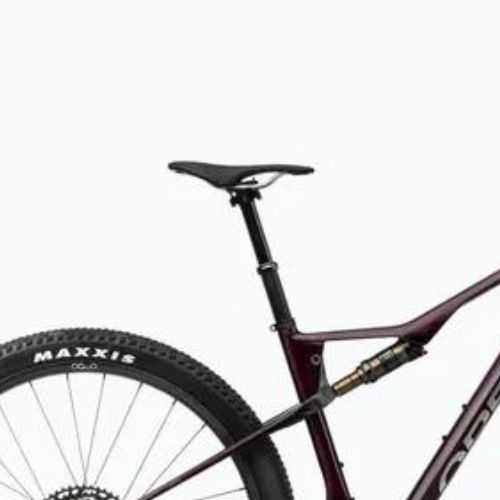

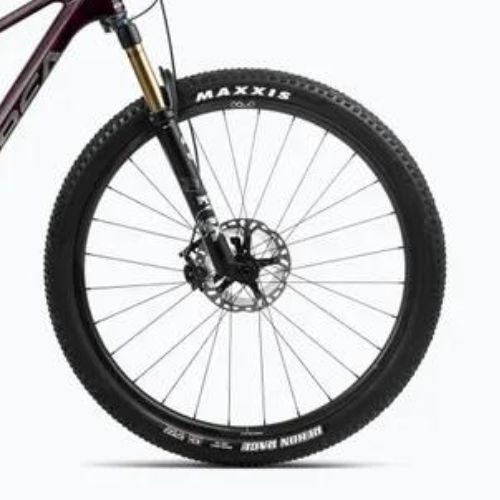

Orbea Oiz M-Pro 2024 wine red carbon view/titan mountain bike

Orbea Oiz M-Pro 2024 wine red carbon view/titan mountain bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Oiz M-Pro 2024 wine red carbon view/titan mountain bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when purchasing the Oiz M-Pro 2024 bike by Orbea.

    Size S M L XL
    Height (cm) 155-170 165-180 178-190 185-198
    A - Seat tube (mm) 405 432 460 510
    B - Horizontal pipe (mm) 575 598 623 650
    C - Steerer tube (mm) 90 90 100 115
    D - Rear triangle (mm) 432 432 432 432
    E - Support height (mm) 333 333 333 333
    F - Support lowering (mm) 42 42 42 42
    G - Wheelbase (mm) 1138 1163 1189 1219
    H - Head angle 67 67 67 67
    I - Seat tube angle (°) 76,5 76,5 76,5 76,5
    J - Crossover (mm) 731 741 741 750
    K - Reach (mm) 425 450 472 496
    L - Stack (mm) 596 596 606 619
    M - Fork (mm) 531 531 531 531
