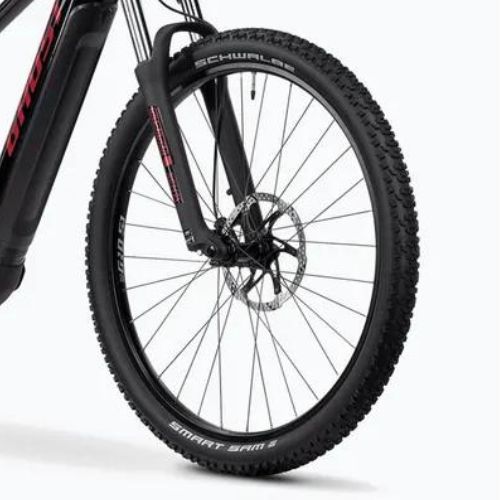

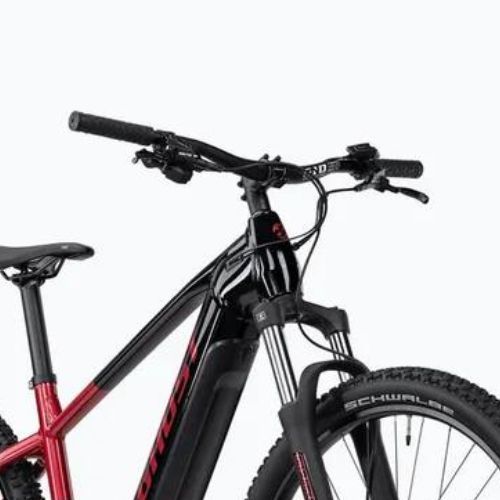

Ghost E-Teru Universal High 625Wh black/metallic rust red glossy electric bike (24ET1004)

Frame

Frame E-TERU AL

Frame material Aluminium

Components

Steering wheel Ground Fiftyone Dia. 31.8 mm 720/20 (S) 740/27 (M-XXL)

Handlebar support Ground Fiftyone Dia. 31.8 mm

Depreciation Front

Rudders Feimin H856 + Acros Blocklock

Fork SR Suntour XCM34 Boost DS 120 mm

Saddle Selle Royal Vivo

Bar Ghost 34.9 mm

Drive

Derailleurs 1x10

Number of gears 10

Rear derailleur (model) Shimano CUES RD-U6000 10-S

Handles Shimano CUES SL-U6000-10

Crank mechanism Miranda Virage 38T

Cassette / Freewheel Shimano CUES CS-LG300-10 (11-48T)

Chain Shimano CN-LG500

Brakes

Brakes (model) Shimano BR-MT420

Brake type Hydraulic discs

Brake discs 180 mm / 180 mm

Wheels

Wheel size 29"

Wheels Schürmann Yak Disc 25

Tyres Schwalbe Smart Sam 2.35

Hubs Shimano HB-TC500-15-B 15x110 mm, Shimano FH-TC500-HM-B 12x148 mm

Additional information

Pedals included Yes

Folding condition of the bike Bike adjusted and pre-assembled

Warnings and producer's data

Producer 95652 Waldsassen, Niemcy | [email protected]

Other data

Sport Bicycles

Brand GHOST

Leading colour Black

Season Year-round

Model/product code E-Teru Universal High 24ET1004

Purpose MTB

Gender Male, Woman

Country of origin of the brand Germany

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Code 2000103231

Engine model BOSCH Performance Line CX

Engine location Central

Engine power 250 W

Battery capacity 625 Wh

Charger Bosch Charger 4 Ah

Size	M	L
Height (cm)	170-179	177-187
Seattube (mm)	450	500
Headtube (mm)	620	635
Seattube (mm)	140	155
Chainstay (mm)	465	465
BB Drop (mm)	60	60
Wheelbase (mm)	1181	1198
	68	68
Headtube angle	74	74
Reach (mm)	432	443
Stack (mm)	656	670

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

29" wheels

The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
