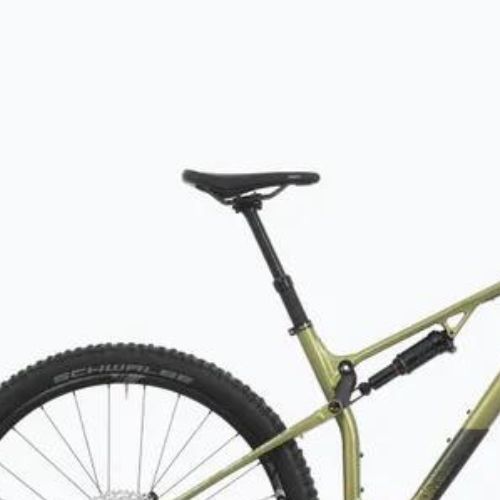

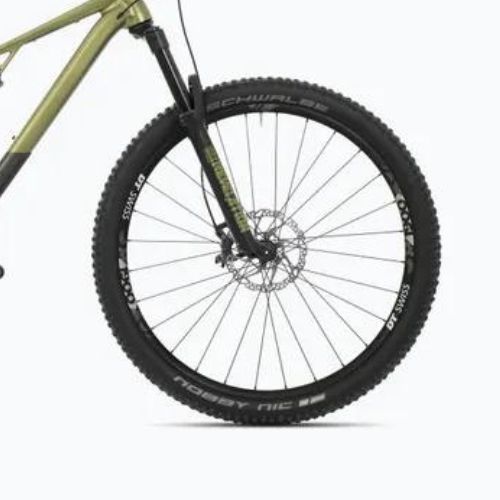

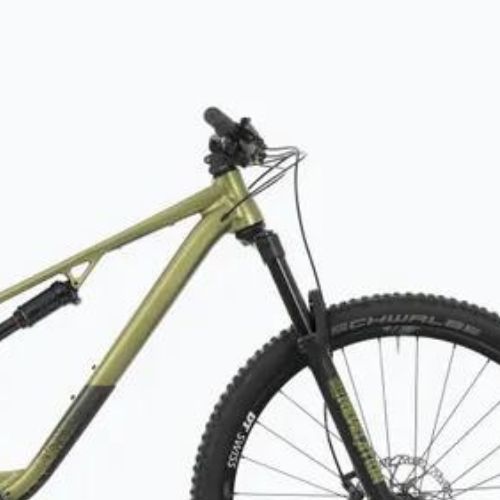

Superior XF 939 TR matte olive metallic/black mountain bicycle (801.2022.29159)

Frame

Frame Alu X6 Ultralite MTB Trail SU-02, Advanced Geometry, Travel 130 mm

Frame material Aluminium

Components

Steering wheel ONE1 Alloy, MTB AL-3712BT, 9° backsweep, 12mm rise, 760mm, 35mm

Handlebar support ONE1 TDS-D622 Alloy, 35mm

Grips ONE1 VLG-1661D2N, Lock-On

Depreciation Full

Rudders ACROS AZX-212 R5,ZS44/28.6 | ZS56/40

Fork RockShox Revelation RC, Tapered, DebonAir, 15x110mm axle, 140mm travel

Damper RockShox Monarch RT, external rebound, 2 position compression (Open/Pedal), size 190x51mm

Saddle Fizik Terra Aidon X5

Bar ONE1 Alloy, MT171, dropper post, 30.9mm

Drive

Derailleurs 1x12

Number of gears 12

Rear derailleur (model) Shimano XT RD-M8100 12-S

Handles SHIMANO SLX SL-M7100-IR RapidFire Plus, 12-speed

Suport SHIMANO BB-MT500PA, PressFit, shell 41x92mm

Crank mechanism SHIMANO SLX FC-M7120 Hollowtech II, 34T

Cassette / Freewheel SHIMANO CS-M6100-12, 10-51T

Chain SHIMANO CN-M6100

Brakes

Brakes (model) SHIMANO BL-M6100/BR-M6120, hydraulic disc brake

Brake type Hydraulic discs

Wheels

Wheel size 29"

Wheels DT Swiss M 1900 Spline DB30

Tyres Schwalbe Nobby Nic Performance, 29x2.40", ADDIX

Additional information

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Superior

Leading colour Gold

Season Year-round

Model/product code XF 939 TR 801.2022.29159

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Code 2000102053

Size	S/15.5"	M/17.5"	L/19"	XL/21"
Height (cm)	160-170	171-180	181-190	191-200
A - Seat tube (mm)	393	431	482	533
B - Horizontal pipe (mm)	584	610	630	650
C - Kąt siodełka (°)	74	74	74	74
D - Head angle (°)	66	66	66	66
E - Rear triangle (mm)	432	432	432	432
F - Wheel base (mm)	1147	1173	1193	1213
G - Rura sterowa (mm)	90	100	100	110
R - Reach (mm)	407	429	449	465
S - Stack (mm)	598	607	607	617
BBD - Support lowering (mm)	25	25	25	25

Advantages

Aluminium frame

When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.

Hydraulic disc brakes

This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.

Full shock absorption

Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.

Drive 1x12

This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
