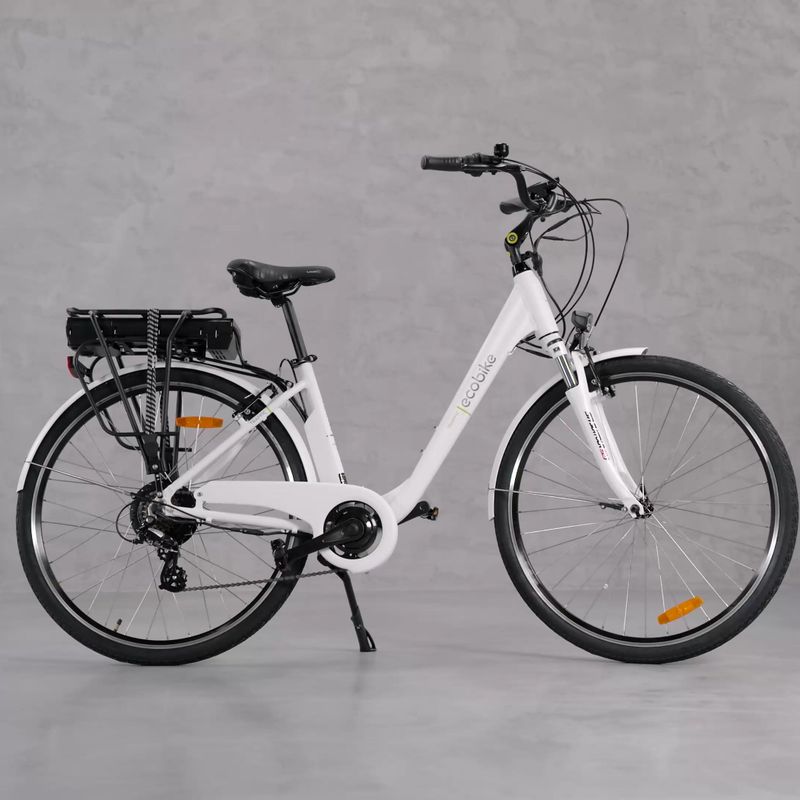

Electric bike EcoBike Traffic 13Ah white 1010105

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code 1000019243

Leading colour White

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

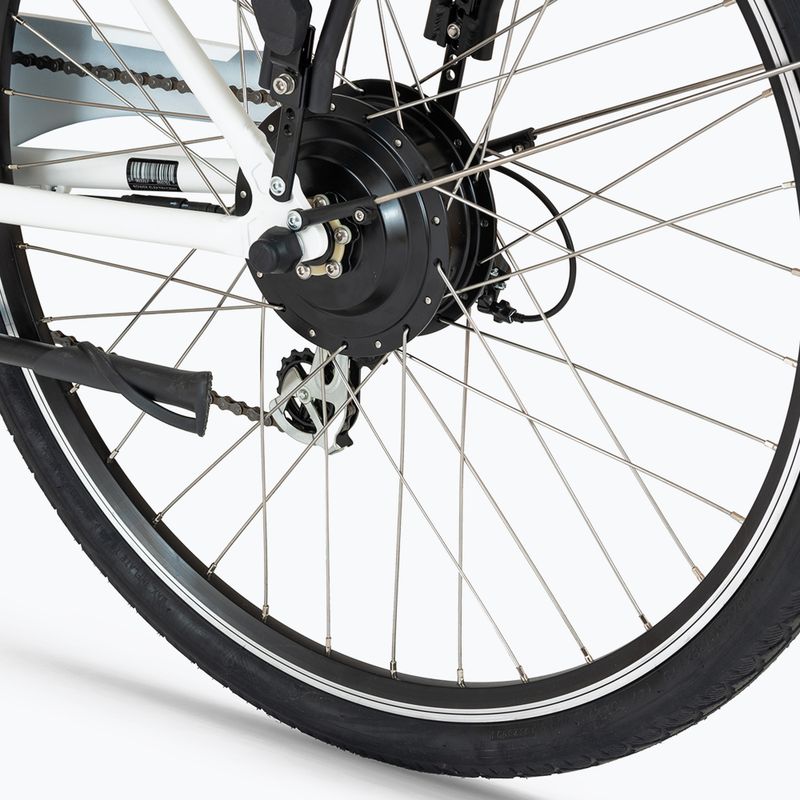

Engine location Hub

Engine power 250 W

Crank mechanism PROWHEEL PRO-A42 / 42T / 170 mm

Wheel size 28"

Frame 17" hydroformed aluminium

Derailleurs 1x7

Sport Bicycles

Cassette / Freewheel Skiful FW-206B/BK / 6sp / 14-28T

Rear derailleur (model) Shimano Tourney RD-TY300 - 7-speed

Handles Revoshift Shimano Tourney SL-RS35

Depreciation Front

Battery location On the boot

Brakes (model) Promax TX117

Purpose City/urban

Maximum range 100 km

Chain KMC 116 L

Handlebar support adjustable

Bar 27.2 mm / 350 mm

Tyres Wanda 28x1.75

Frame material Aluminium

Saddle adjustment Vertical, Horizontal

Fork SunTour CR8V (skok: 63 mm)

Charger 220-240 V / 42V / 2A / Type D

Engine model Bafang

Saddle Selle Royal Lookin Basic-A230

Weight of bike (estimated) 22 kg

Steering wheel Promax HB-T320 (25,4mm / 600mm)

Maximum engine power 360 W

Brake type V-Brake

Number of gears 7

Wheels Reinforced three-chamber wheels, Sapim spokes, 28"

Handlebar width 600 mm

Battery capacity 13Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Joytech 751DSE - front hub

Maximum torque 45 Nm

Battery type Lithium-ion

Maximum speed 35 km/h ( assistance limited to 25 km/h in the settings)

Suport Feimin FP-B902W (68*124mm) – Gwint BSA

Rudders ext. 28.6 mm / ext. 25.4 mm / length 180 mm

Electric bike EcoBike Traffic 13Ah white 1010105 2

Electric bike EcoBike Traffic 13Ah white 1010105

Sizes

Frame size	17"
Height (cm)	160-180
A - Rura pozioma (mm)	600,3
B - Rura sterowa (mm)	161
C - Rura podsiodłowa (mm)	432
D - Wheel base (mm)	1105,7
E - Kąt siodełka (°)	72,5
F - Kąt główki (°)	70

Product description

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

V-brake type

A particular model of bicycle is equipped with V-Brake. This type is characterised by its ease of fitting and maintenance and its high durability. V-Brakes are used on most bicycles because of their versatility.
