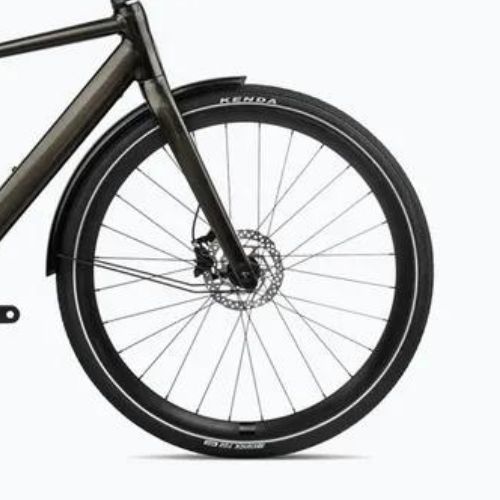

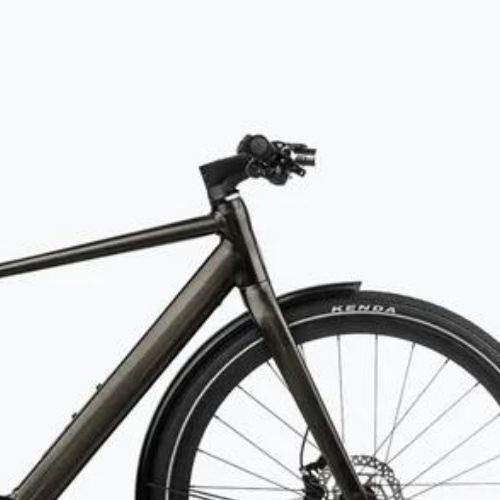

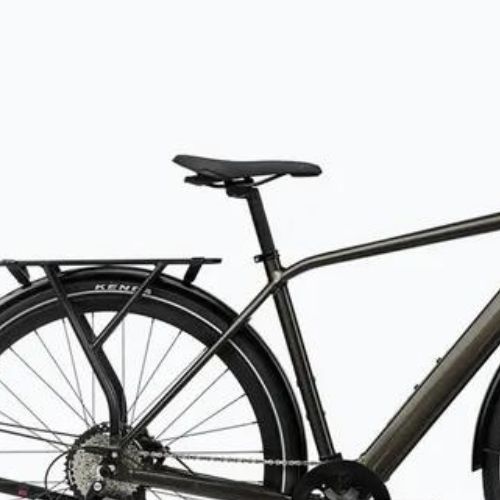

Orbea Vibe H30 EQ 36V 6.9Ah 248Wh 2024 metallic infinity green electric bicycle (R30253W2)

Frame

Frame Orbea Vibe Top Bar Hydro 6061, ICR cable routing, Forged BB, 135x9 QR, 700x45 maximun tire, carrier and fenders compatible

Frame material Aluminium

Components

Steering wheel Alloy 31.8mm 12mm Rise 700mm

Handlebar support Alloy forged, -6º, ICR

Depreciation No

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm

Fork material Carbon fibre

Saddle Selle Royal Lift 1215 URN 278x145mm

Bar Alloy, 27.2mm, Setback 20

Drive

Derailleurs 1x8

Number of gears 8

Rear derailleur (model) Shimano Acera M3020

Handles Shimano SL-M315

Crank mechanism CR01, Forged alloy, 42t, w/Chainguard

Cassette / Freewheel Shimano CS-HG400 11-40t 8-Speed

Chain KMC X8

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels Alloy, Tubeless, 700c, 21c

Tyres Kenda K1052 700x45C Reflective type+puncture protection

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub

Additional information

Support Yes

Bell Yes

Lighting Yes

Mudguards Yes

Luggage carrier Yes

Pedals included Yes

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Year-round

Model/product code Vibe H30 EQ R30253W2

Purpose Cross/Fitness

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Code 2000097377

Engine model Mahle motor hub X35 Plus 25kmh ( brushless )

Engine location Hub

Engine power 250 W

Maximum torque 40 Nm

Battery capacity 248 Wh

Charger Mahle X35

Size	S	M	L
Height (cm)	150-165	165-180	180-195
A - Seat tube (mm)	455	490	530
B - Horizontal pipe (mm)	507	530	547
C - Steerer tube (mm)	109	140	175
D - Rear triangle (mm)	435	435	435
E - Support height (mm)	280	280	280
F - Support lowering (mm)	76	76	76
G - Wheelbase (mm)	1026	1048	1065
H - Head angle	70	70,5	71,5
I - Seat tube angle (°)	75	74,5	74
J - Crossover (mm)	775	809	842
K - Reach (mm)	380	395	410
L - Stack (mm)	546	580	615
M - Fork (mm)	410	410	410

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
