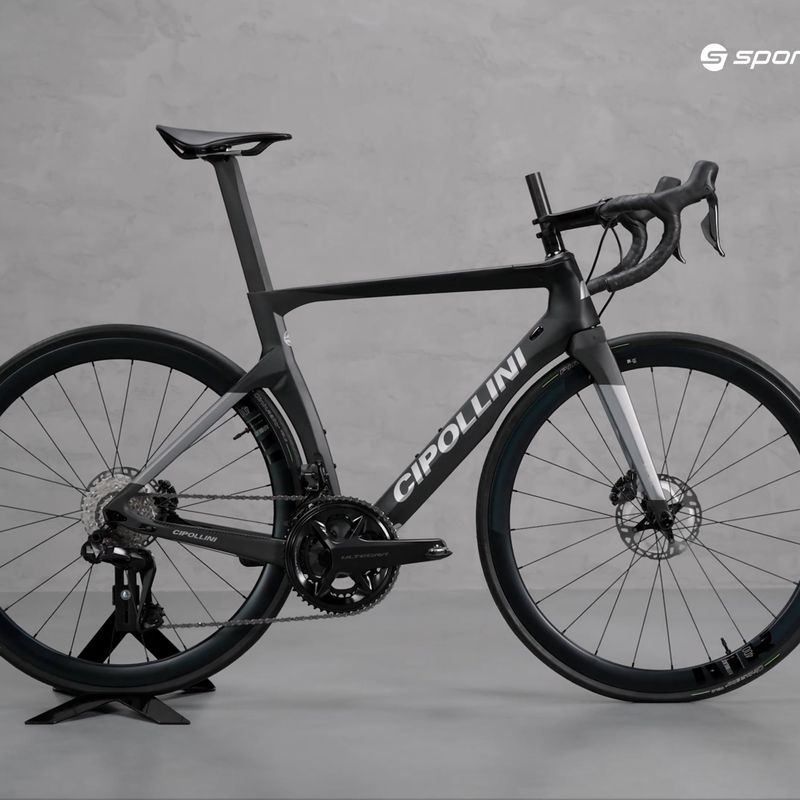

Road bike Cipollini NK1K DB 22-ULTEGRA black M0012MC122NK1K_DB Q30MN (M0012MC122NK1K_DB Q30MN)

Frame

Frame Cipollini NK1K DB

Frame material Carbon fibre

Components

Steering wheel Deda Zero2 DCR (XXS/XS: 400 mm, S/M/L: 420 mm, XL/XXL: 440 mm - misure c-c)

Handlebar support Deda Superzero (XXS/XS: 90 mm, S: 100 mm, M: 110 mm, L: 120 mm, XL/XXL: 130 mm)

Depreciation No

Rudders CONICAL 1.1/2”; 1.1/4”

Fork Cipollini NK1K DB

Fork material Carbon fibre

Saddle Selle Italia Model X Superflow

Bar Cipollini NK1K OFFSET 18 mm; Optional: OFFSET 0 mm

Drive

Type of derailleur Electronic

Derailleurs 1x12

Number of gears 24

Front derailleur (model) Shimano Ultegra Di2 R8150

Rear derailleur (model) Shimano Ultegra Di2 12s R8150

Handles Shimano Ultegra R8170

Crank mechanism Shimano Ultegra Power meter R8100-P 52/36 (XS/S: 170 mm, M/L: 172,5 mm, XL/XXL: 175 mm)

Cassette / Freewheel Shimano Ultegra 12s R8100 11-34

Chain Shimano M8100 12s

Brakes

Brakes (model) Shimano Ultegra R8170

Brake type Hydraulic discs

Brake discs Shimano RT-MT800 160 mm

Wheels

Wheel size 28"

Wheels AIRBEAT 400 DB 21 2WF-R AFS front HH12 - rear HH12/142 with DRP

Tyres Pirelli Cinturato Velo TLR 700x28C

Tubeless ready tyres Yes

Additional information

Lighting No

Mudguards No

Luggage carrier No

Folding condition of the bike Bike adjusted and pre-assembled

Warnings and producer's data

Producer Verona, Itali | [email protected]

Other data

Sport Bicycles

Brand Cipollini

Leading colour Black

Season Year-round

Model/product code NK1K DB 22-ULTEGRA 8150-AIRBEAT 400DB-ZERO2 M0012MC122NK1K_DB Q30MN

Purpose Road

Gender Male, Woman

Country of origin of the brand Italy

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Type of Product Aero/Race

Code 2000008023

Below you will find information that will help you choose the right size when buying a NK1K bike from Cipollini.

Size	M	L
A	495	515
A1	540	557,5
B	545	560
a0	73,5°	73°
b0	72,5°	73°
C	138	152
D	45	45
E	583,5	590
F	405	406
G	71	70
reach	384,5	390
stack	541,5	555,5

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

Tubeless ready tyres

Thanks to the Tubeless Ready technology, the tyres are robust and puncture-resistant and the problem of so-called Snake Bite, i.e. puncturing the inner tube by pinching it against the rim, disappears. The system also allows lower pressures to be used.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
