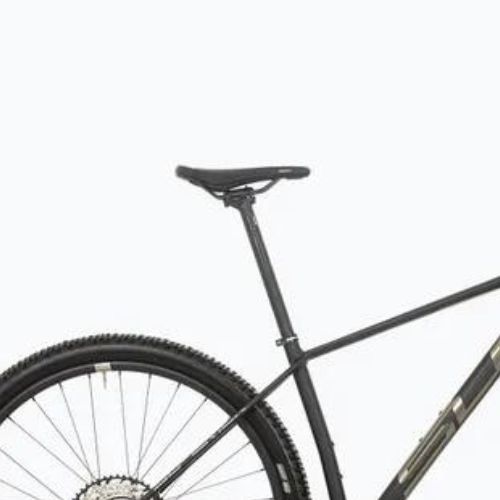

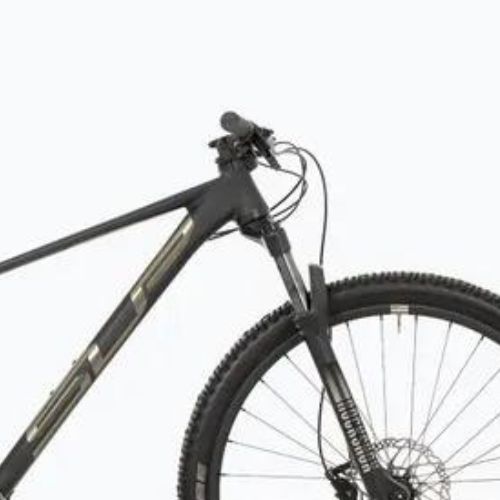

Superior XP 939 matte black/stealth chrome mountain bicycle (801.2023.29026)

Frame

Frame Alu X6 Ultralite, Race Geometry, Conical Head Tube, BB92, Boost Thru axle 148x12mm, Inner cable routing

Frame material Aluminium

Components

Steering wheel ONE1 Race, Horizon Bow, 9° backsweep, 5mm rise, 760mm, 31.8mm

Handlebar support ONE1 Race Alloy, 31.8mm, -7°

Grips Velo VLG-2013-11D2

Depreciation Front

Rudders ACROS AZX-212 R5, ZS44/28.6 - ZS56/40

Fork RockShox Recon Silver RL R, Tapered, SoloAir, 15x110mm axle, 100mm travel

Saddle Fizik Terra Aidon X5

Bar ONE1 Race Alloy, SP 218, 27.2mm

Drive

Derailleurs 1x12

Number of gears 12

Rear derailleur (model) SHIMANO XT RD-M8100, Shadow Plus

Handles SHIMANO SLX SL-M7100-IR, RAPIDFIRE Plus, 12-speed

Suport SHIMANO BB-MT500PA, PressFit, shell 41x92mm

Crank mechanism SHIMANO XT FC-M8100, Hollowtech II, 34T

Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed

Chain Shimano Deore CN-M6100

Brakes

Brakes (model) SHIMANO BL-M4100/BR-MT410

Brake type Hydraulic discs

Brake discs SHIMANO SM-RT54 180 mm front / 160 mm rear

Wheels

Wheel size 29"

Wheels Stars J25DH, 32H

Tyres Schwalbe Racing Ralph Performance, 29x2.25", ADDIX

Hubs SHIMANO HB-MT410-B, 32H, CENTER LOCK, 15x110mm THRU Type AXLE, SHIMANO FH-MT410-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE

spokes Sapim Laser/Race, stainless black

Additional information

Pedals included Yes

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Superior

Leading colour Black

Season Year-round

Model/product code XP 939 801.2023.29026

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Code 2000089668

Below you will find information that will help you choose the right size when buying a Superior XP 939 bike.

Size	15,5" (S)	17,5" (M)	19" (L)	21" (XL)
Height (cm)	160-170	171-180	181-190	191-200
A - Seat tube (mm)	393	431	482	533
B - Horizontal pipe (mm)	585	610	630	650
C - Kąt siodełka (°)	74	74	74	74
D - Head angle (°)	69	69	69	69
F - Wheel base (mm)	1105	1130	1151	1172
G - Rura sterowa (mm)	90	100	110	120
BBD - Support lowering (mm)	55	55	55	55
RC (mm)	440	440	440	440
R - Reach (mm)	415	437	455	472
S - Stack (mm)	591	600	609	619

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Drive 1x12

The 1x12 derailleurs used on this mountain bike allow effortless shifting and provide smooth gradation. The large gear range allows you to adjust the gearing to suit the current conditions on the trail.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
