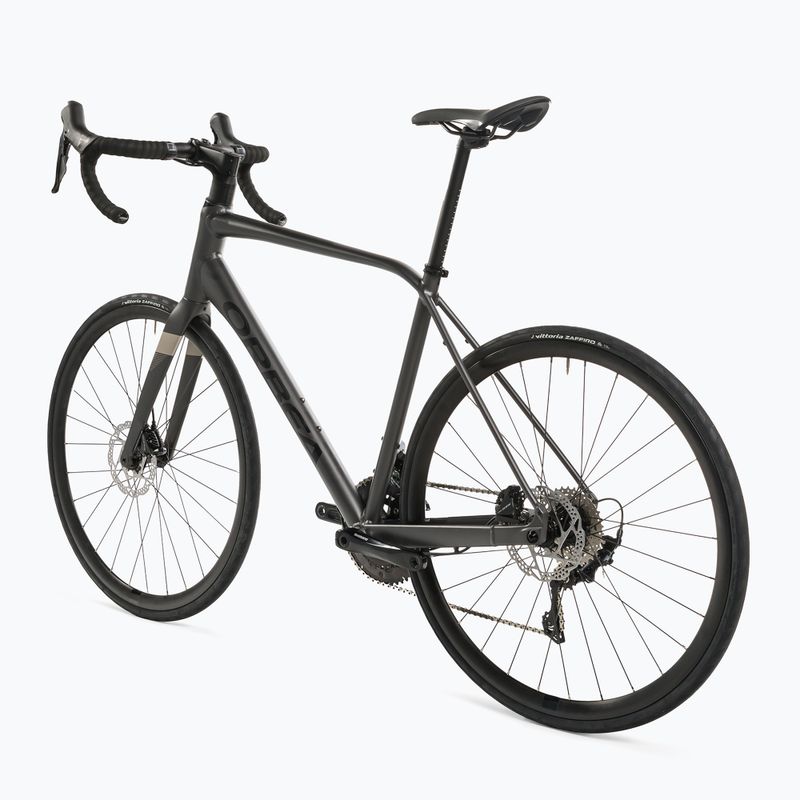

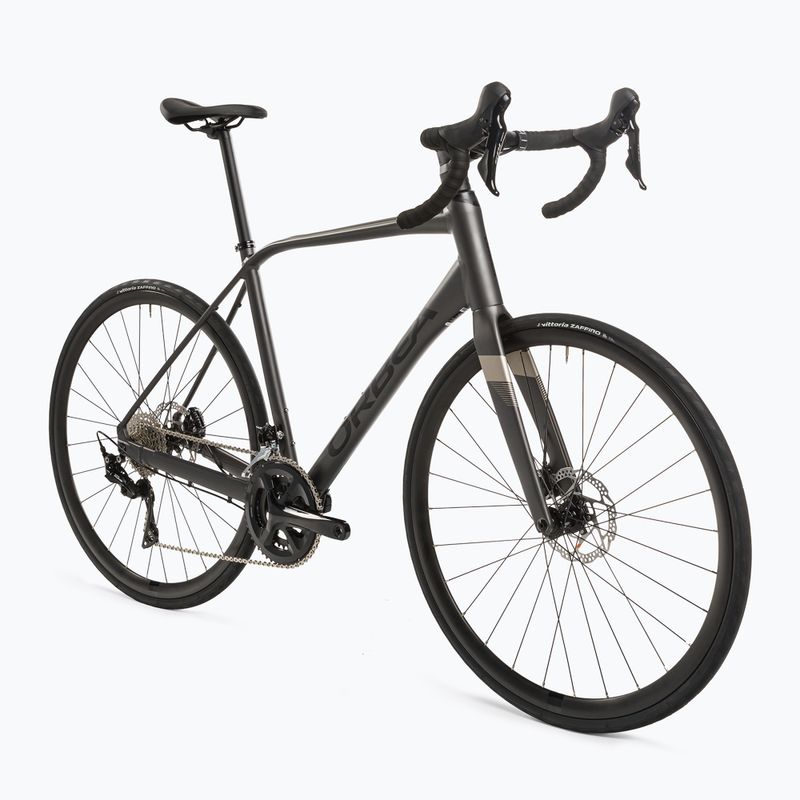

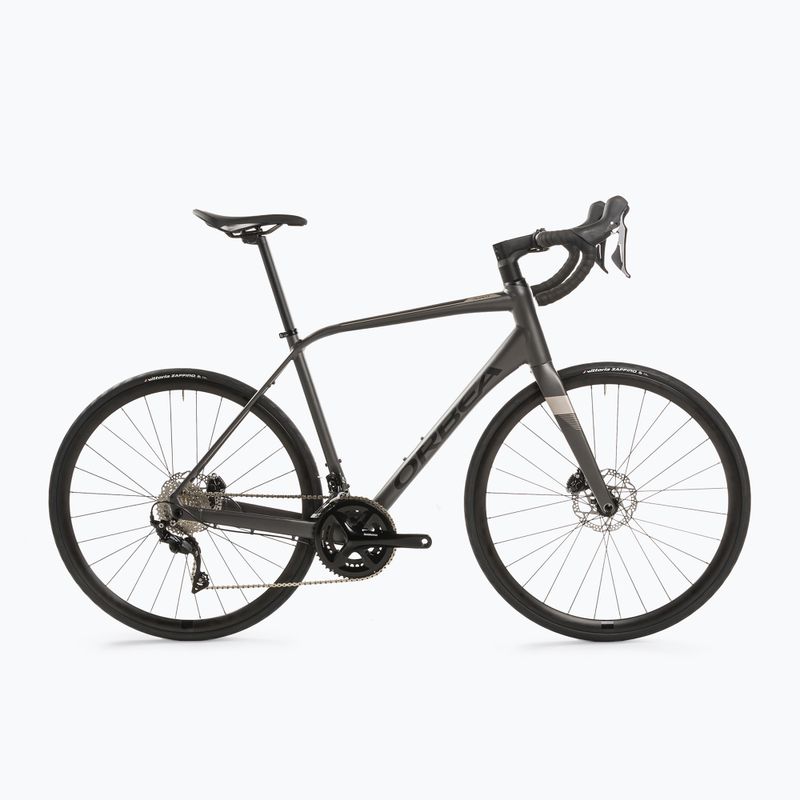

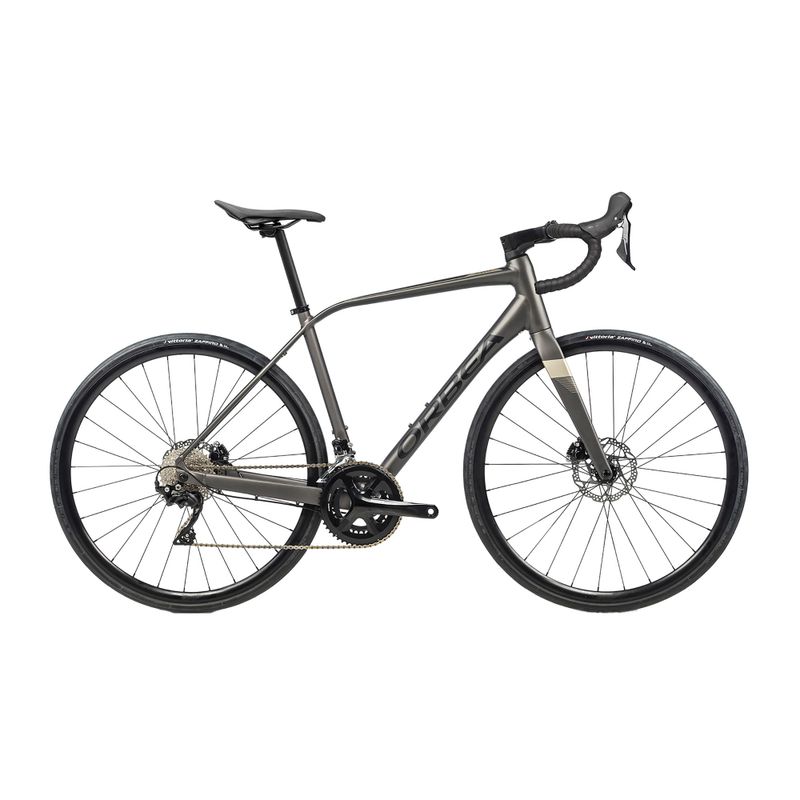

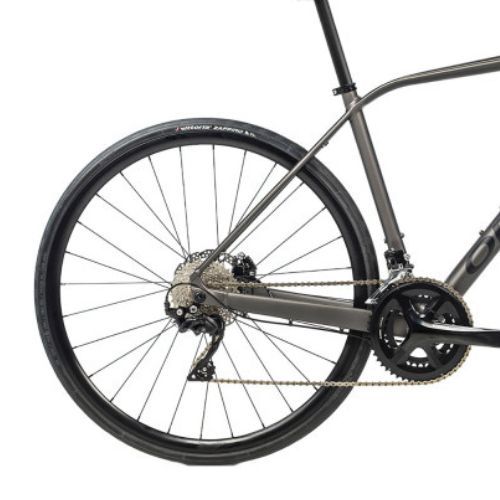

Orbea road bike Avant H30-D silver AH30-D

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Avant H30-D AH30-D

Leading colour Silver

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Shimano RS510 34x50t

Wheel size 28"

Frame Cables routed in the frame, Orbea Avant Hydro disc, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, SP 27,2mm, MMS system

Derailleurs 2x11

Cassette / Freewheel Sun Race CSRS3 11-34t 11-Speed

Sport Bicycles

Rear derailleur (model) Shimano 105 R7000 GS

Handles Shimano ST-7020

Chain Fsa Team Issue

Type of derailleur Mechanical

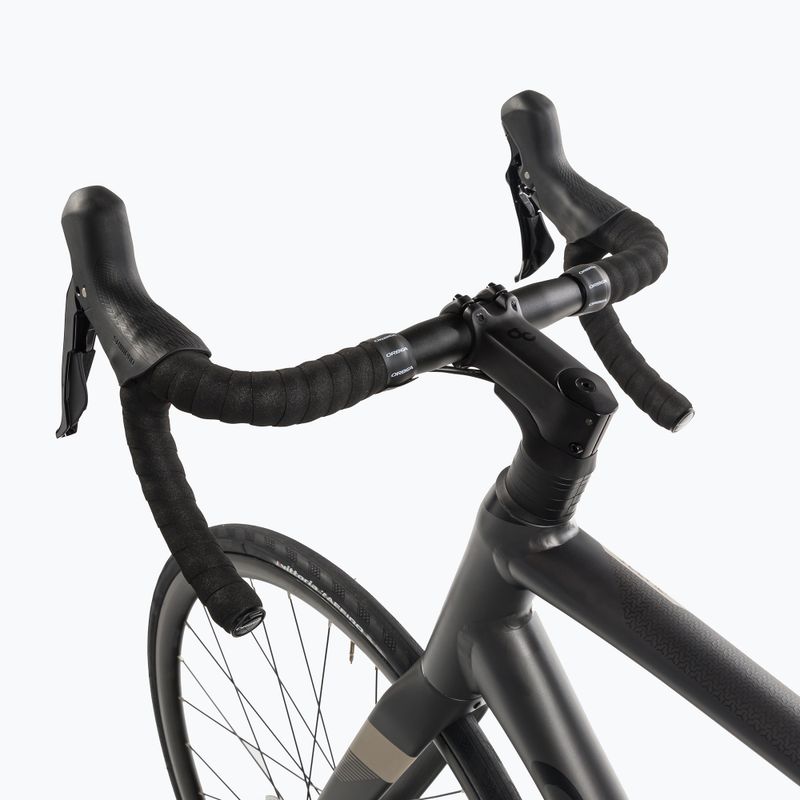

Handlebar support OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface

Bar Alloy 27.2 Offset 20

Frame material Aluminium

Fork Orbea carbon fork 2021, aluminium steerer, 1-1/8" head tube

Type of Product Endurance

Brakes (model) Shimano R7070 Hydraulic Disc

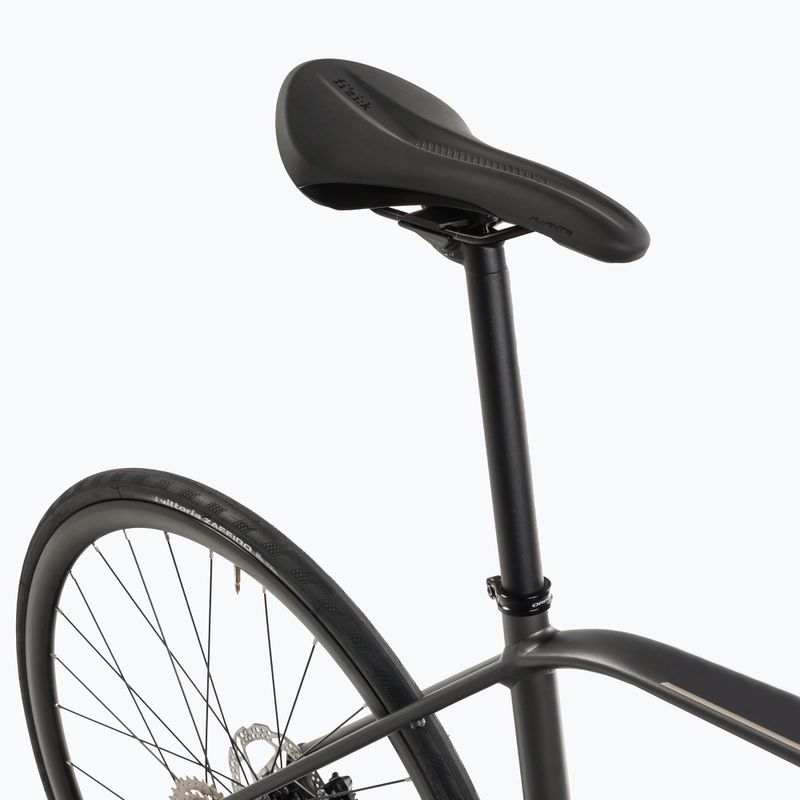

Saddle Fizik Aliante R5

Steering wheel OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, w/Di2 hole

Brake type Hydraulic discs

Number of gears 22

Front derailleur (model) Shimano 105 R7000

Tyres Vittoria Zafiro V Rigid bead 700x28c

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid - rear hub

Wheels Orbea wheel: Corsa with 12mm E-Thru hubset Shimano RS470 28H

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Orbea road bike Avant H30-D silver AH30-D 2

Sizes

Size	53	55	57
Height (cm)	173-179	180-185	186-191
A - Seat tube (mm)	495	520	545
B - Horizontal pipe (mm)	553	569	586
C - Steerer tube (deg)	180	201	221
D - Rear triangle (mm)	425	425	425
E - Support height (mm)	266	266	266
F - Support lowering (mm)	73	73	73
G - Wheelbase (mm)	1006	1020	1029
H - Head angle	72,4	72,6	72,8
I - Saddle angle	73,5	73,5	73
J - Crossover (mm)	790	809	833
K - Reach (mm)	380	390	395
L - Stack (mm)	585	605	625
M - Fork (mm)	370	370	370

Product description

Advantages

Aluminium frame

The frame of this road bike is made of durable aluminium, which stands out for its high resistance to scratches and damage, in addition to its low weight, so carrying the bike is not a problem.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

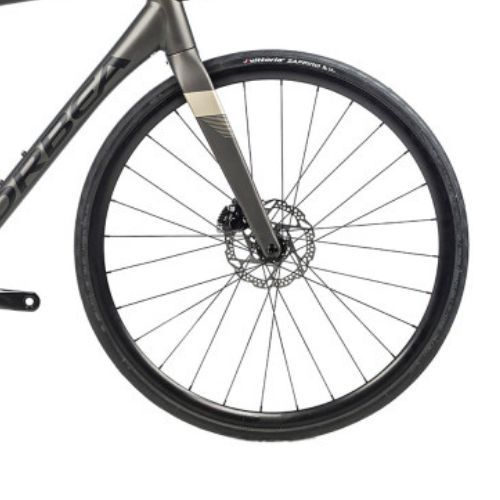

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
