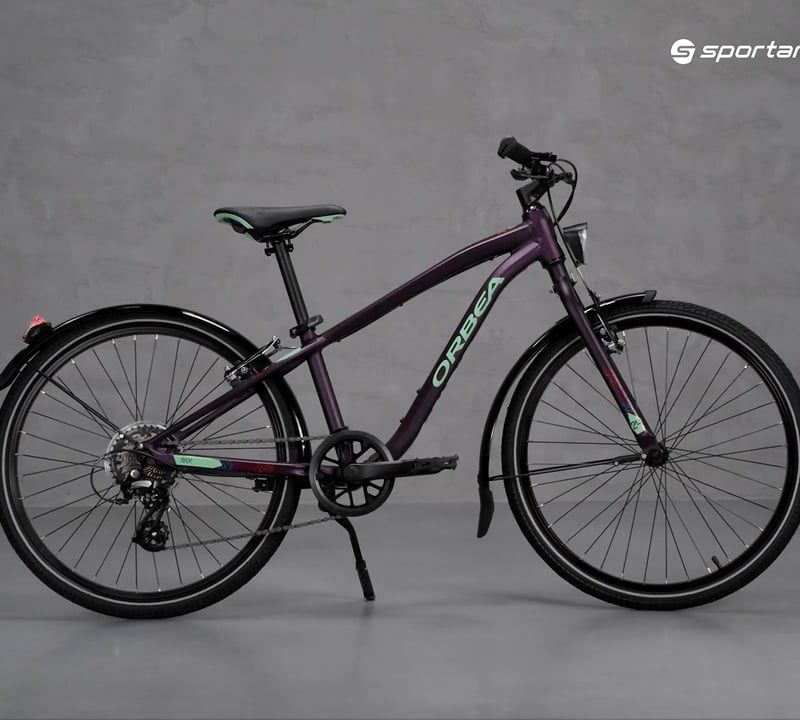

The Orbea MX 24 Park bike with 24” wheels for young MTB riding enthusiasts.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Girl
Season Year-round
Leading colour Purple
Model/product code MX 24 Park M01024I7
Code 2000008000

Frame

Frame Orbea MX 16 6061 Aluminum 2021, 113x9 QR (1 speed), V-Brake, 27.2 Seat Post, Internal Cable Routing
Frame material Aluminium

Components

Steering wheel Orbea Alu integrated cockpit 450mm
Handlebar width 540 mm
Depreciation No
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork Orbea MX 24 Hi Ten 2021, 100x9 QR, V-Brake, Mini + Long Fender ready
Saddle DDK D2405 256x138mm
Saddle adjustment Vertical, Horizontal
Bar Alloy 27.2 Offset 0

Drive

Derailleurs 1x7
Number of gears 7
Rear derailleur (model) Shimano Altus M310
Handles Shimano SL-M315
Suport cartridge
Crank mechanism Extra light 36t, 152mm, w/Chainguard
Cassette / Freewheel Shimano TZ31 14-34t 7-Speed
Chain KMC Z7 GYBR

Brakes

Brakes (model) Junior alloy V-brake
Brake type Mechanical jaws

Wheels

Wheel size 24"
Wheels Orbea Alloy 24"
Tyres Kenda 841 Reflective tape 24x1.75

Additional information

Lighting Yes
Mudguards Yes
Luggage carrier No
Side wheels No
Maximum user weight 50 kg
User height range 125 - 150 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Orbea children's bike MX 24 Park purple M01024I7 (M01024I7)

The Orbea MX 24 Park bike was created for young mountain bikers aged 6-9 years. A functional two-wheeler with reliable equipment from the Japanese brand Shimano works great on terrain with various surfaces and inclines.

The Shimano Altus M310 derailleur guarantees precise and easy gear shifting with minimal loss of pedaling power, and the Shimano SL-M315 shifter allows quick reduction of the gear by three levels in one move.

The minimalist styling of the MX 24 Park is primarily the result of internal cable routing, which increases riding comfort and safety. Partial concealment of the wiring inside the frame minimizes the risk of snagging on terrain, allowing for safe riding, which is especially important for the youngest users.

The mountain bike is equipped with a front light Joss Spanninga Galeo XB (with a light beam of 4 lux and a range of 20 m, visible from up to 1 km away) and a rear light Spanninga Pixeo with an LED diode, which is visible from a distance of 500 m.

Orbea children's bike MX 24 Park purple M01024I7
Feedback

There are no reviews yet, be the first!

Review this product

Orbea children's bike MX 24 Park purple M01024I7

Orbea children's bike MX 24 Park purple M01024I7

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea children's bike MX 24 Park purple M01024I7

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size OS
    Size (inches) 24"
    Height (cm) 125-150
    A - Seat tube (mm) 300
    B - Horizontal pipe (mm) 515
    C - Steerer tube (mm) 100
    D - Rear triangle (mm) 390
    E - Support height (mm) 285
    F - Support lowering (mm) 30
    G - Wheelbase (mm) 975
    H - Head angle 69
    I - Seat tube angle (°) 73
    J - Crossover (mm) 590
    K - Reach (mm) 361
    L - Stack (mm) 502
    M - Fork (mm) 418
