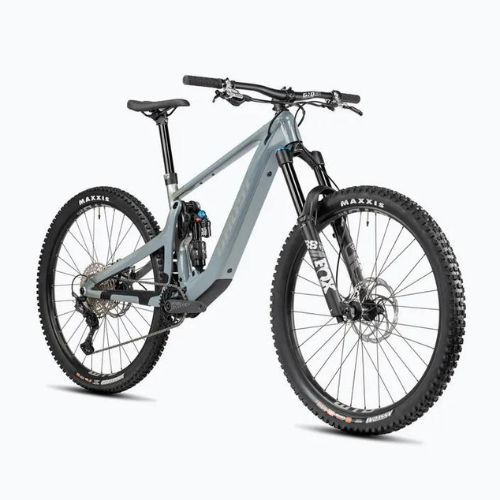

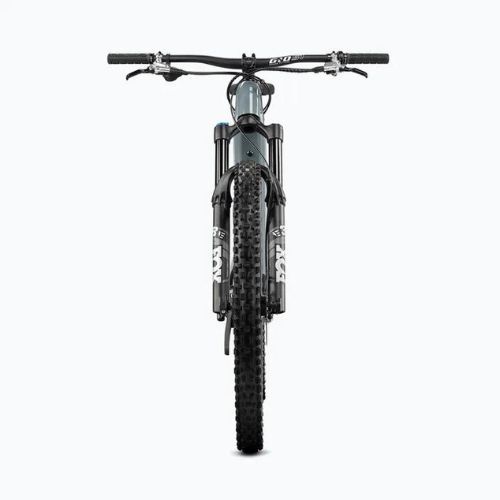

GHOST Path Riot Advanced 430Wh grey/pearl light grey glossy electric bike (31PR1003)

Frame

Frame PATH RIOT CF

Frame material Carbon fibre

Components

Steering wheel Ground Fiftyone Dia. 31.8 mm 760/15 (S) 800/27 (M-XL)

Handlebar support Ground Fiftyone Dia. 31.8 mm

Grips WTB Wafel

Depreciation Full

Rudders Acros Blocklock 135° AZX-582

Fork Fox 38 Float Performance eMTB+ 160 mm

Damper Fox Float X2 Performance 140 mm

Saddle WTB Volt

Bar Eightpins hydraulic 34.9 mm

Drive

Derailleurs 1x12

Number of gears 12

Rear derailleur (model) Shimano XT RD-M8100 12-S

Handles Shimano SLX SL-M7100

Crank mechanism Rotor 34T

Cassette / Freewheel Shimano Deore CS-M6100 10-51

Chain Shimano Deore CN-M6100

Brakes

Brakes (model) Formula Cura 4 203 mm Disc

Brake type Hydraulic discs

Brake discs Formula 203 mm

Wheels

Wheel size 29"

Wheels WTB ST Light i30

Tyres Maxxis Dissector WT Double Down 2.4 3C MaxxGrip, Maxxis Assegai 3C MaxxGrip Exo+ 2.5

Hubs DT Swiss 370 Classic 15x110 mm, DT Swiss 370 Classic 12x148 mm

Additional information

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand GHOST

Leading colour Grey

Season Year-round

Model/product code Path Riot Advanced 31PR1003

Purpose MTB

Gender Male, Woman

Country of origin of the brand Germany

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Code 2000090980

Engine model Fazua Ride 60

Engine location Central

Engine power 250 W

Maximum engine power 450 W

Maximum torque 60 Nm

Battery capacity 430 Wh

Charger Fazua Charger 3A

Below you will find information that will help you choose the right size when purchasing a Path Riot Advanced electric bike from GHOST.

Size	S	M	L	XL
Height (cm)	163-173	171-181	179-189	187-197
Seattube (mm)	417	441	465	489
Headtube (mm)	581	615	647	681
Seattube (mm)	90	110	140	160
Chainstay (mm)	446	446	455	455
BB Drop (mm)	34,2	34,3	29,5	29,6
Wheelbase (mm)	1224	1263	1312	1350
	63,5	63,5	63,5	63,5
Headtube angle	76,5	76,5	76,5	76,5
Standover (mm)	746	762	787	805
Reach (mm)	435	465	492	522
Stack (mm)	607	626	648	666

Advantages

Carbon frame

The use of a carbon frame on this model of bike makes it extremely light and resilient, making use much more comfortable. In addition, the carbon frame effectively dampens vibrations when negotiating bumps.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Full shock absorption

Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.

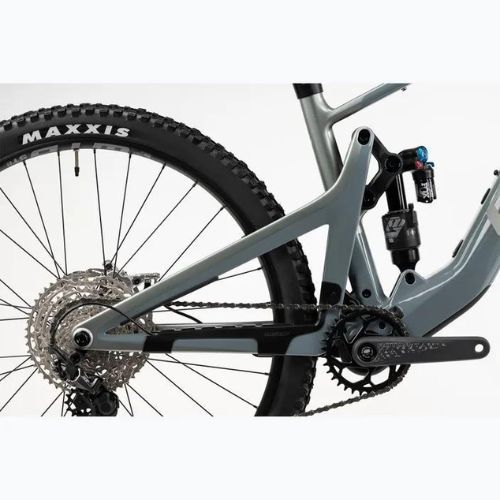

Drive 1x12

The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

29" wheels

The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
