LOVELEC Sargo 36V 15Ah 540Wh grey/black electric bicycle (B400414)

Frame

Frame material Aluminium

Components

Steering wheel Promax

Handlebar width 720 mm

Handlebar support Promax

Depreciation Front

Fork Suntour XCM, suspension, adjustable, lockable, 100 mm travel

Saddle Selle Royal

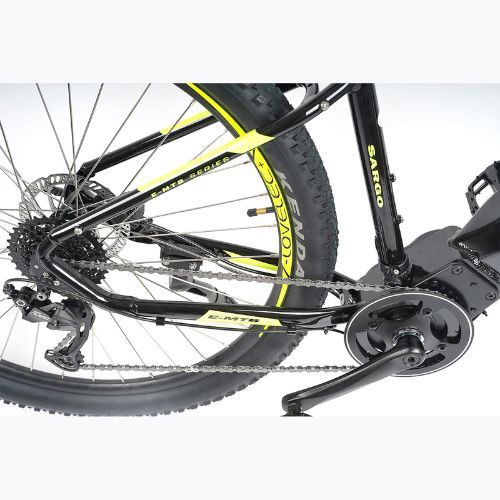

Drive

Derailleurs 1x9

Number of gears 9

Rear derailleur (model) Shimano Alivio 9-speed

Handles Shimano Alivio

Crank mechanism Prowheel, 175mm

Cassette / Freewheel SunRace CSM909 11-34T

Chain KMC

Brakes

Brakes (model) Tektro HD-T275

Brake type Hydraulic discs

Brake discs 160 mm front / 160 mm rear

Wheels

Wheel size 29"

Tyres Kenda K1227, 29×2.4

Hubs Modus

Additional information

Pedals included Yes

Maximum user weight 140 kg

Weight of bike (estimated) 21,5 kg

Folding condition of the bike Bike adjusted and pre-assembled

Warnings and producer's data

Producer KOEXIMPO, spol. s r.o. | Nádražní 41/5, 737 01 Český Těšín, Česká republika | [email protected]

Other data

Sport Bicycles

Brand LOVELEC

Leading colour Grey

Season Year-round

Model/product code Sargo 15Ah B400414

Purpose MTB

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Code 2000087195

Engine model DAPU

Engine location Central

Engine power 250 W

Maximum engine power 750 W

Maximum torque 95 Nm

Maximum speed 25 km/h

Battery type Lithium-ion

Battery capacity 540 Wh

Maximum range 130 km

Charger EN, CE, 36 V, 2 A

Below you will find information that will help you choose the right size when buying a children's electric bicycle SARGO by LOVELEC.

Size	17"	19"	20,5"
Height (cm)	160-175	175-188	185-195
A - angle of the head tube	67	67	67
B - seat tube angle (mm)	72	72	72
C - effective top tube length (mm)	605	620,9	635
D - top tube length (mm)	578,2	590,5	604,4
E - seat tube length (mm)	430	480	520
F - rear triangle length (mm)	480	480	480
G wheels base (mm)	1166,7	1182,6	1198,6
H - head tube height (mm)	130	130	150

Advantages

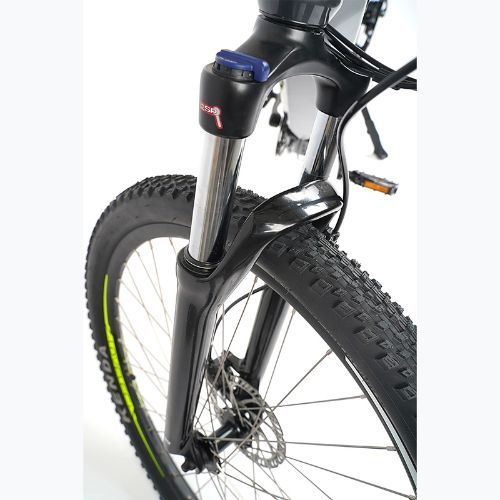

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

29" wheels

The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
