Orbea Terra H30 2024 is a versatile gravel bike that offers comfort, durability, and functionality. It is ready for any adventure, providing solutions tailored to the most demanding cyclists.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Green
Model/product code Terra H30 R14303DF
Code 2000090026

Frame

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5″, PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1
Frame material Aluminium

Components

Steering wheel OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Handlebar support OC Road Performance RP21, -6º
Grips Orbea Eva
Depreciation No
Rudders FSA 1-1/2″ Integrated Aluminium Cup
Fork Orbea Terra ICR, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Fork material Carbon fibre
Saddle Prologo Akero AGX STN size 155mm
Bar SP 0.2 Carbon, 27.2mm, Setback 20
Frame material Carbon fibre

Drive

Type of derailleur Mechanical
Derailleurs 2x12
Number of gears 24
Front derailleur (model) Shimano GRX RX820
Rear derailleur (model) Shimano GRX RX820
Handles Shimano GRX RX610
Crank mechanism Shimano GRX RX610 30x46t
Cassette / Freewheel Shimano HG710 11-36t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Shimano RX400 Hydraulic disc
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Alloy, Tubeless, 700c, 21c, 28h
Tyres Vittoria Terreno Dry Gravel 700x38c
Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid Inner Threaded - rear hub
Tubeless ready wheels Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

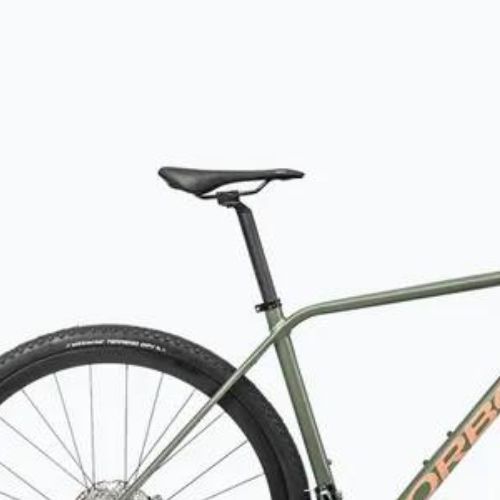

Orbea Terra H30 2024 artichoke/lilac gravel bike (R14303DF)

Orbea Terra H30 2024 is a gravel bike designed from the ground up for demanding gravel trails. It is not just a modified road bike or a stripped-down mountain bike, but a completely new design that combines the best features of both categories. With the Orbea Terra H30, you can add comfort to your adventures on any road, discover new trails, and let your journeys stretch over many days.

The bike frame made of hydroformed triple-butted aluminum is the foundation that provides lightness and durability. The frame is designed with a 1.5-inch head tube, which ensures greater stability and precise handling. The PF-type bottom bracket and rear 12 mm x 142 mm Thru Axle mount with M12x2 P1 thread guarantee strength and confidence on gravel and in tough terrain conditions. For the rider, this means less fatigue and greater control during long trips.

Orbea Terra H30 allows mounting 700c x 45 tires, which provide speed and efficiency on gravel roads. Alternatively, you can choose 650b x 50 tires, which offer extreme durability and comfort with high volume, ideal for challenging terrains requiring better grip. This gives you flexibility in adapting the bike to different conditions and needs.

SP 0.2 Carbon seatpost with a diameter of 27.2mm and 20 mm offset is an element that significantly affects riding comfort. Made of carbon fiber, it reduces vibrations transmitted to the saddle, which is especially important during long rides. Thanks to this, even after many hours of riding, your back and seat will be less tired, and you will be able to enjoy the ride.

Vittoria Terreno Dry Gravel tires in size 700x38c are designed for gravel and dry surfaces. They provide an optimal balance between speed and grip, allowing for confident and fast cornering as well as stability on straight sections. For the rider, this means greater confidence and less risk of slipping on loose ground.

Advantages

Aluminium frame
This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.
Hydraulic disc brakes
This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.
28" wheels
The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.
Carbon fork
The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Terra H30 2024 artichoke/lilac gravel bike

Orbea Terra H30 2024 artichoke/lilac gravel bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Terra H30 2024 artichoke/lilac gravel bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when buying a Terra H30 bike from Orbea.

    Size XS S M L XL
    Height (cm) 155-166 167-172 173-179 180-185 186-191
    A - Seat tube (mm) 425 458 491 524 557
    B - Horizontal pipe (mm) 526 539 558 570 590
    C - Steerer tube (mm) 110 131 152 178 199
    D - Rear triangle (mm) 430 430 430 430 430
    E - Support height (mm) 263 263 263 265 265
    F - Support lowering (mm) 78 78 78 76 76
    G - Wheelbase (mm) 1020 1030 1039 1054 1063
    H - Head angle 70 70,5 71 71 71,5
    I - Seat tube angle (°) 74 74 73,5 73,5 73
    J - Crossover (mm) 704 731 759 788 815
    K - Reach (mm) 375 382 389 395 402
    L - Stack (mm) 526 548 570 592 614
    M - Fork (mm) 390 390 390 390 390
