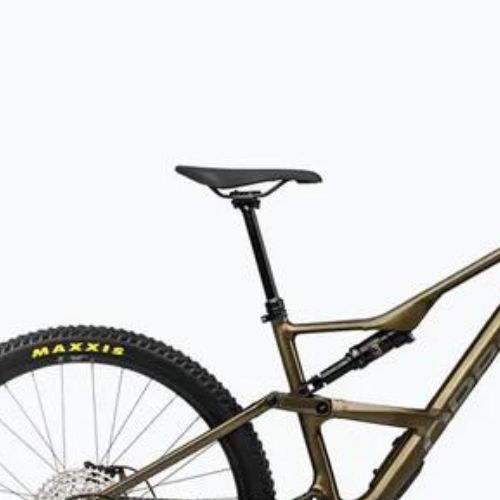

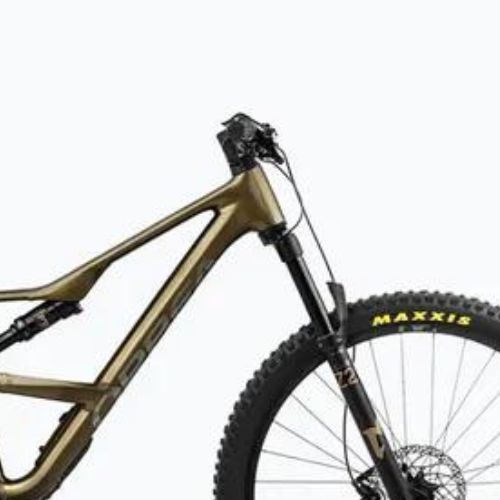

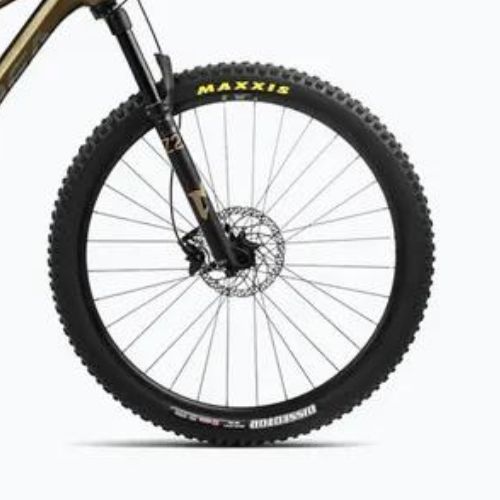

Orbea Occam H30 SL metallic olive green/titanium black mountain bike (R25405P1)

Frame

Frame Orbea Occam Hydro. Concentric Boost 12×148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29″ wheels

Frame material Aluminium

Components

Steering wheel OC Mountain Control MC30, Rise20, Width 800

Handlebar support OC Mountain Control MC20, 0º

Grips OC Lock On

Depreciation Full

Rudders FSA 1-1/2″ Integrated Aluminium Cup

Fork Marzocchi Bomber Z2 140 Remote Push-Lock QR15x110

Damper Fox Float Performance Remote Push-lock Evol custom tune 210x50mm

Saddle Selle Royal 2058 DRN

Bar OC Mountain Control MC21, 31.6mm, Dropper

Drive

Type of derailleur Mechanical

Derailleurs 1x12

Number of gears 12

Rear derailleur (model) Shimano Deore M6100 SGS Shadow Plus

Handles Shimano Deore M6100

Crank mechanism Forged alloy, 32t, Boost

Cassette / Freewheel Shimano CS-M6100 10-51t 12-Speed

Chain Shimano M6100

Brakes

Brakes (model) Shimano MT201 Hydraulic Disc

Brake type Hydraulic discs

Wheels

Wheel size 29"

Wheels Alloy, Tubeless, 29″, 29c, 32H

Tyres Maxxis Dissector 2.40″ 60 TPI 3CMaxxTerra Exo TLR, Maxxis Rekon 2.40″ FB 60 TPI Dual Exo TR

Tubeless ready wheels Yes

Tubeless ready tyres Yes

Additional information

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Year-round

Model/product code Occam H30 SL R25405P1

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Code 2000090032

Below you will find information that will help you choose the right size when purchasing the Occam H30 SL bike from Orbea.

Size	M
Height (cm)	160-180
A - Seat tube (mm)	415
B - Horizontal pipe (mm)	596
C - Steerer tube (mm)	100
D - Rear triangle (mm)	440
E - Support height (mm)	341
F - Support lowering (mm)	37
G - Wheelbase (mm)	1218
H - Head angle	65,5
I - Seat tube angle (°)	78
J - Crossover (mm)	465
K - Reach (mm)	615
L - Stack (mm)	554
M - Fork (mm)	44

Advantages

Aluminium frame

When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.

Hydraulic disc brakes

This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.

Tubeless ready tyres

The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.

Full shock absorption

Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.

Drive 1x12

This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
