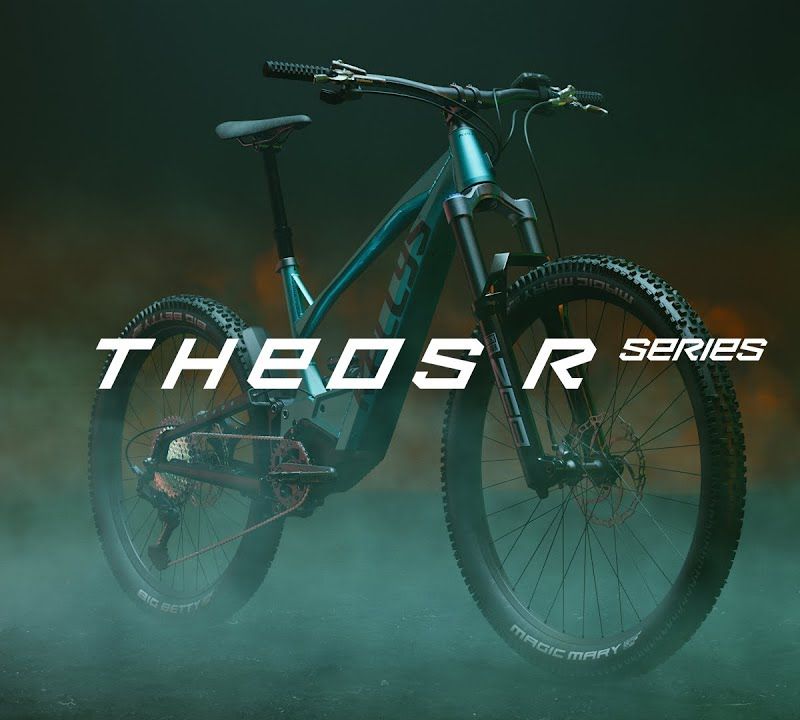

Kellys Theos R30 P 29"/27.5" 36V 20Ah 725Wh steel blue electric bike (76117)

Frame

Frame KELLYS THEOS R-series

Frame material Aluminium

Components

Steering wheel KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm

Handlebar support KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm

Depreciation Full

Rudders ACROS 1.8 tapered semi-integrated

Fork ROCK SHOX 35 Silver TK (29") Boost, 150 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle

Damper ROCK SHOX Deluxe Select R, DebonAir+ (210x55 mm)

Saddle Fizik Taiga S-alloy rail

Bar LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm

Drive

Derailleurs 1x10

Number of gears 10

Rear derailleur (model) SHIMANO Cues U6000

Handles SHIMANO Cues SL-U6000-10 Rapidfire Plus

Crank mechanism MIRANDA Miranda (34T) - length 170 mm

Cassette / Freewheel SHIMANO Linkglide CS-LG400-10 (11-48T)

Chain SHIMANO Linkglide CS-LG500

Brakes

Brakes (model) Shimano MT420 Hydraulic Disc

Brake type Hydraulic discs

Brake discs SHIMANO RT30 203 mm front / EM300 203 mm rear

Wheels

Wheel size 29", 27,5"

Wheels KLS Valor 3 Disc 622x30 front / 584x30 rear (32 holes)

Tyres SCHWALBE Nobby Nic Performance 62-584 (27.5"x2.40) Tubeless Easy, ADDIX, SCHWALBE Nobby Nic Performance 62-622 (29"x2.40) Tubeless Easy, ADDIX

Axle type 110 x 15 mm, 177 x 12 mm

Hubs SHIMANO MT400-B Disc Center Lock (32 holes)

Tubeless ready tyres Yes

Additional information

Pedals included Yes

Folding condition of the bike Bike adjusted and pre-assembled

Warnings and producer's data

Producer 922 01 Veľké Orvište, Słowacja | [email protected]

Other data

Sport Bicycles

Brand Kellys

Leading colour Blue

Season Year-round

Model/product code Theos R30 P 29"/27.5" 725Wh

Purpose MTB

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Code 2000073711

Engine model PANASONIC GX Ultimate

Engine location Central

Engine power 250 W

Maximum torque 95 Nm

Battery type Lithium-ion

Battery capacity 720 Wh

Size	S	M	L
Height (cm)	160-172	168-180	178-196
S/T (mm)	400	425	460
L (mm)	577	613	648
Reach (mm)	433	466	498
Stack (mm)	619	628	637
H/T (mm)	105	115	125
S/T (°)	76,5	76,5	76,5
H/T (°)	65	65	65
BB (mm)	28	28	28
RC (mm)	462	462	462
WB (mm)	1230	1263	1295

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Tubeless ready tyres

Thanks to the use of Tubeless Ready (TLR) technology, the tyres are resistant to punctures and lower pressures can be applied. Furthermore, the system eliminates the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching against the rim.

Full shock absorption

Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

27.5" wheels

The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.

29" wheels

The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
