Frame
Frame Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
Frame material Aluminium
Components
Steering wheel Alloy Flat 31.8mm 720mm
Handlebar material Aluminium
Handlebar support Alloy 31.8mm interface 7º
Handlebar stem material Aluminium
Depreciation Front
Fork SR Suntour XCT 30 Coil 100mm QR

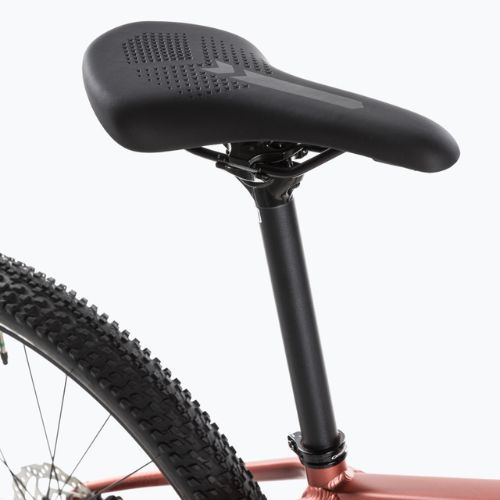

Saddle Selle Royal 2058 DRN
Bar Alloy 27.2 Offset 0
Drive
Type of derailleur Mechanical
Derailleurs 2x9
Number of gears 18
Front derailleur (model) Shimano M2020 31.8mm
Rear derailleur (model) Shimano Altus M2000 SGS Shadow
Handles Shimano Alivio SL-M3100
Crank mechanism Alloy forged 22x36t 9S
Cassette / Freewheel Sun Race CSM989 11-36t 9-Speed
Chain KMC X9
Brakes
Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs
Wheels
Wheel size 27,5"
Wheels Orbea Black Rock 23c Disc
Tyres Kenda Booster 2.40" 30TPI
Additional information
Folding condition of the bike Bike adjusted and pre-assembled
Other data
Sport Bicycles
Brand Orbea
Leading colour Red
Season Year-round
Model/product code Onna 40 27 N20215NA
Gender Male, Woman
Country of origin of the brand Spain
Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Model colour 2000062701
| Size | XS | S |
| Height (cm) | 145-160 | 155-170 |
| A - Seat tube (mm) | 350 | 388 |
| B - Horizontal pipe (mm) | 526 | 549 |
| C - Steerer tube (mm) | 95 | 105 |
| D - Rear triangle (mm) | 430 | 430 |
| E - Support height (mm) | 312 | 312 |
| F - Support lowering (mm) | 45 | 45 |
| G - Wheelbase (mm) | 1049 | 1073 |
| H - Head angle | 68,5 | 68,5 |
| I - Seat tube angle (°) | 74,5 | 74,5 |
| J - Crossover (mm) | 668 | 705 |
| K - Reach (mm) | 365 | 385 |
| L - Stack (mm) | 582 | 591 |
| M - Fork (mm) | 498,9 | 498,9 |
Advantages
Front cushioning
The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.
Aluminium frame
The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.
Hydraulic disc brakes
This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
27.5" wheels
The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
