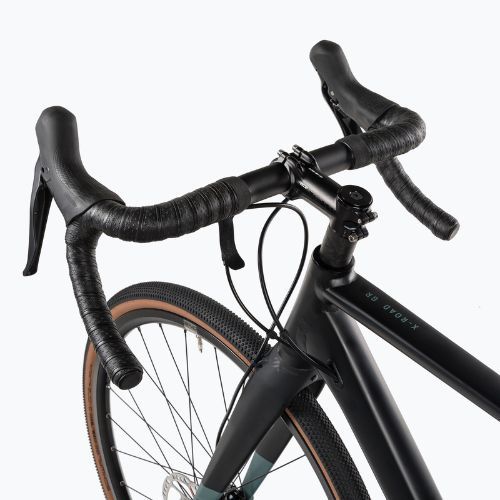

Superior X-ROAD Elite GR gravel bike black 801.2022.28016

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code X-ROAD Elite GR 801.2022.28016

Leading colour Black

Brand Superior

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

Crank mechanism Shimano GRX FC-RX600, 40T

Wheel size 28"

Derailleurs 1x11

Cassette / Freewheel SunRace CS-MS7-11 (11-42T)

Sport Bicycles

Rear derailleur (model) Shimano GRX 812

Handles Shimano GRX 400

Depreciation No

Fork material Carbon

Brakes (model) Shimano GRX 400

Lighting No

Type of derailleur Mechanical

Handlebar support ONE1 Race RAS-D62938 Alloy, 31.8mm, -8°, 100mm

Bar ONE1 Race Alloy, SP C255, 27.2x350mm

Tyres Schwalbe G-One Allround RaceGuard, 28x1.50"

Frame material Aluminium

Fork X-Road Elite 28", Carbon/alloy rigid, a-head 1-1/8x1.5", axle 12x100mm

Saddle Fizik Aliante R5

Steering wheel ONE1 Alloy, X-Race Aero, 16° flared, 70mm reach, 31.8mm

Brake type Hydraulic discs

Number of gears 11

Axle type 142 x 12 mm, 100 x 12 mm

Wheels Stars J20SR, 28H

Folding condition of the bike Bike adjusted and pre-assembled

Purpose Gravel

Mudguards No

Luggage carrier No

Superior X-ROAD Elite GR gravel bike black 801.2022.28016 2

Sizes table

Below you will find information that will help you choose the right size when buying an X-ROAD Elite GR bike from Superior.

Size	52 (S)	54 (M)	56 (L)	58 (XL)
Height (cm)	170-180	181-185	186-190	191-200
A - Seat tube (mm)	490	510	530	550
B - Horizontal pipe (mm)	530	540	570	590
C - Kąt siodełka (°)	73,8	73,5	73	73
D - Head angle (°)	71,5	72	73	73
E - Rear triangle (mm)	414	414	414	414
F - Wheel base (mm)	992	990	1010	1029,8
G - Rura sterowa (mm)	135	145	180	190
R - Reach (mm)	367	371	384	401
S - Stack (mm)	558	569	606	616
BBD - Support lowering (mm)	70	70	70	70

Product description

Advantages

Aluminium frame

This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
