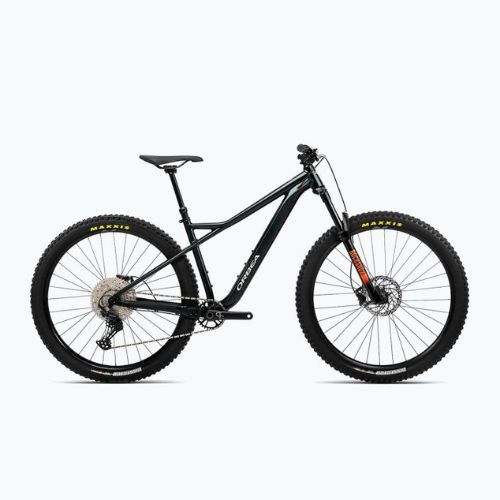

Orbea mountain bike Laufey H30 green 2023 N24919LV (N24917LV)

Frame

Frame Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05

Frame material Aluminium

Components

Steering wheel OC1 35mm 12mm Rise 780mm

Handlebar support OC1 3D Forged 35mm interface 7º

Depreciation Front

Rudders FSA 1-1/8 - 1-1/2" Integrated

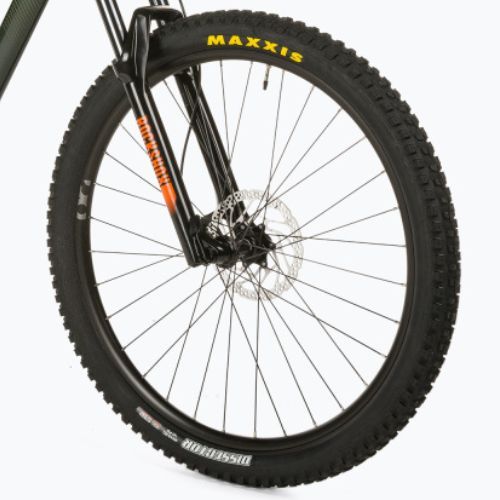

Fork RockShox Recon RL Crown adjust Q15X110 Boost Solo Air 140mm

Saddle Selle Royal 2058 DRN

Bar OC Mountail Control MC20, 31.6mm, Dropper

Drive

Type of derailleur Mechanical

Derailleurs 1x11

Number of gears 11

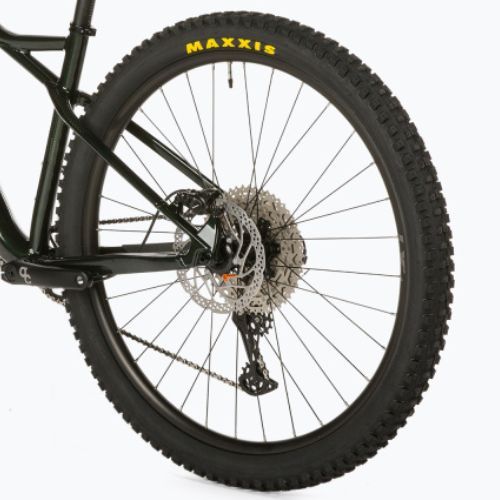

Rear derailleur (model) Shimano Deore M5100 SGS Shadow Plus

Handles Shimano Deore M5100

Crank mechanism OC1 Alloy forged Boost 32t

Cassette / Freewheel Sun Race 11-51t 11-Speed

Chain KMC X11

Brakes

Brakes (model) Shimano MT201 Hydraulic Disc

Brake type Hydraulic discs

Wheels

Wheel size 29"

Wheels Orbea OC1 29c Tubeless Ready

Tyres Maxxis Forekaster 2.60" FB 60 TPI Dual Exo TR, Maxxis Rekon 2.60" FB 60 TPI Dual Exo TR

Axle type 148 x 12 mm, 110 x 15 mm

Tubeless ready wheels Yes

Additional information

Lighting No

Mudguards No

Luggage carrier No

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Year-round

Model/product code Laufey H30 N24919LV

Purpose MTB

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Code 2000059616

Size	S	M	L	XL
Height (cm)	150-165	160-175	170-185	180-198
A - Seat tube (mm)	381	432	470	521
B - Horizontal pipe (mm)	578	606	632	662
C - Steerer tube (mm)	95	100	110	130
D - Rear triangle (mm)	435	435	435	435
E - Support height (mm)	313,5	313,5	313,5	313,5
F - Support lowering (mm)	65	65	65	65
G - Wheelbase (mm)	1146	1174	1202	1235
H - Head angle	65,5	65,5	65,5	65,5
I - Seat tube angle (°)	75	75	75	75
J - Crossover (mm)	678	714	726	763
K - Reach (mm)	409	435	459	484
L - Stack (mm)	632	636	645	664
M - Fork (mm)	547	547	547	547

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Drive 1x12

The 1x12 derailleurs used on this mountain bike allow effortless shifting and provide smooth gradation. The large gear range allows you to adjust the gearing to suit the current conditions on the trail.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
