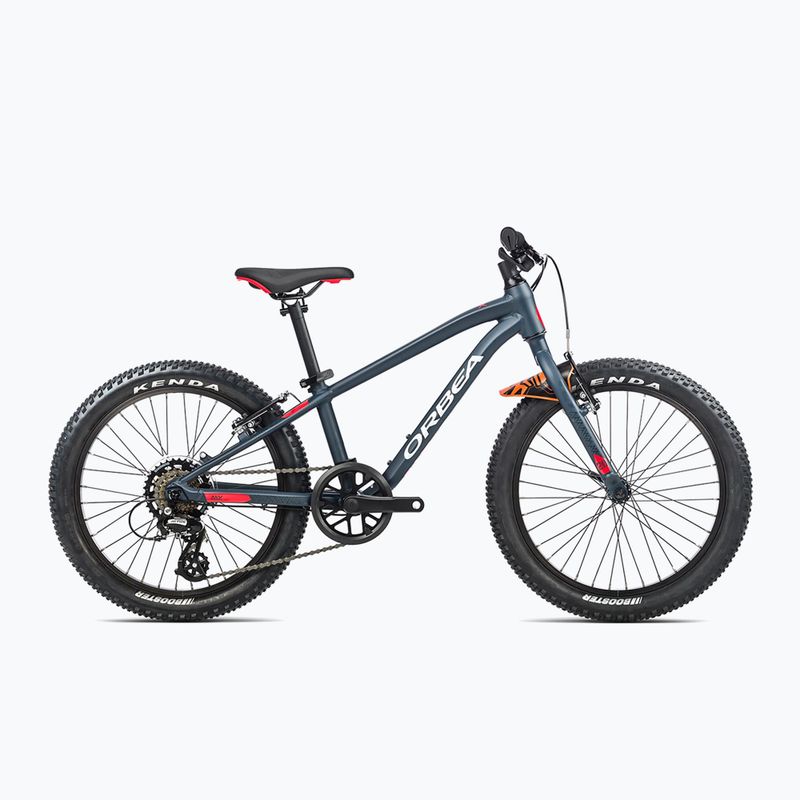

Orbea children's bike MX 20 Dirt blue/red 2023 N00320I5

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code MX 20 Dirt N00320I5

Leading colour Blue

Brand Orbea

Country of origin of the brand Spain

Gender Boy, Girl

Season Year-round

Lighting No

Crank mechanism Extra light 36t, 127mm, w/Chainguard

Wheel size 20"

Frame Orbea MX 20 6061 Aluminum 2021, 135x9 QR

Derailleurs 1x7

Sport Bicycles

Cassette / Freewheel Shimano TZ31 14-34t 7-Speed

Rear derailleur (model) Shimano Altus M310

Handles Shimano SL-M315

Depreciation No

Brakes (model) Junior alloy V-brake

Chain KMC Z7 GYBR

Type of derailleur Mechanical

Bar Digit Alloy 27.2x250mm Offset 0

User height range 110 - 135 cm

Tyres Kenda Booster K1277 20x2.20" 30TPI

Frame material Aluminium

Mudguards Yes

Saddle DDK D2005 237x141mm

Steering wheel Orbea Alu integrated cockpit 540mm

Brake type Mechanical jaws

Number of gears 7

Wheels Orbea Alloy 20"

Luggage carrier No

Stan złożenia roweru Bike adjusted and pre-assembled

Side wheels No

Rudders VP-Z104PD 1-1/8" Semi-Cartridge

Orbea children's bike MX 20 Dirt blue/red 2023 N00320I5 2

Sizes

Size	20
Height (cm)	110-135
A - Seat tube (mm)	257
B - Horizontal pipe (mm)	450
C - Steerer tube (deg)	100
D - Rear triangle (mm)	345
E - Support height (mm)	236
F - Support lowering (mm)	18
G - Wheelbase (mm)	863
H - Head angle	69
I - Saddle angle	73
J - Crossover (mm)	491
K - Reach (mm)	320
L - Stack (mm)	424
M - Fork (mm)	347

Product description

Advantages

Mudguards included

This bike is equipped with mudguards to provide protection when riding in adverse weather conditions. This means you don[t have to worry about dirt and mud coming out from under the wheels.

Aluminium frame

The junior bike has been designed with attention to every element. Its frame is made of durable aluminium, which stands out for its low weight. In addition, this material is characterised by its strength and resistance to deformation.

V-brake type

This bike is equipped with reliable, universal V-Brake brakes, which are used on the vast majority of bikes, as they are extremely durable and easy to install and maintain.
