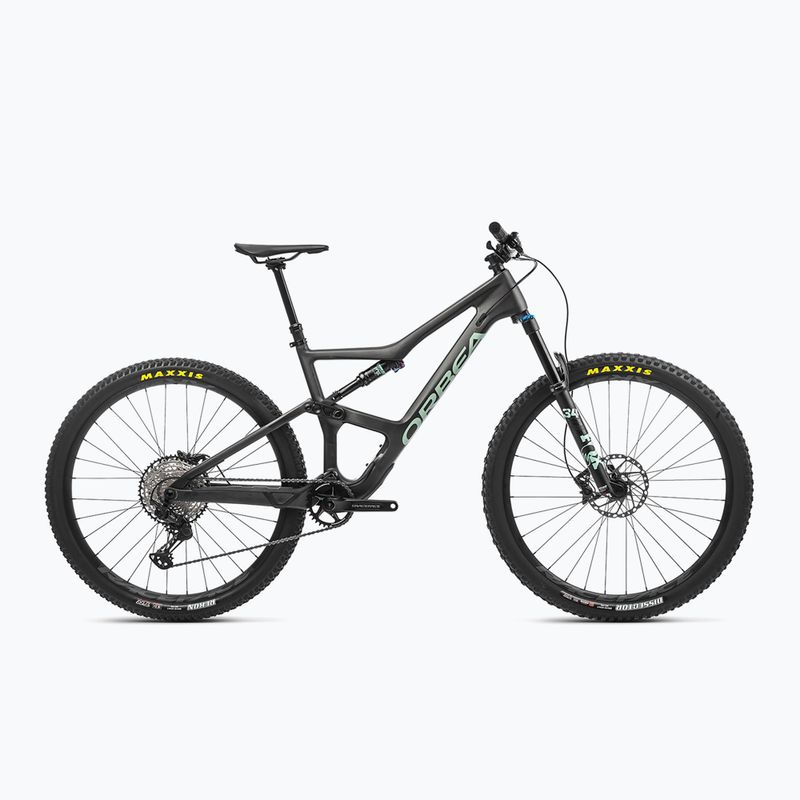

Orbea Occam M30 2022 mountain bike black/green M25618LS

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Occam M30 2022 M25618LS

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Race Face Aeffect 32t

Wheel size 29"

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design

Derailleurs 1x12

Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed

Sport Bicycles

Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus

Handles Shimano SLX M7100 I-Spec EV

Depreciation Full

Tubeless ready tyres Yes

Brakes (model) Shimano M6120 Hydraulic Disc

Chain Shimano M6100

Handlebar support Alloy 3D forged, 35mm interface, -7º

Bar OC Mountain Control MC20, 31.6mm, Dropper

Tyres TYRES Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR

Frame material Carbon

Fork Fox 36 Float Performance 150 Grip 3-Position QR15x110

Saddle Fizik Taiga S-alloy rail

Steering wheel OC Mountain Control MC30, Rise20, Width 800

Brake type Hydraulic discs

Number of gears 12

Axle type 148 x 12 mm, 110 x 15 mm

Wheels Race Face AR 30c Tubeless Ready

Stan złożenia roweru Bike adjusted and pre-assembled

Damper Fox Float DPS Performance 3-Position Evol custom tune 210x50mm

Tubeless ready wheels Yes

Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated

Orbea Occam M30 2022 mountain bike black/green M25618LS 2

Sizes

Size	S	M	L	XL
Height (cm)	150-165	160-175	170-185	180-198
A - Seat tube (mm)	381	419	457	508
B - Horizontal pipe (mm)	565	592	619	649
C - Steerer tube (deg)	95	105	120	140
D - Rear triangle (mm)	440	440	440	440
E - Support height (mm)	336	336	336	336
F - Support lowering (mm)	35	35	35	35
G - Wheelbase (mm)	1165	1194	1224	1259
H - Head angle	66	66	66	66
I - Saddle angle	77	77	77	77
J - Crossover (mm)	710	736	766	776
K - Reach (mm)	425	450	474	500
L - Stack (mm)	604	613	627	646
M - Fork (mm)	547	547	547	547

Product description

Advantages

Carbon frame

When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.

Hydraulic disc brakes

This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.

Tubeless ready tyres

The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres puncture-proof. Furthermore, the system rules out the problem of Snake Bite ", i.e. puncturing the inner tube by pinching it against the rim."

Full shock absorption

Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.

Drive 1x12

This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds."
