Frame

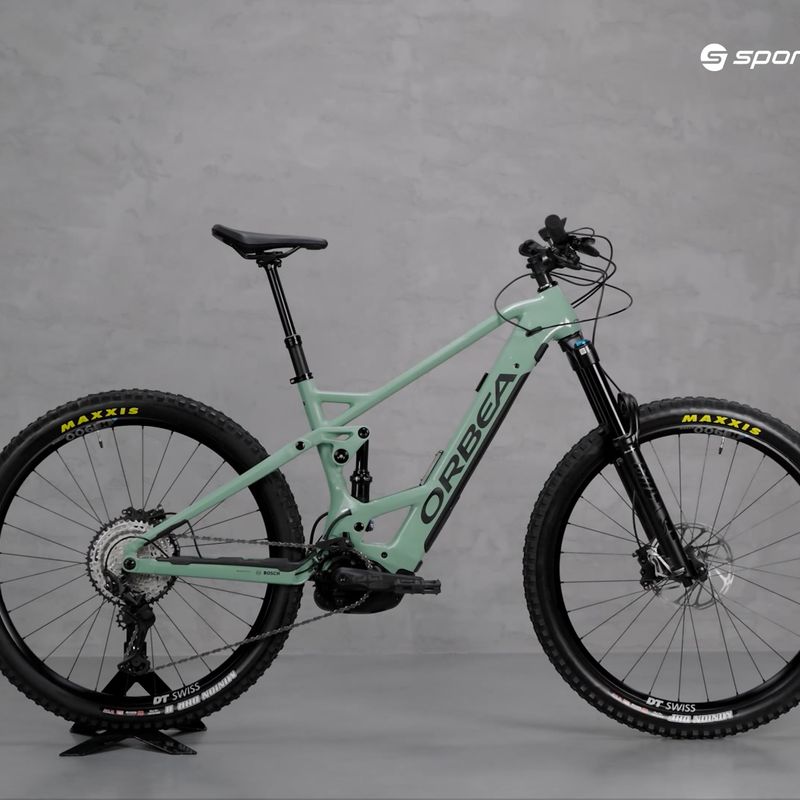

Frame ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4
Frame material Aluminium
Components
Steering wheel OC1 35mm 12mm Rise 780mm
Handlebar support OC1 3D Forged 35mm interface 7º
Depreciation Full
Rudders OC Key Holder
Fork Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized Consult other components
Saddle Fizik Aidon 208x145mm manganese rail
Bar OC MC20 Mountain Control Dropper, 31,6mm
Drive
Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus
Handles Shimano Deore M6100
Crank mechanism E*Thirteen Plus Alu
Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes
Brakes (model) Shimano MT420 Hydraulic Disc
Brake type Hydraulic discs
Wheels
Wheel size 29"
Wheels DT Swiss H-1900 Spline 30c TLR 15/110mm 6-Bolt
Tyres Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Tubeless ready wheels Yes
Tubeless ready tyres Yes
Additional information
Lighting No
Mudguards No
Luggage carrier No
Folding condition of the bike Bike adjusted and pre-assembled
Other data
Sport Bicycles
Brand Orbea
Leading colour Green
Season Year-round
Model/product code Wild FS H10 M34718WA
Purpose MTB
Gender Male, Woman
Country of origin of the brand Spain
Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Model colour 2000055021
Engine model BOSCH Performance CX Cruise (25km/h) BDU450CX
Engine location Central
Engine power 250 W
Maximum torque 85 Nm
Battery type Lithium-ion
Battery capacity 625 Wh
Battery location In the frame
Maximum range 150 km
Charger Bosch Compact Charger
| Size | S/M | L | XL |
| Height (cm) | 155-170 | 165-180 | 178-190 |
| A - Seat tube (mm) | 406 | 444 | 483 |
| B - Horizontal pipe (mm) | 585 | 612 | 645 |
| C - Steerer tube (mm) | 100 | 110 | 125 |
| D - Rear triangle (mm) | 455 | 455 | 455 |
| E - Support height (mm) | 345 | 345 | 345 |
| F - Support lowering (mm) | 30 | 30 | 30 |
| G - Wheelbase (mm) | 1203 | 1232 | 1268 |
| H - Head angle | 65,5 | 65,5 | 65,5 |
| I - Seat tube angle (°) | 76 | 76 | 76 |
| J - Crossover (mm) | 725 | 740 | 765 |
| K - Reach (mm) | 430 | 455 | 485 |
| L - Stack (mm) | 621 | 630 | 644 |
| M - Fork (mm) | 570 | 570 | 570 |
Advantages
Aluminium frame
The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.
Hydraulic disc brakes
The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
Tubeless ready tyres
Thanks to the use of Tubeless Ready (TLR) technology, the tyres are resistant to punctures and lower pressures can be applied. Furthermore, the system eliminates the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching against the rim.
Full shock absorption
Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.
Drive 1x12
The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
29" wheels
The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
