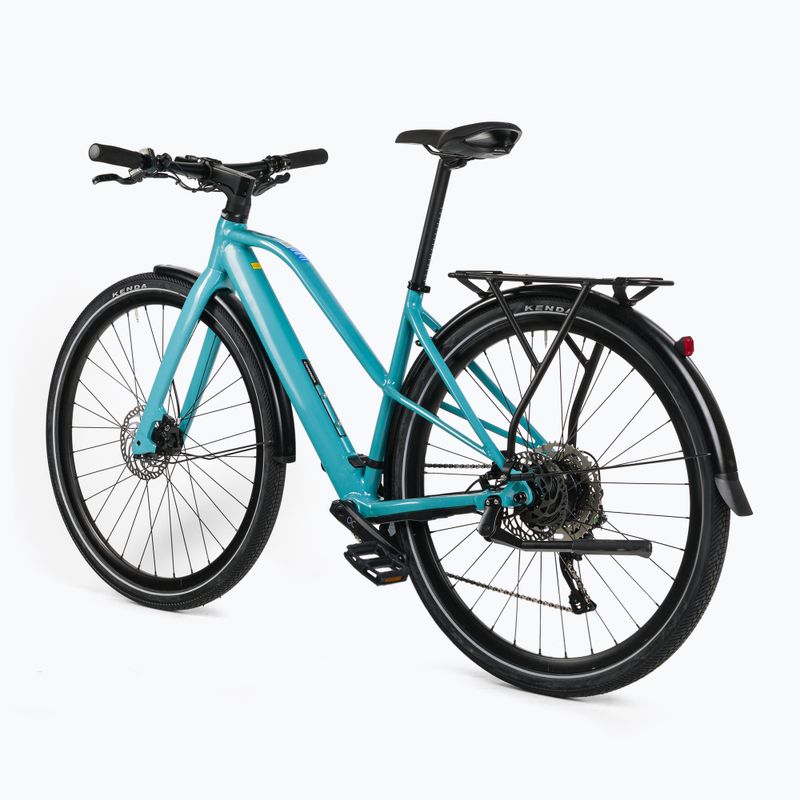

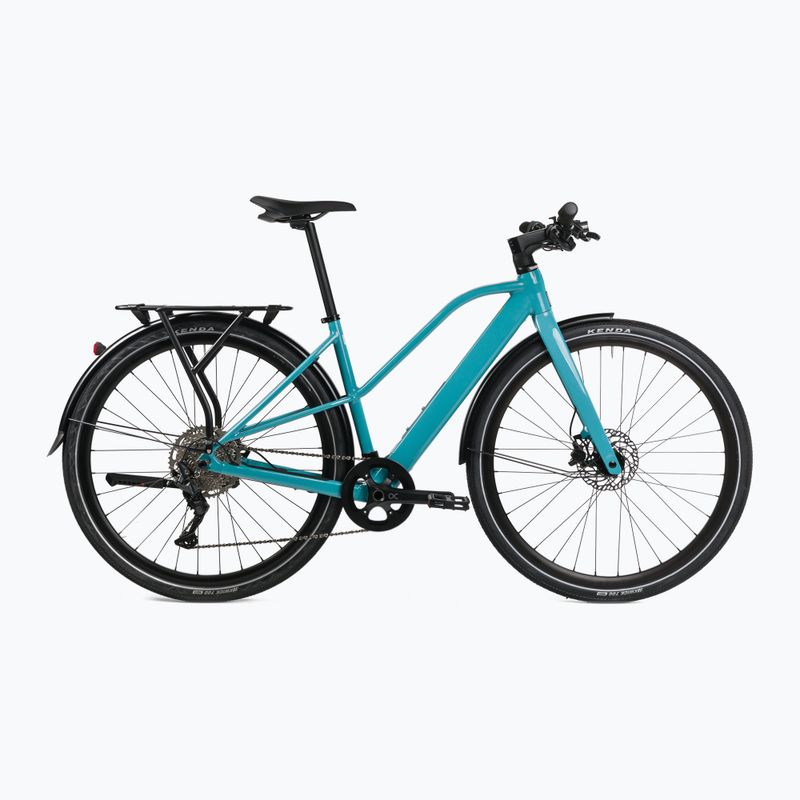

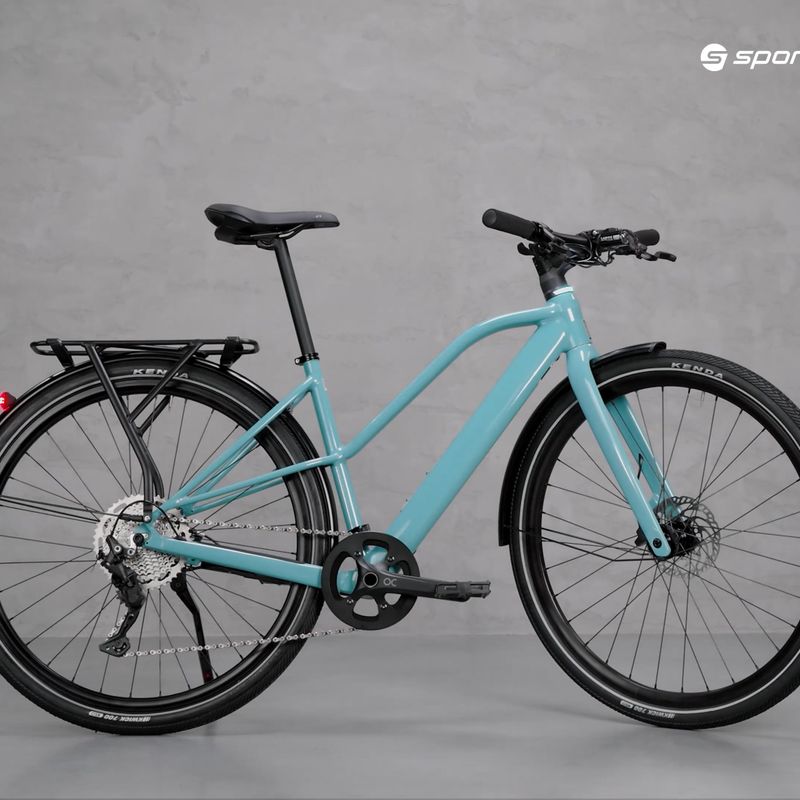

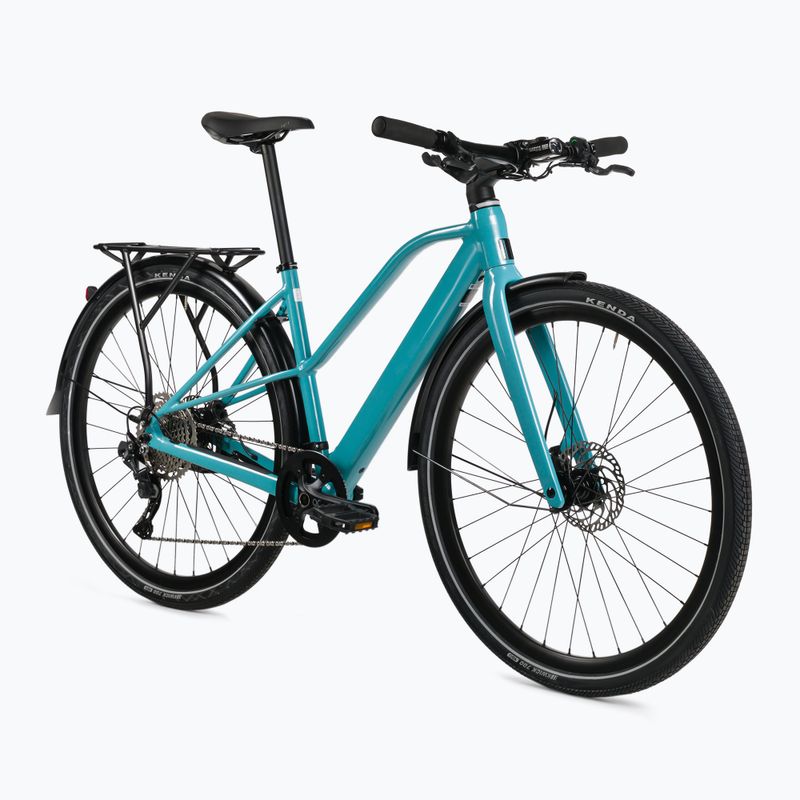

Orbea Vibe Mid H30 blue electric bike M31253YG

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Vibe Mid H30 M31253YG

Leading colour Blue

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

Crank mechanism OC 42t, w/Chainguard

Wheel size 28"

Derailleurs 1x10

Sport Bicycles

Cassette / Freewheel Shimano CS-M4100 11-46t 10-Speed

Rear derailleur (model) Shimano Deore M5120 SGS Shadow Plus

Handles Shimano Deore M4100

Depreciation No

Battery location In the frame

Fork material Carbon

Brakes (model) Magura MT30 Hydraulic Disc Easy Route Connection

Purpose City/urban

Maximum range 70 km

Chain KMC X10

Handlebar support OC1 31.8mm interface -6º

Bar Alloy 27.2 Offset 20

Tyres Kenda K1052 700x45C Reflective type+puncture protection

Frame material Aluminium

Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm

Charger Mahle X35

Engine model Ebikemotion X35 Plus 25kmh

Saddle Selle Royal Lift 1404 HRN 266x170mm

Weight of bike (estimated) 22,5 kg

Brake type Hydraulic discs

Number of gears 10

Wheels Ready GR

Battery capacity 6,9Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub

Maximum torque 40 Nm

Battery type Lithium-ion

Maximum user weight 120 kg

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Orbea Vibe Mid H30 blue electric bike M31253YG 2

Orbea Vibe Mid H30 blue electric bike M31253YG

Sizes

Size	S	L
Height (cm)	150-165	175-190
A - Seat tube (mm)	455	525
B - Horizontal pipe (mm)	517	562
C - Steerer tube (deg)	108	160
D - Rear triangle (mm)	435	435
E - Support height (mm)	280	280
F - Support lowering (mm)	76	76
G - Wheelbase (mm)	1026	1040
H - Head angle	70	71,5
I - Saddle angle	75	74
J - Crossover (mm)	723	747
K - Reach (mm)	380	400
L - Stack (mm)	546	600
M - Fork (mm)	410	410

Product description

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
