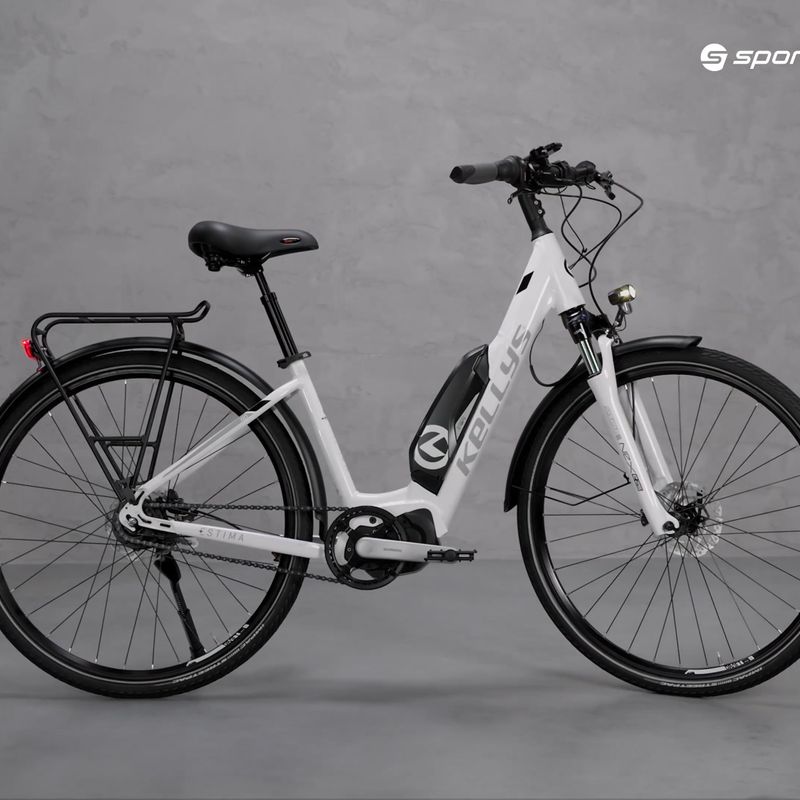

Kellys Estima 40 504Wh white electric bike ESTIMA 40 (ESTIMA 40)

Frame

Frame KELLYS e-FRAME City Aluminium alloy monotube, semi-integrated battery, tapered HT, integrated kickstand mount

Frame material Aluminium

Components

Steering wheel KALLOY RiseBar - diam 31.8mm / width 640mm

Handlebar support PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 85mm (S), 105mm (M)

Depreciation Front

Fork SR SUNTOUR NEX-E25 NLO, 63mm, coil spring

Saddle SELLE ROYAL Freedom Royalgel

Bar KALLOY suspension - diam 30.9mm / length 300mm (S), 350mm (M)

Drive

Derailleurs 1x8

Number of gears 8

Rear derailleur (model) SHIMANO Nexus C6001-8

Handles SHIMANO Nexus SL-C6000-8 Revoshift

Crank mechanism SHIMANO E5000 (38T) - 170mm

Chain KMC Z1

Brakes

Brakes (model) Shimano MT200

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels KLS Draft Disc 622x21 rims

Tyres IMPAC Streetpac 47-622 (28x1.75) ReflectiveLine

Hubs Shimano HB-TX505- front hub, HIMANO Nexus C6001-8 Disc Center Lock / coaster brake- rear hub

Tubeless ready wheels No

Tubeless ready tyres No

Additional information

Lighting Yes

Mudguards Yes

Luggage carrier Yes

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Kellys

Leading colour White

Season Year-round

Model/product code Estima 40 504Wh ESTIMA 40

Purpose Trekking

Gender Male, Woman

Country of origin of the brand European Union

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model colour 2000044122

Engine model SHIMANO STEPS E5000, 36V

Engine location Central

Engine power 250 W

Maximum torque 40 Nm

Battery type Lithium-ion

Battery capacity 504 Wh

Battery location In the frame

Maximum range 110 km

Size	S	M
Height (cm)	159-173	169-183
S/T (mm)	420	480
L (mm)	600	629
reach (mm)	371	390
stack (mm)	630	658
H/T (mm)	160	190
S/T (°)	70	70
H/T (°)	70	70
BB (mm)	65	65
RC (mm)	470	470
WB (mm)	1090	1119

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
