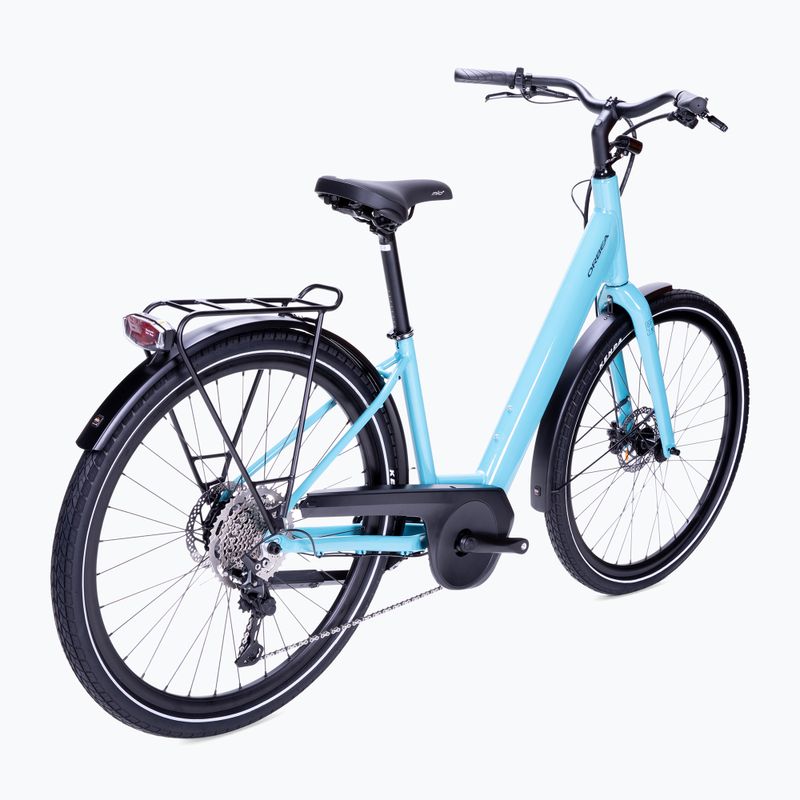

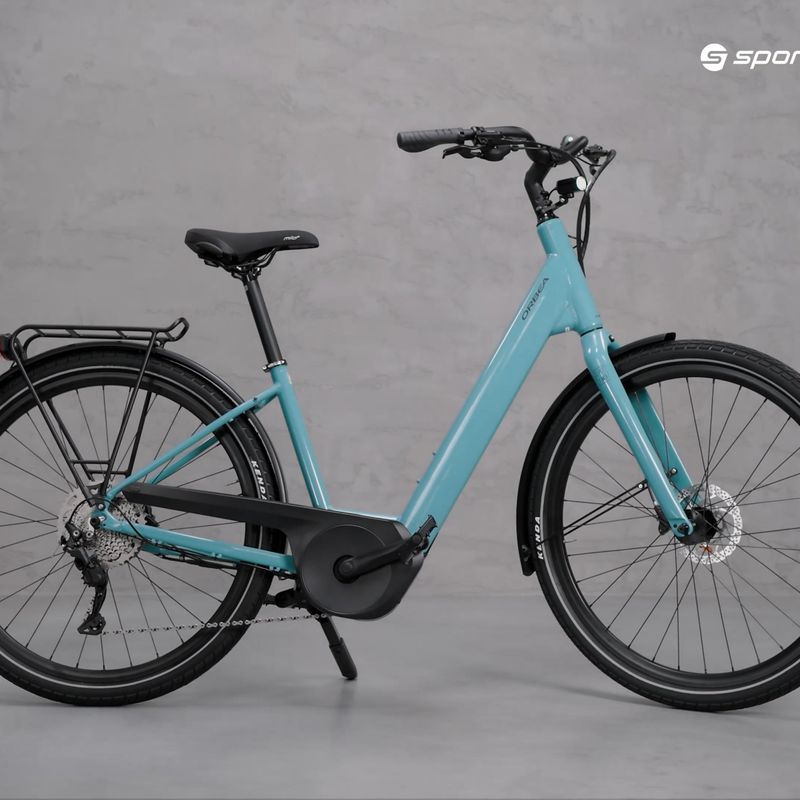

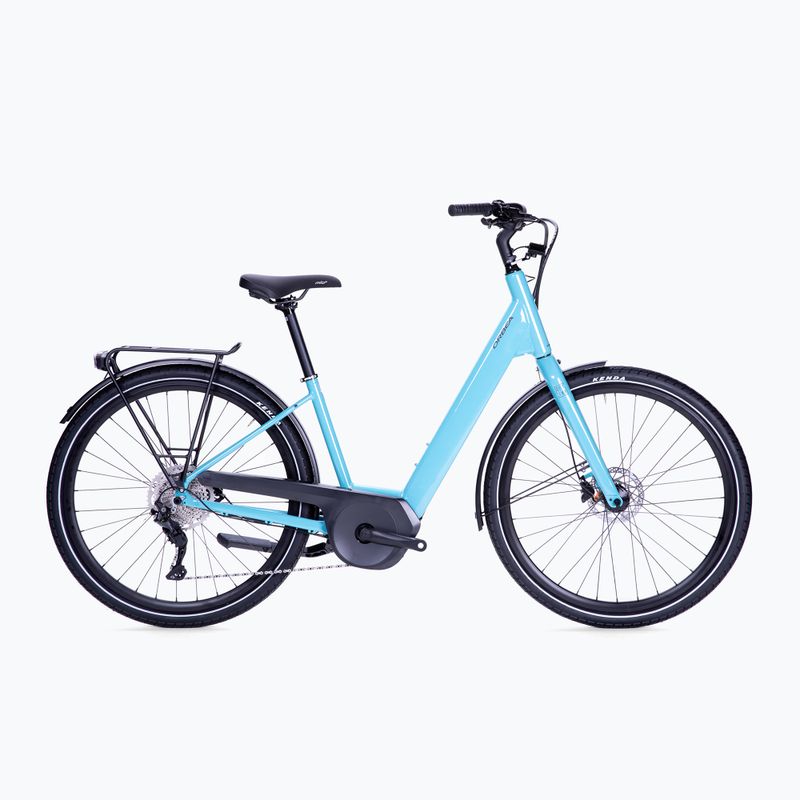

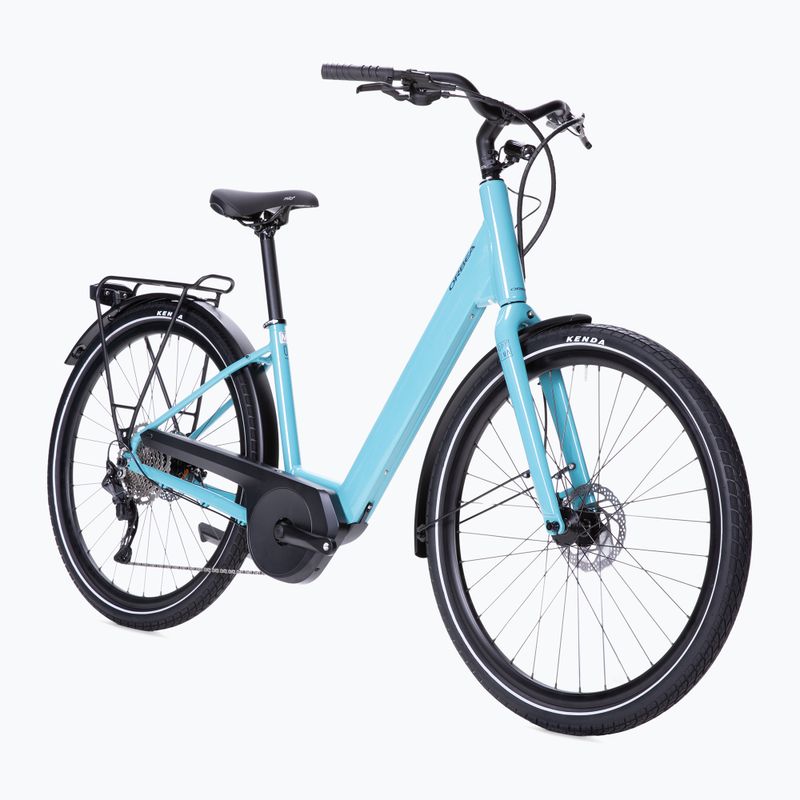

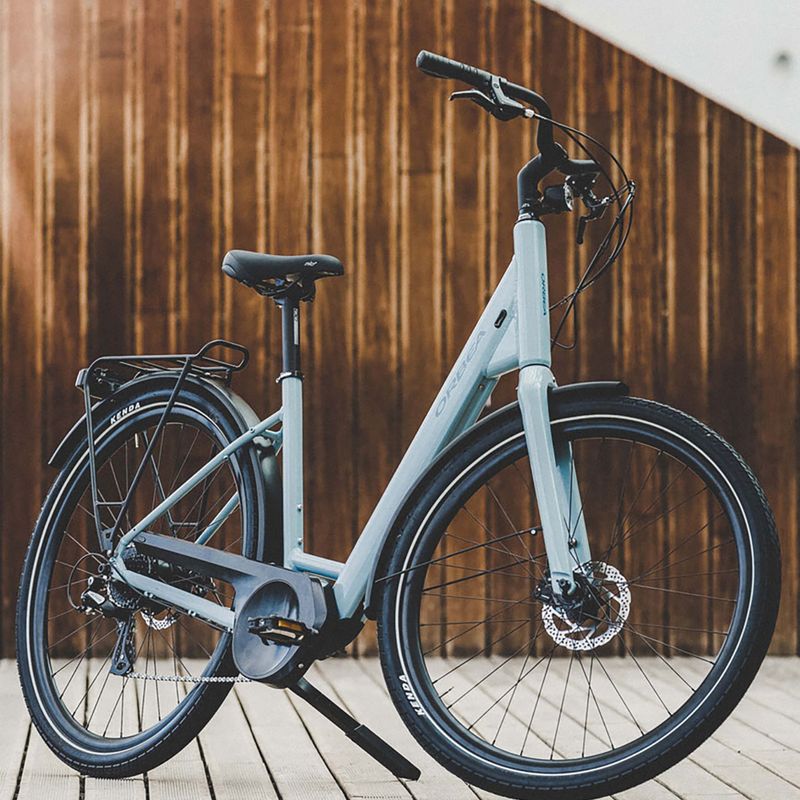

Orbea Optima E40 blue electric bicycle

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Optima E40 M30418XX

Leading colour Blue

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Engine location Hub

Engine power 250 W

Wheel size 28"

Frame Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery

Derailleurs 1x10

Sport Bicycles

Cassette / Freewheel Shimano CS-M4100 11-46t 10-Speed

Rear derailleur (model) Shimano Deore M5120 SGS Shadow Plus

Handles Shimano Deore M4100

Depreciation No

Battery location In the frame

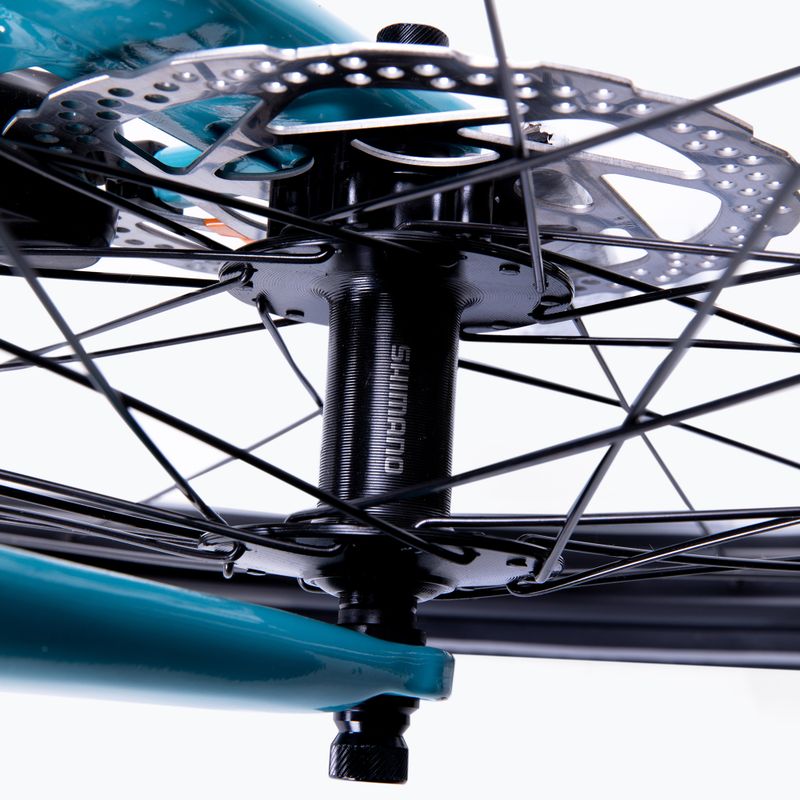

Brakes (model) Shimano MT200 Hydraulic Disc

Purpose City/urban

Maximum range 70 km

Chain KMC X10

Bar Alloy 31.6x400mm Offset 0

Tyres Kenda 1172 700x50c

Frame material Aluminium

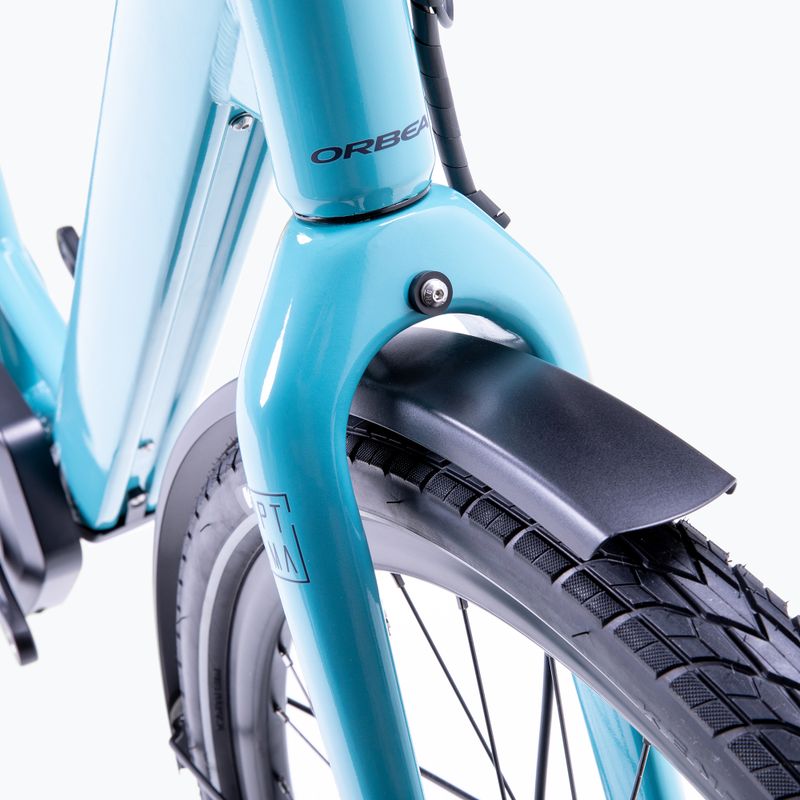

Fork Optima 400mm Alloy Post mount

Charger Mahle X35, 100 -240V 42V 2A

Engine model Ebikemotion X35 Plus 25kmh

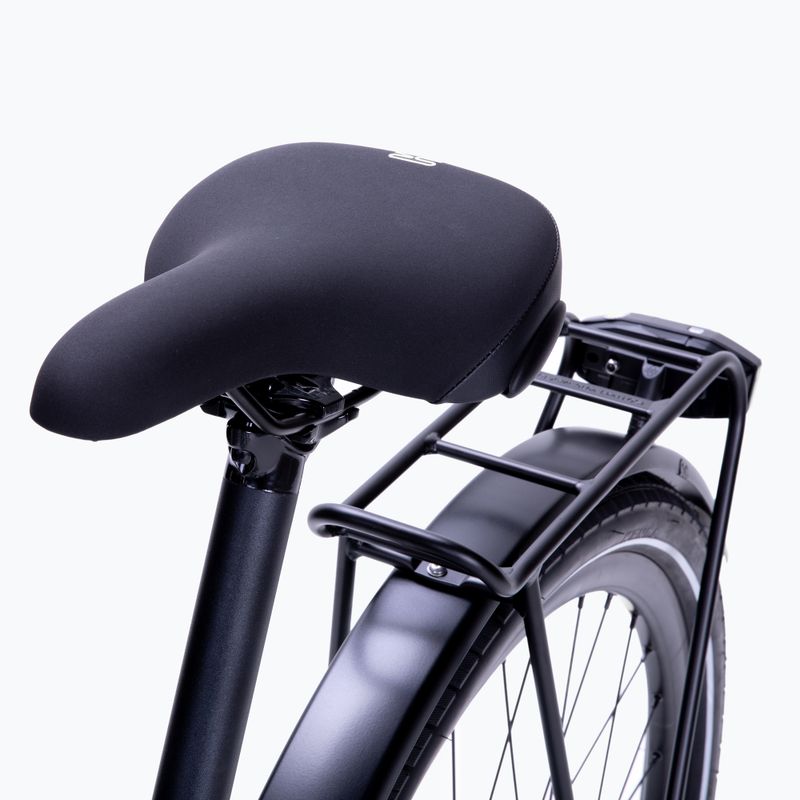

Saddle Selle Royal Milo Plus DR

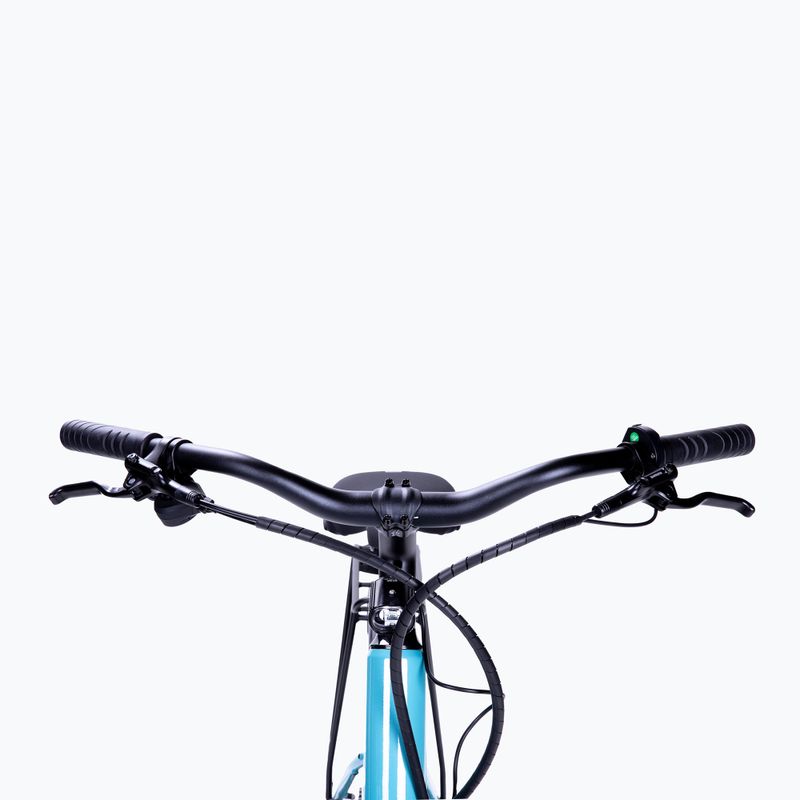

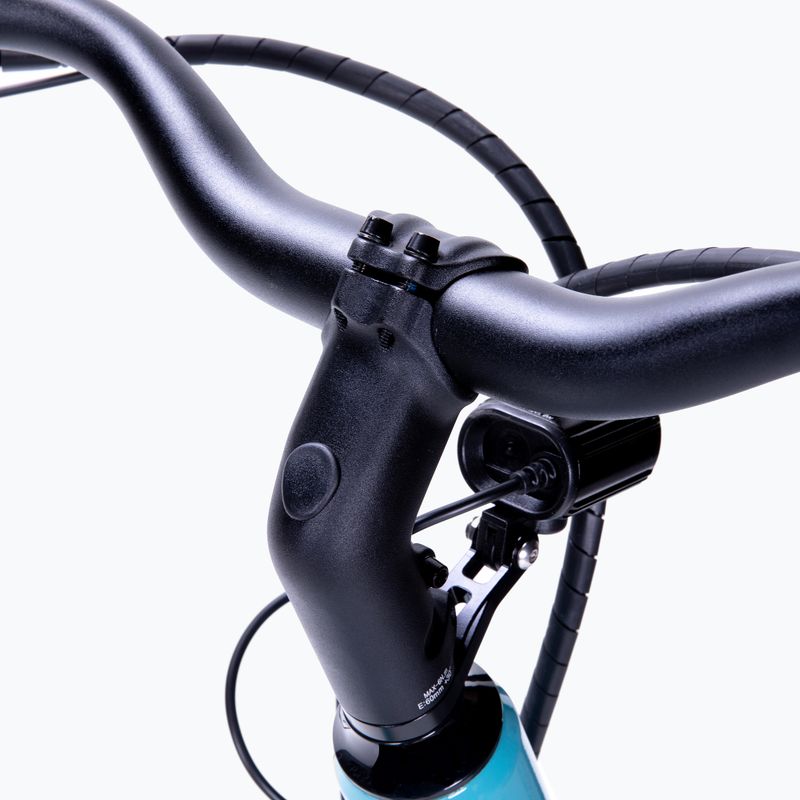

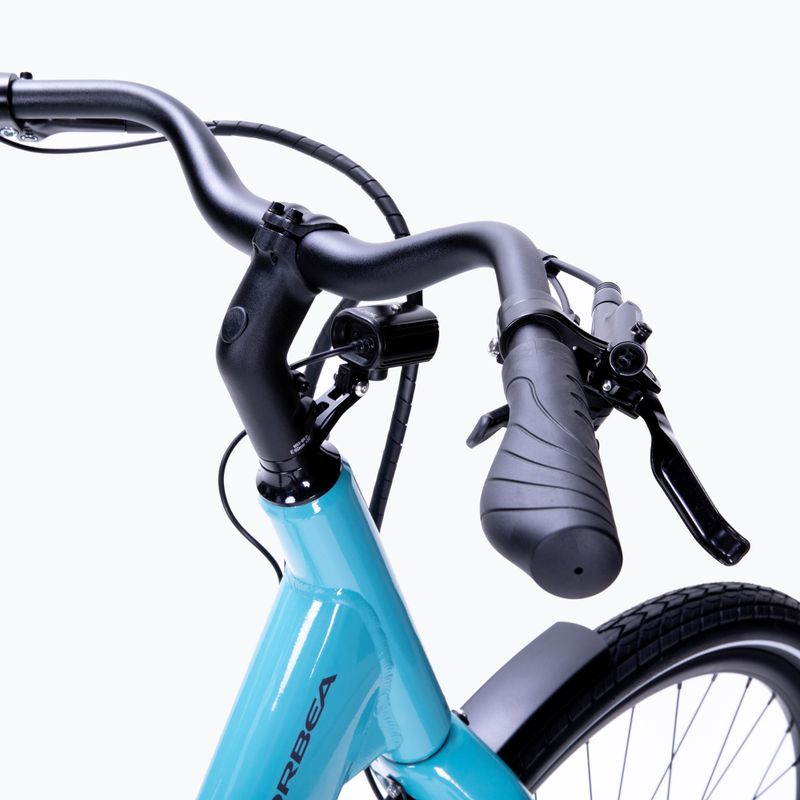

Steering wheel Orbea City Riser Alu 640mm

Brake type Hydraulic discs

Number of gears 10

Wheels READY GR 29-700 C

Battery capacity 6,9Ah

Stan złożenia roweru Bike adjusted and pre-assembled

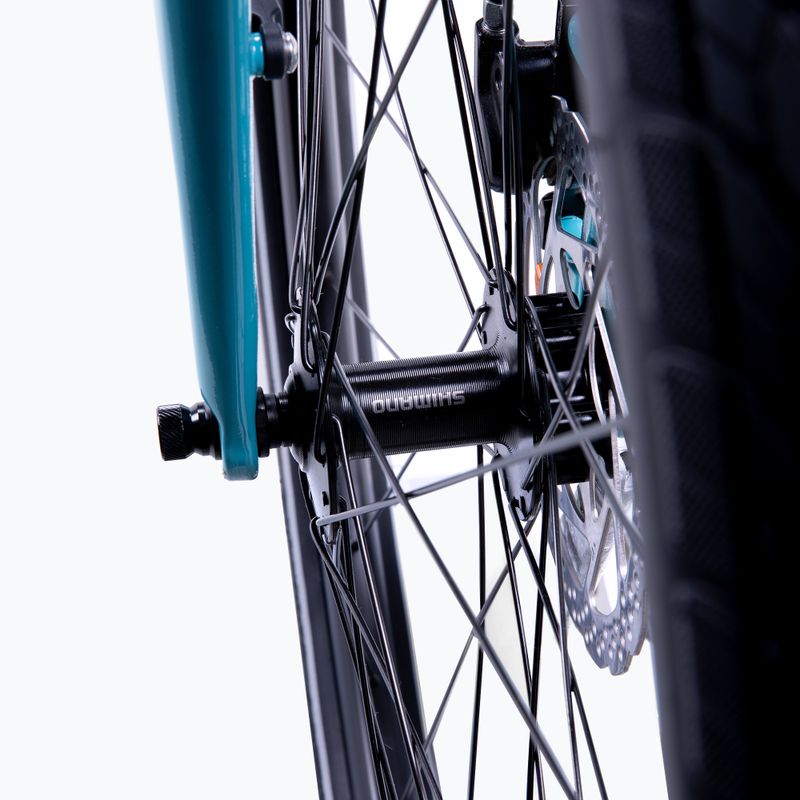

Hubs Safety Lock - front hub

Maximum torque 40 Nm

Battery type Lithium-ion

Orbea Optima E40 blue electric bicycle 2

Sizes

Size	S	M	L
Height (cm)	150-165	165-180	180-200
A - Seat tube (mm)	405	450	500
B - Horizontal pipe (mm)	625	648	693
C - Steerer tube (deg)	190	240	270
D - Rear triangle (mm)	510	510	510
E - Support height (mm)	272,5	272,5	272,5
F - Support lowering (mm)	95	95	95
G - Wheelbase (mm)	1163	1187	1233
H - Head angle	70	70	70
I - Saddle angle	72	72	72
J - Crossover (mm)	397	405	440
K - Reach (mm)	662	709	737
L - Stack (mm)	433	433	433
M - Fork (mm)	55	55	55

Product description

Advantages

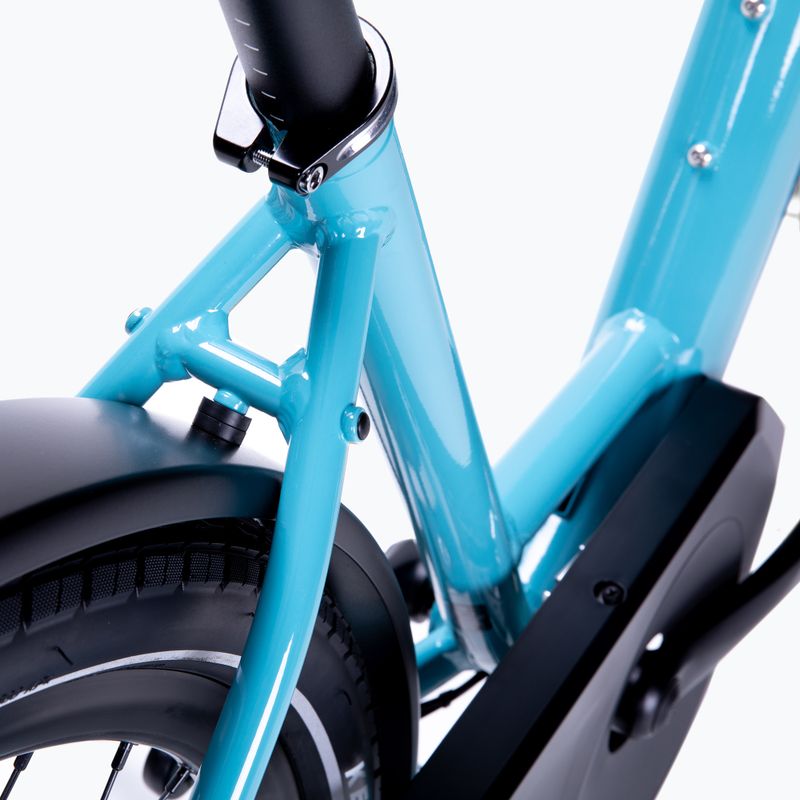

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

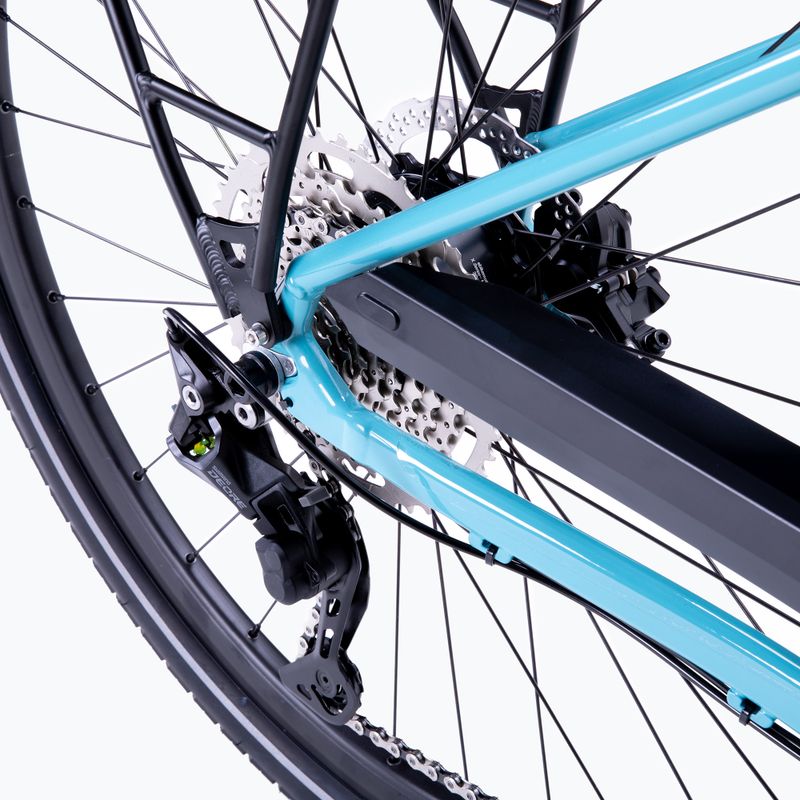

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
