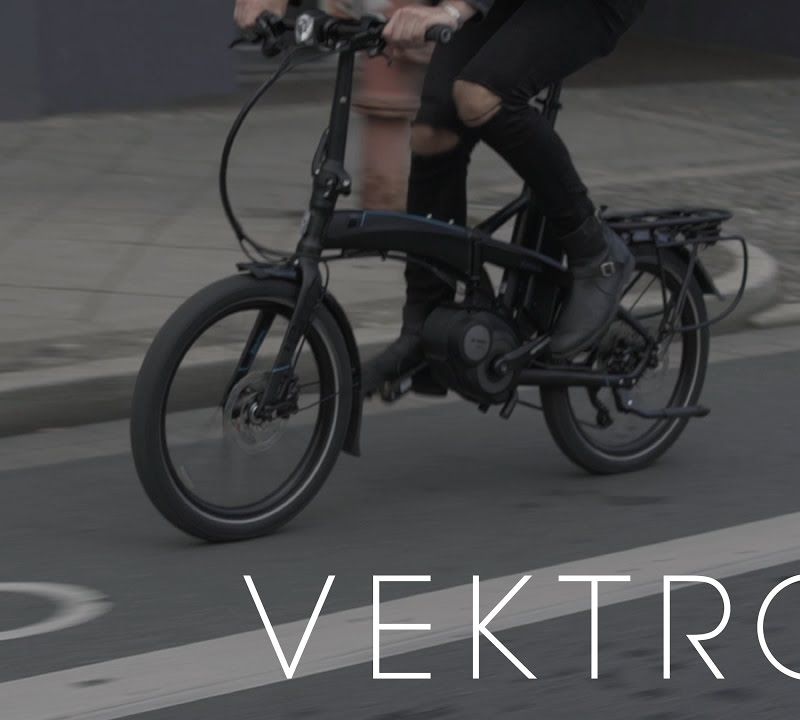

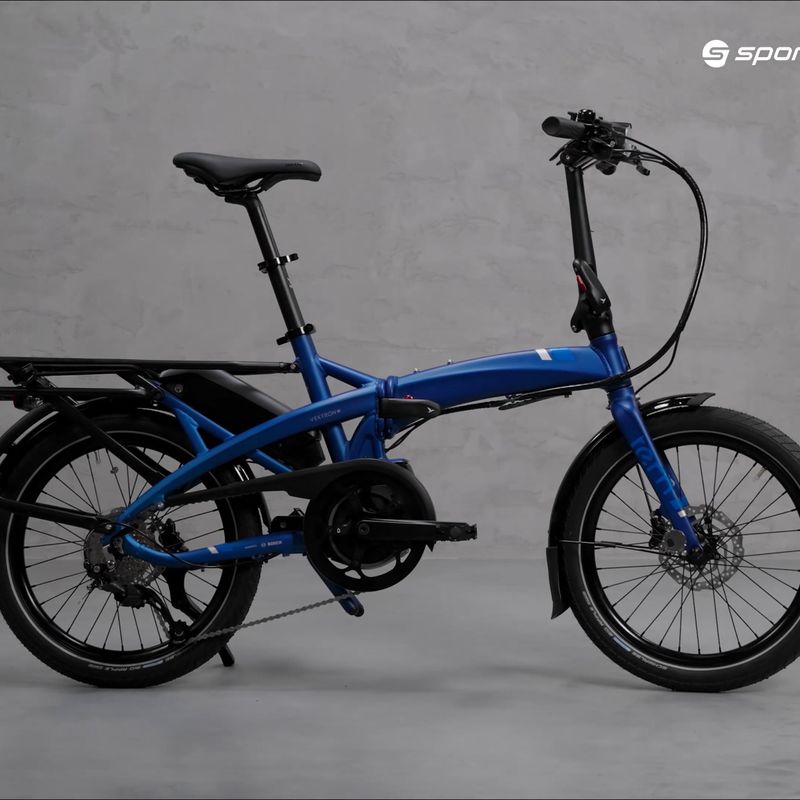

Tern Vektron Q9 Active electric bicycle blue

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code VEKTRON Q9 ACTIVE

Leading colour Blue

Brand Tern

Country of origin of the brand Outside the European Union

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Crank mechanism Vektron custom, forged 6061-AL crankarm

Wheel size 20"

Frame Foldable, Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies, Vektron G2 Frame

Derailleurs 1x9

Sport Bicycles

Cassette / Freewheel Shimano 11-32T, 9 spd

Rear derailleur (model) Shimano Alivio Shadow

Handles Shimano Alivio, 1 x 9 spd, trigger

Depreciation Front

Battery location Under saddle

Handlebar material Aluminium

Brakes (model) Shimano AMT200KLF9RX080 (hydraulic)

Purpose City/urban

Maximum range 70 km

Chain 9 spd, DHT for eBike, GST corrosion resistant coating

Tubeless ready tyres No

Bar Tern Telescope, 34.9 mm, Lite 2014-AL

Tyres Schwalbe Big Apple

Frame material Aluminium

Fork Tern Tarsus, 6061-Al

Charger Bosch Compact Charger

Engine model Bosch Active Line

Saddle Tern Porter

Weight of bike (estimated) 21,9 kg

Steering wheel Flat bar, 6061-AL

Brake type Hydraulic discs

Number of gears 9

Battery capacity 11,1Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Maximum torque 40 Nm

Battery type Lithium-ion

Maximum speed 25 km/h

Tubeless ready wheels No

Maximum user weight 105 kg

Rudders Tern Flux

Tern Vektron Q9 Active electric bicycle blue 2

Tern Vektron Q9 Active electric bicycle blue

Sizes

Height (cm)	147-195
Size after folding (cm)	41 x 86 x 68
Distance from saddle to pedals (cm)	67-110
Seatpost to handlebar distance (cm)	62-69

Product description

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
