EcoBike MX LG electric bike black 1010305

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code MX 14Ah LG 1010305

Leading colour Black

Brand EcoBike

Country of origin of the brand Poland

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Wheel size 28"

Frame 20", of hydroformed aluminium

Derailleurs 1x7

Sport Bicycles

Cassette / Freewheel Shimano ASMGEAR20SC

Rear derailleur (model) Nexus 7-speed

Handles Shimano Nexus SL-C3000-7

Depreciation Front

Battery location In the frame

Brakes (model) Shimano AMT200KLF9RX080 (hydraulic)

Purpose Trekking

Maximum range 135 km

Chain KMC Z410A 106L

Bar Promax SP 252 (27,2 mm x 350 mm)

Tyres 28 x 1.75 Schwalbe Energizer Plus

Frame material Aluminium

Fork SunTour NEX HLO-DS 700C

Charger 220-240V 48V 2A

Engine model DAPU

Saddle Selle Royal Lookin Basic-A230

Weight of bike (estimated) 24,9 kg

Steering wheel Promax HB-T305

Maximum engine power 760 W

Brake type Hydraulic discs

Number of gears 7

Wheels Reinforced three-chamber wheels, Sapim spokes, 28"

Battery capacity 14Ah

Stan złożenia roweru Bike adjusted and pre-assembled

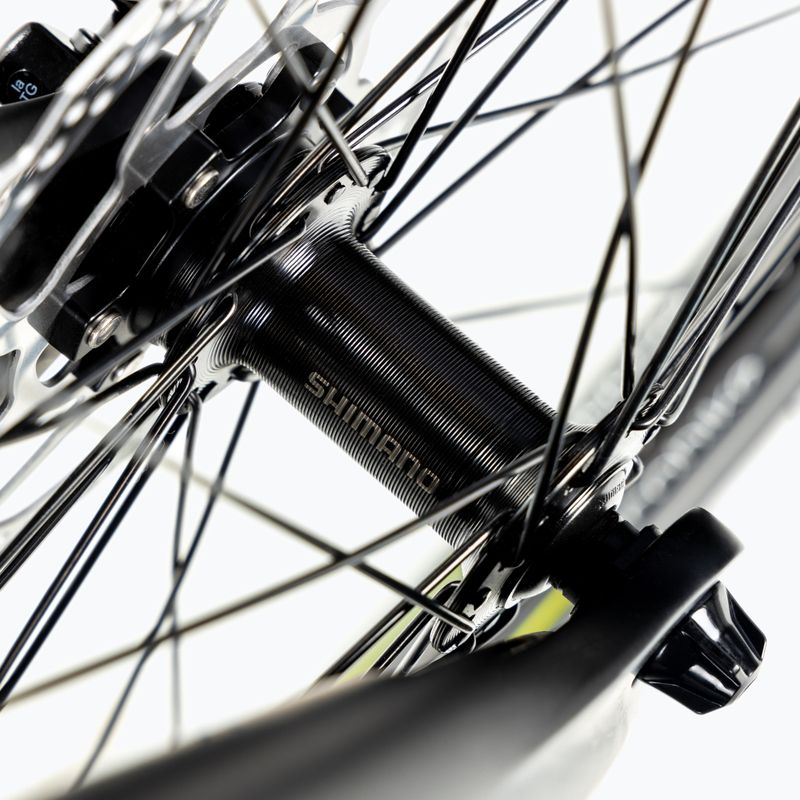

Hubs Shimano AHBM4050AL - front hub

Maximum torque 90 Nm

Battery type Lithium-ion

Maximum speed 45 km/h ( assistance limited to 25 km/h in the settings)

Maximum user weight 125 kg

EcoBike MX LG electric bike black 1010305 2

EcoBike MX LG electric bike black 1010305

Sizes

Frame size	20"
Height (cm)	175-190
A - Rura pozioma (mm)	610
B - Rura sterowa (mm)	162
C - Rura podsiodłowa (mm)	508
D - Wheel base (mm)	1136,8
E - Kąt siodełka (°)	73
F - Kąt główki (°)	70

Product description

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
