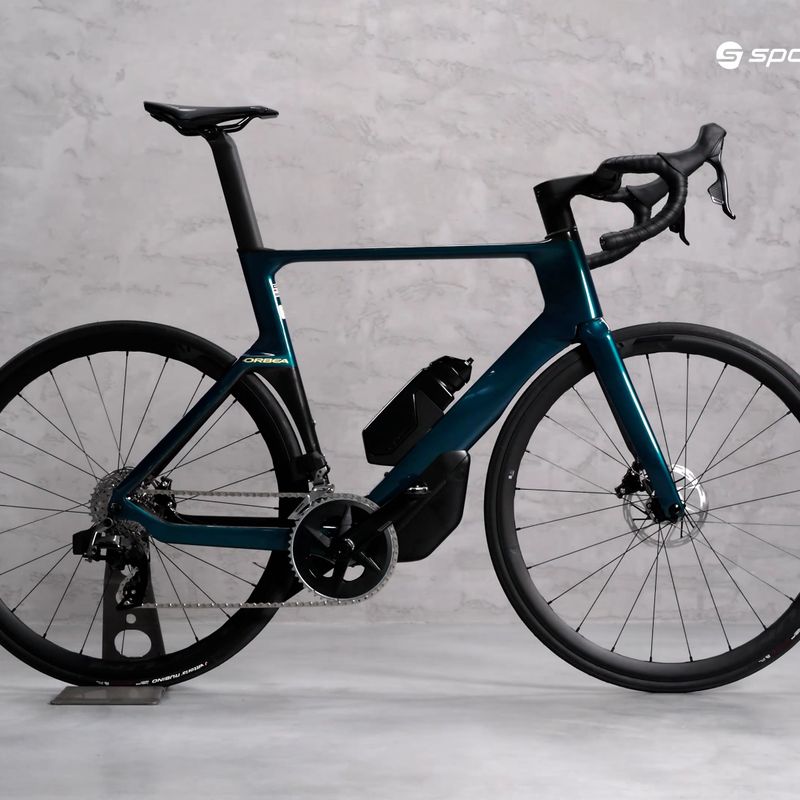

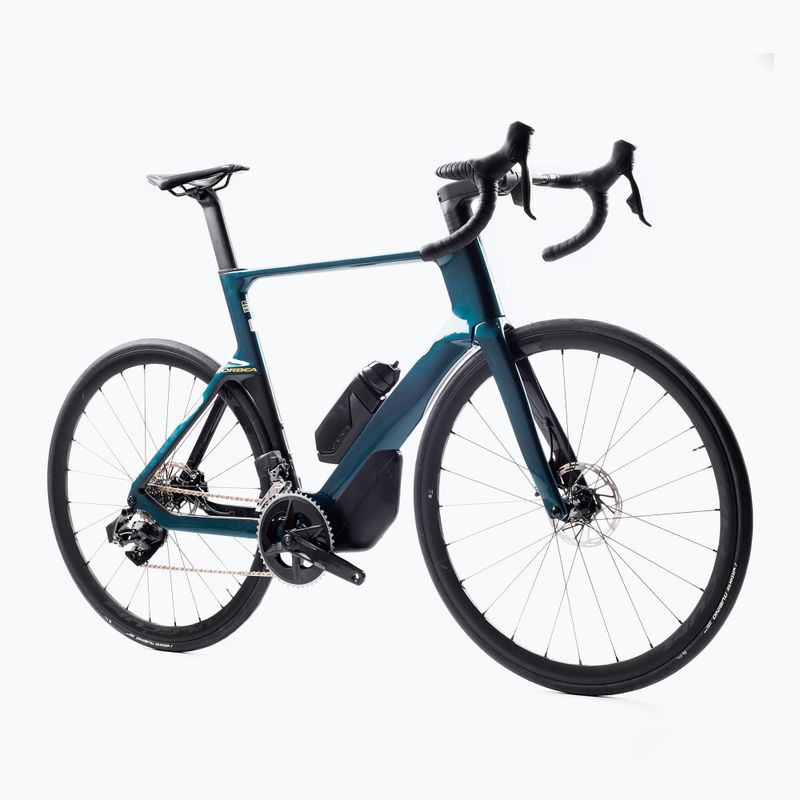

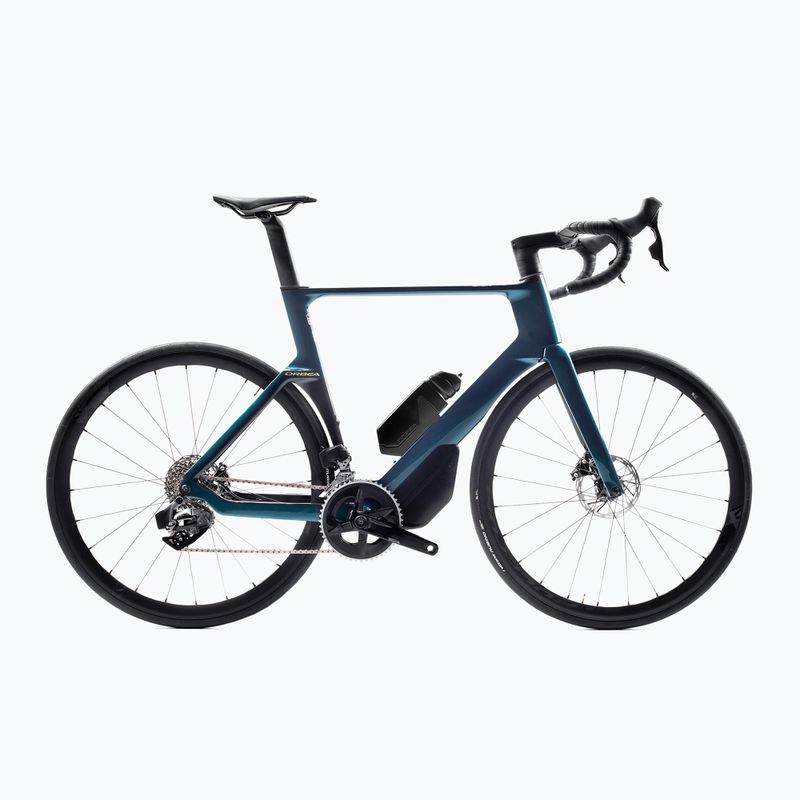

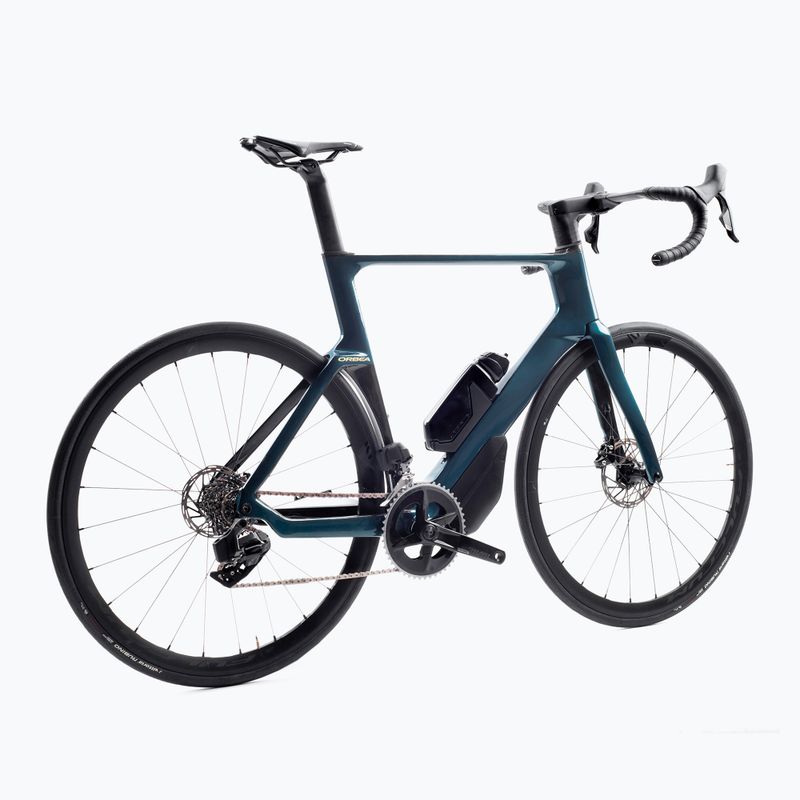

Orbea Orca Aero M31e LTD PWR road bike blue M13457D7

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code ORCA AERO M31E LTD PWR M13457D7

Leading colour Blue

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

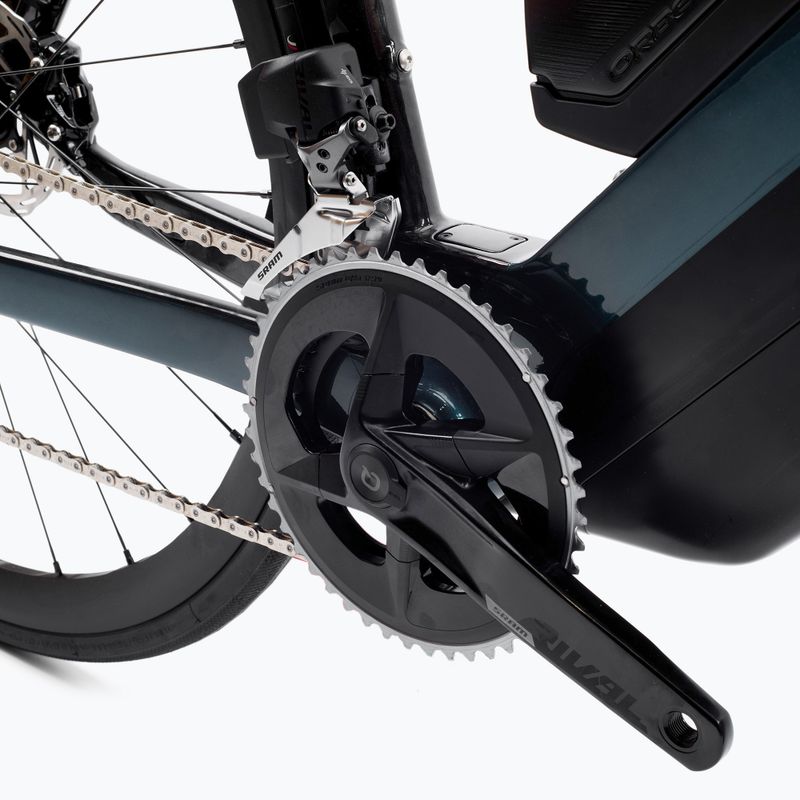

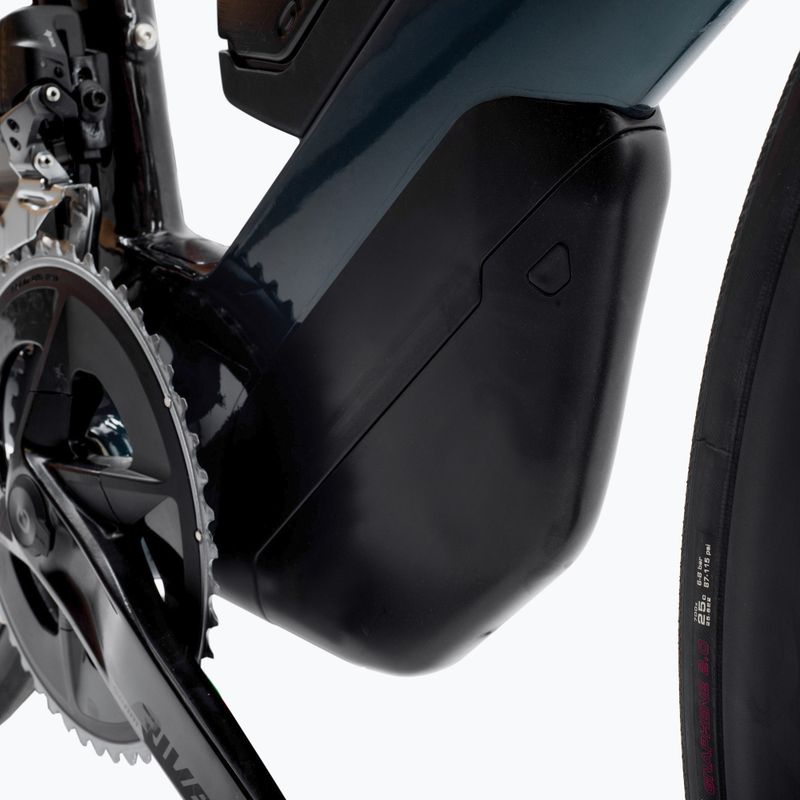

Crank mechanism SRAM Rival AXS Powermeter Dub 35x48t

Wheel size 28"

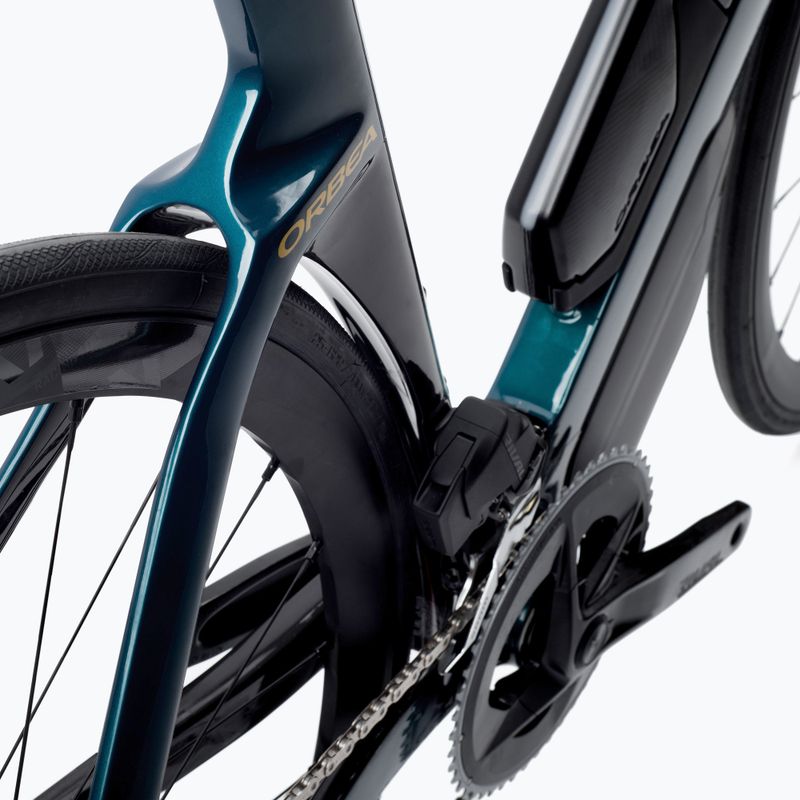

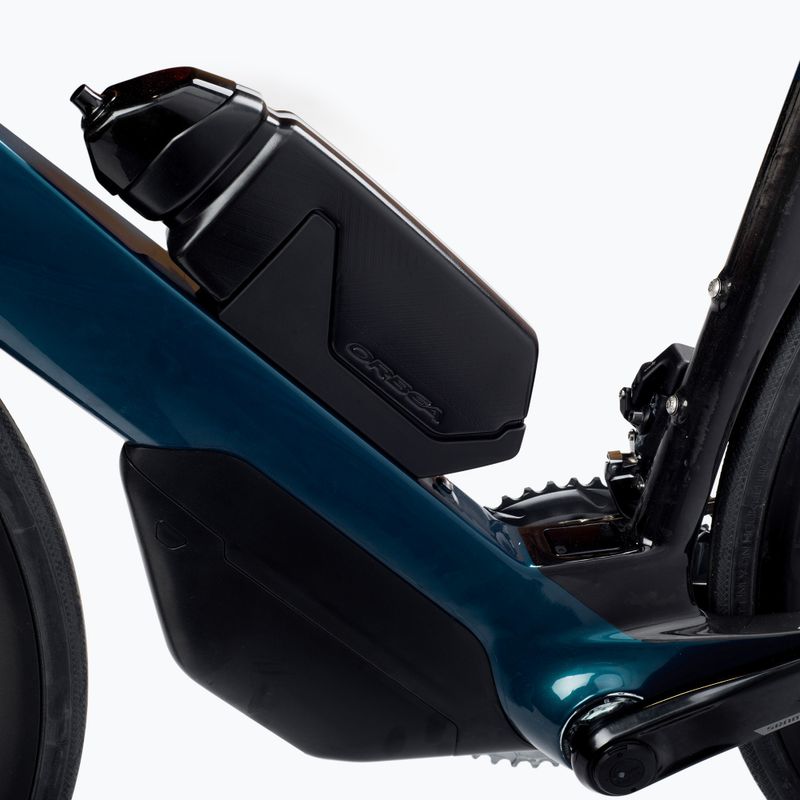

Frame Orbea Orca Aero Carbon OMX disc, monocoque construction, internal cable routing, EC/DC compatible

Derailleurs 2x12

Cassette / Freewheel SRAM XG-1250 10-30t 12-Speed

Sport Bicycles

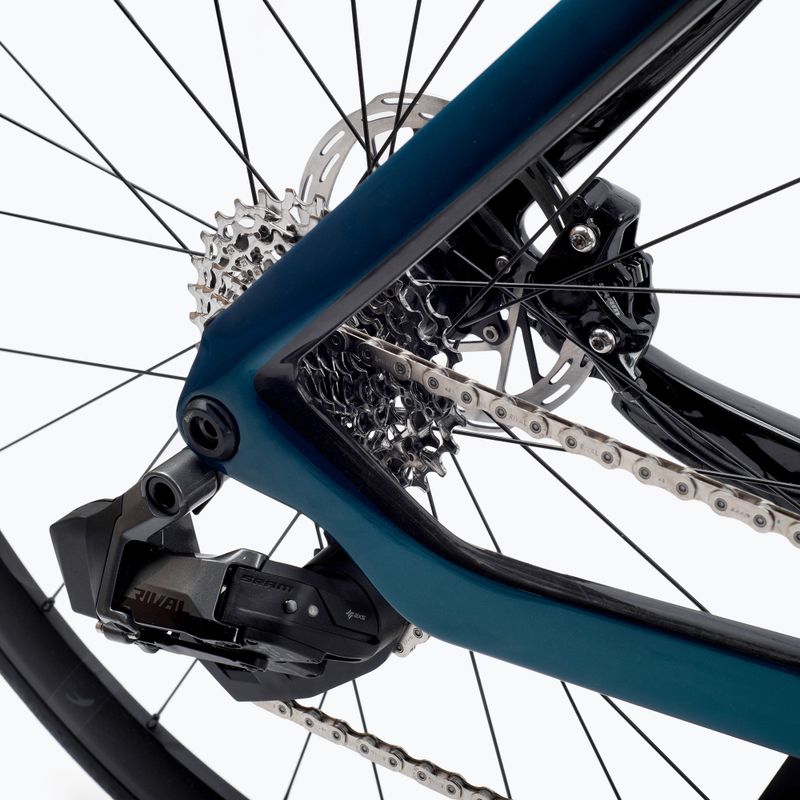

Rear derailleur (model) SRAM Rival eTAP AXS

Handles SRAM RIVAL E-TAP AXS

Chain SRAM Rival 12-Speed

Type of derailleur Electronic

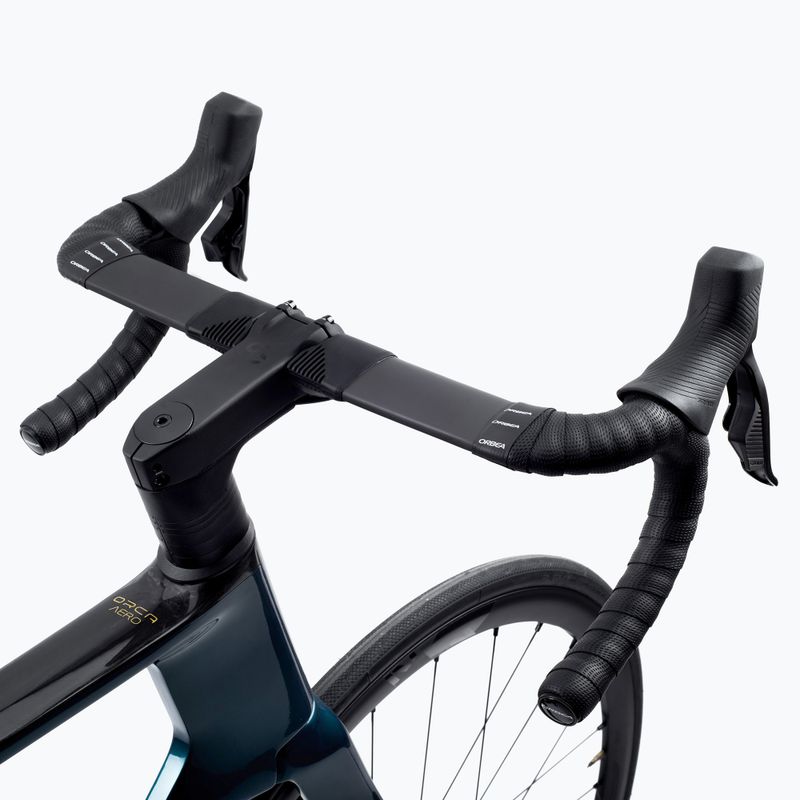

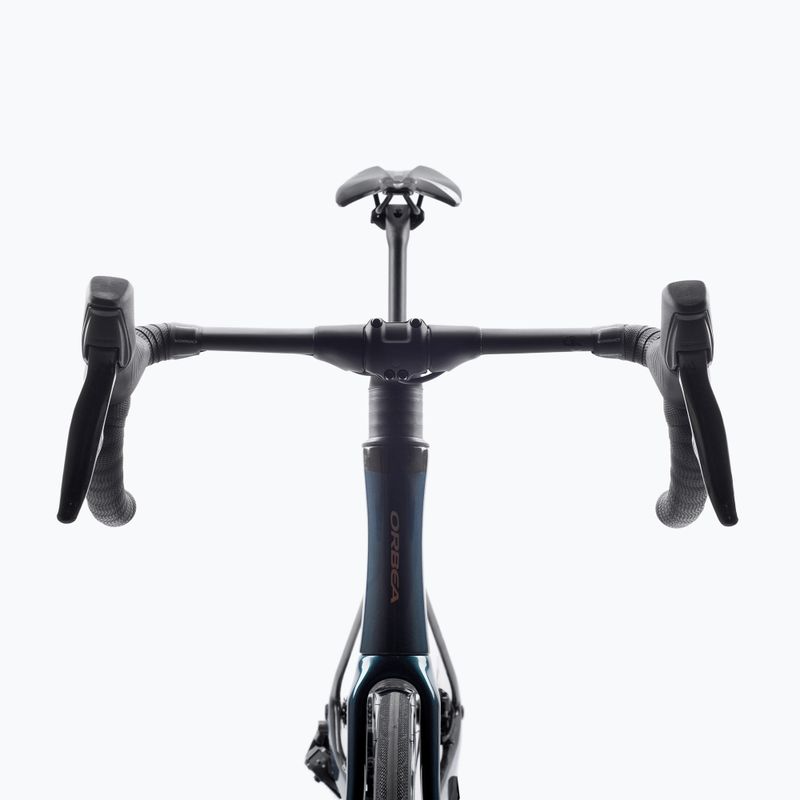

Bar Orbea Aero OMX

Frame material Carbon

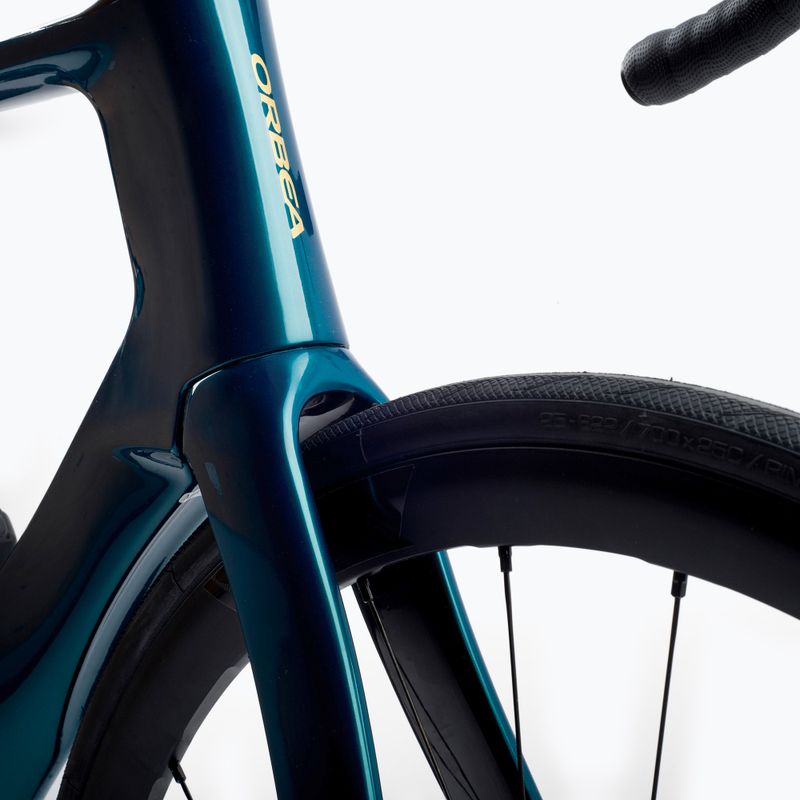

Fork Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Type of Product Aero/Race

Brakes (model) SRAM Rival eTap AXS

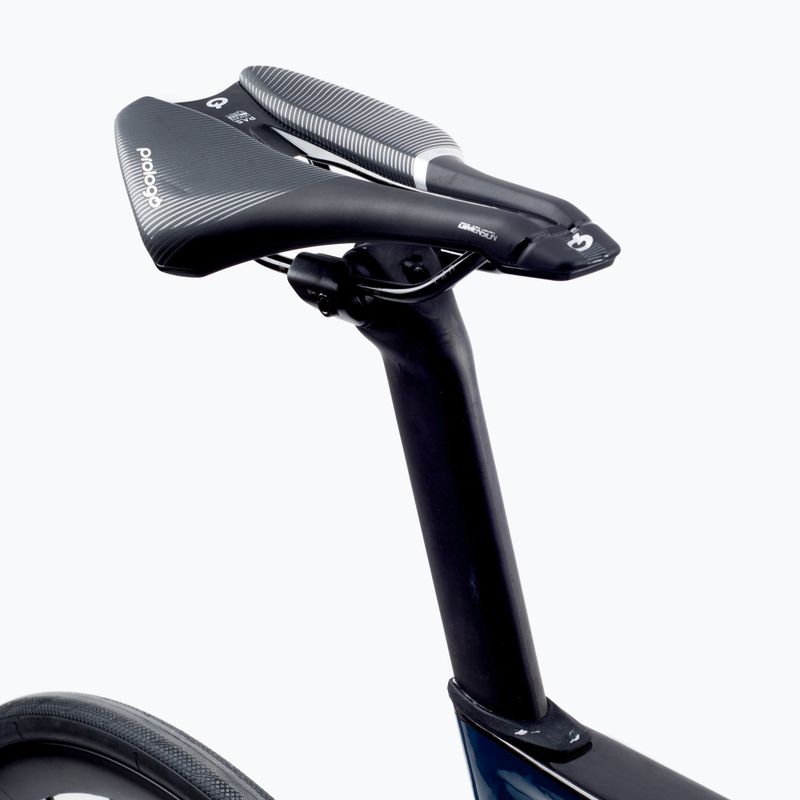

Saddle Prologo Dimension T4.0 size143 mm

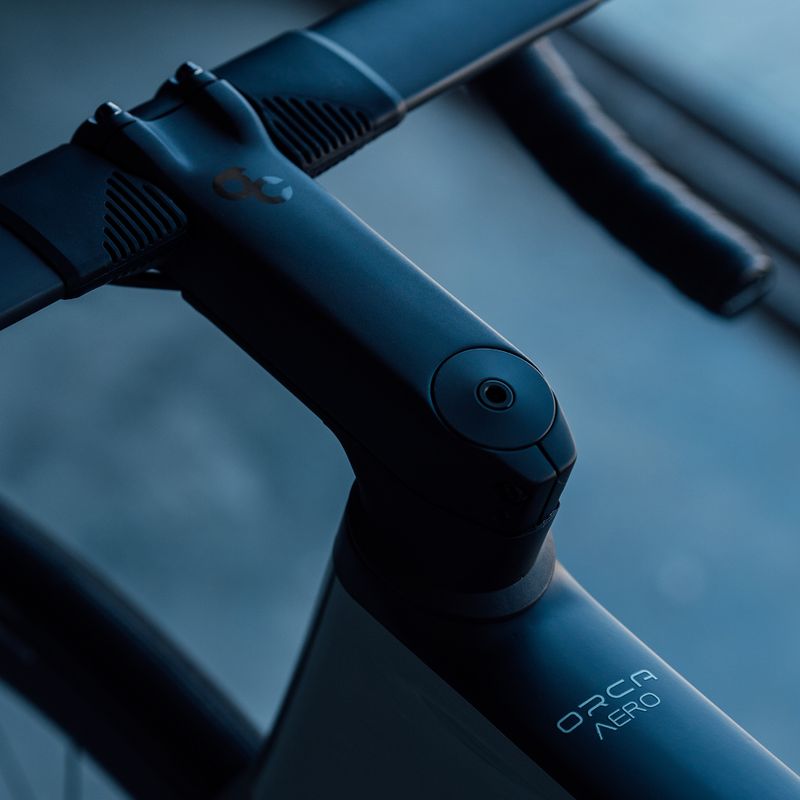

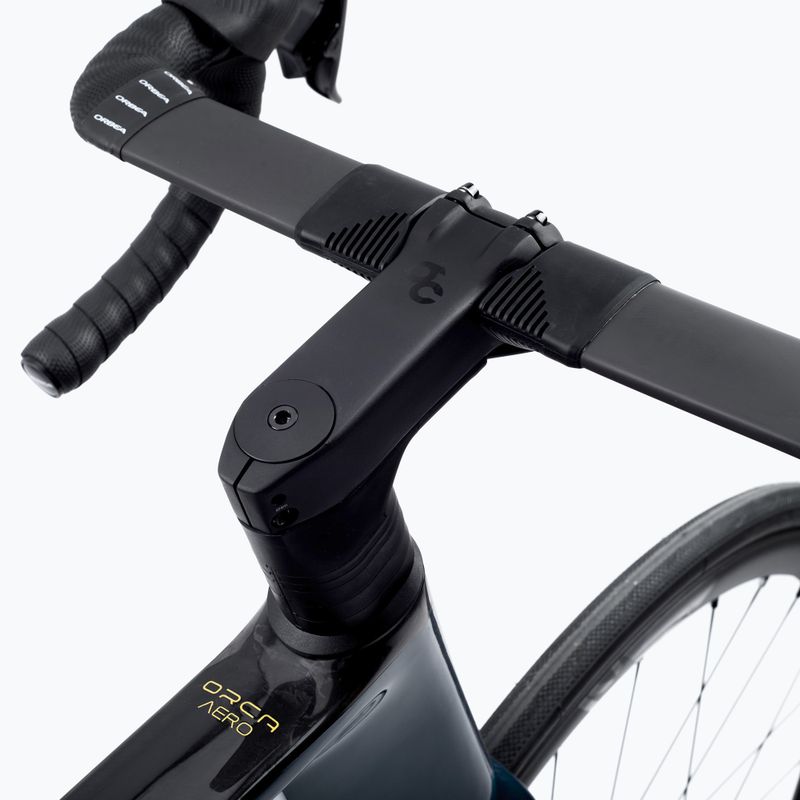

Steering wheel OC3 Aero Road Carbon, reach 80mm, drop 125mm

Brake type Hydraulic discs

Number of gears 24

Front derailleur (model) SRAM Rival eTAP AXS

Tyres Vittoria Rubino IV G2.0 TLR 700x25c

Stan złożenia roweru Bike adjusted and pre-assembled

Wheels FULCRUM Racing 400 DB

Rudders FSA 1-1/2" Integrated Aluminium Cup

Orbea Orca Aero M31e LTD PWR road bike blue M13457D7 2

Orbea Orca Aero M31e LTD PWR road bike blue M13457D7

Sizes

Size	49	51	53	55	57
Height (cm)	160-166	167-172	173-179	180-185	186-191
A - Seat tube (mm)	474	499	524	544	564
B - Horizontal pipe (mm)	520,8	532,9	545,5	557,5	573,1
C - Steerer tube (deg)	100,8	117,2	134,9	155,2	173,2
D - Rear triangle (mm)	408	408	408	408	408
E - Support height (mm)	260	260	262	262	262
F - Support lowering (mm)	263	263	265	265	265
G - Wheelbase (mm)	76	76	74	74	74
H - Head angle	971	974,8	976,1	986,4	996,9
I - Saddle angle	71,5	72,2	72,8	73	73,2
J - Crossover (mm)	74	73,7	73,5	73,5	73,2
K - Reach (mm)	376	380	385	391	398
L - Stack (mm)	505	523	542	562	580
M - Fork (mm)	370	370	370	370	370

Product description

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

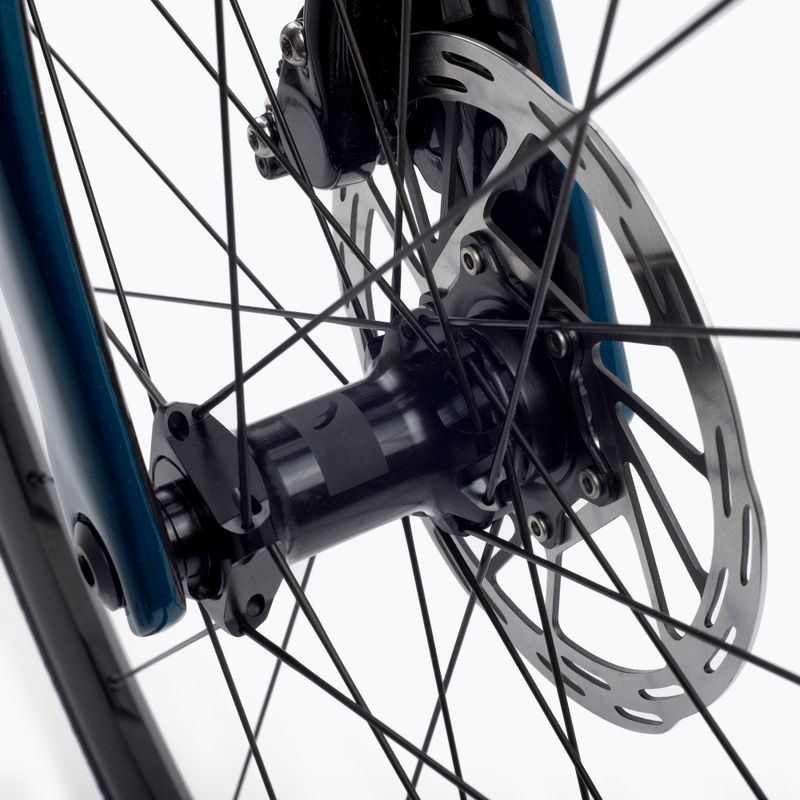

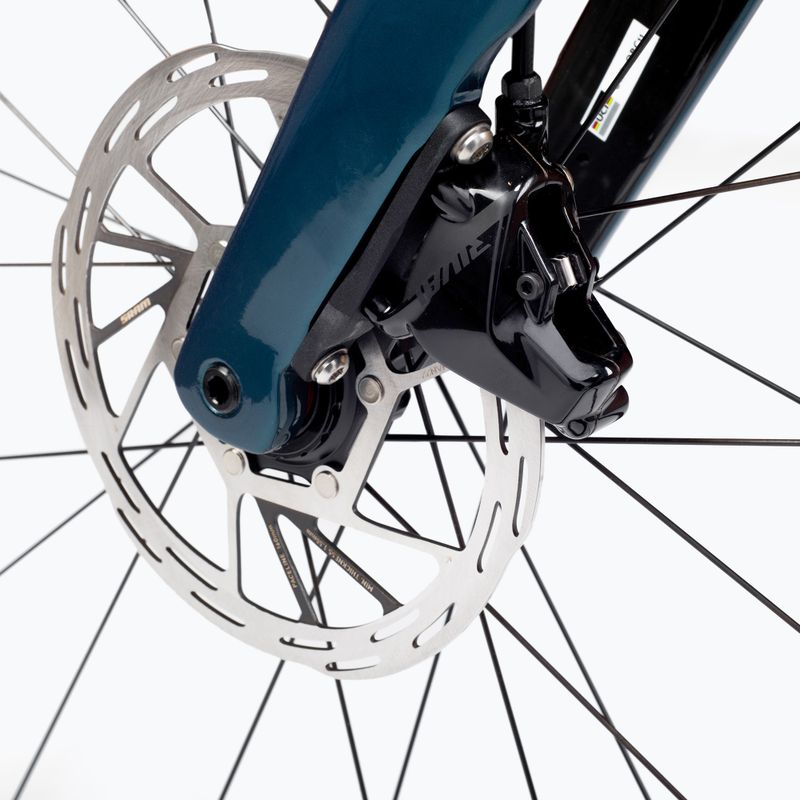

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
