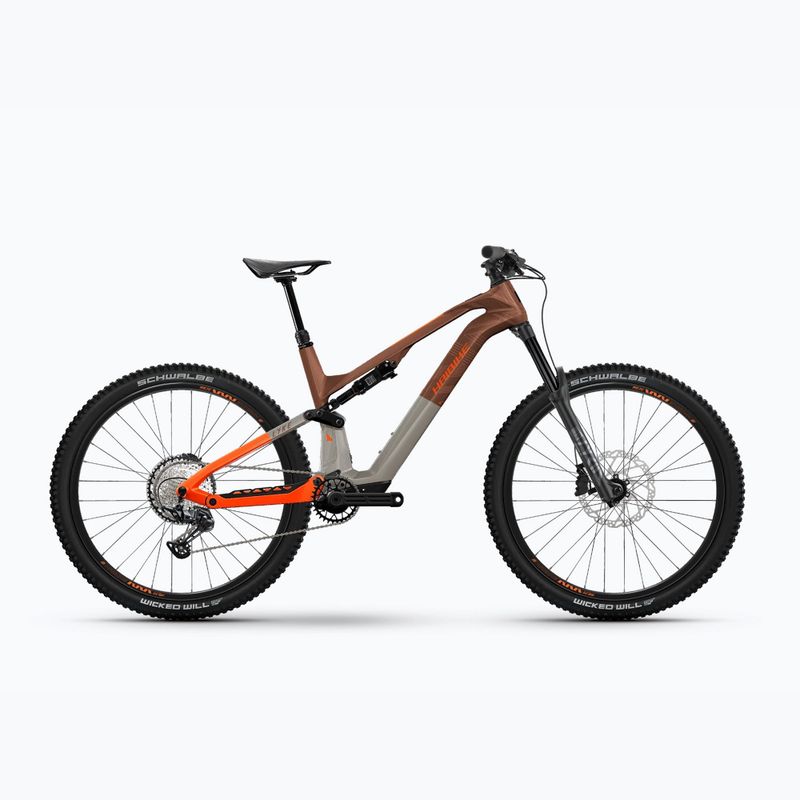

Haibike Lyke CF 10 is an advanced electric bike. Equipped with a lightweight carbon fiber frame and a powerful drive, it delivers excellent performance on any terrain.

Basic data

Brand Haibike
Country of origin of the brand Germany
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Brown
Model/product code Lyke CF 10 45800340
Purpose MTB
Code 2000102066

Frame

Frame Carbon, through axle M12 (1.00) x 148mm, disc brake Post Mount, Travel: 140mm
Frame material Carbon fibre

Components

Steering wheel XLC FlowBy, 780 mm
Handlebar support XLC FlowBy, A-head, Handlebar diameter: 31.8 mm
Depreciation Full
Rudders Acros BlockLock
Fork RockShox Lyrik Select, air/oil, aluminum shaft 1 1/8" - 1 1/2" tapered, thru-axle Boost
Damper RockShox Deluxe Select Plus, air
Saddle Selle Italia Model X
Bar dropper-post remote, telescope, 31.6 mm, aluminium

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) SRAM NX Eagle 12-S
Handles SRAM SX Eagle
Cassette / Freewheel SRAM Eagle PG1210, 11-50T
Chain SRAM SX Eagle

Brakes

Brakes (model) Shimano M6120 Hydraulic Disc
Brake type Hydraulic discs
Brake discs 203 mm front / 180 mm rear

Wheels

Wheel size 29"
Wheels WTB ST i30 TCS, double-wall
Tyres Schwalbe Wicked Will Evo Super Ground, 62-622 / Schwalbe Wicked Will Evo Super Trail, 62-622

Engine

Engine model Fazua Ride60
Engine location Central
Engine power 250 W
Maximum torque 60 Nm
Maximum speed 25 km/h

Battery

Battery capacity 430 Wh
Charger Fazua Charger 3A

Additional information

Pedals included Yes
Maximum user weight 120 kg

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Accell Group N.V. | Hatzfeldstraße 24, 57076 Siegen, Niemcy | info@haibike.com

Haibicycle Lyke CF 10 430Wh leather/orange gloss electric bicycle (45800340)

Haibike Lyke CF 10 430Wh is a next-generation electric bike that pushes the limits of what is possible in the world of mountain biking. Equipped with a centrally located Fazua Ride60 motor with a power of 250 W and a maximum torque of 60 Nm, this bike provides smooth and efficient riding, reaching speeds up to 25 km/h. This motor, known for its reliability, guarantees optimal power transfer, making every ride less demanding and more exciting.

The frame, made of high-quality carbon, with an M12 (1.00) x 148 mm axle, supports post mount disc brakes and offers a clearance height of 140 mm. This is key to achieving exceptional lightness and durability, ideal for conquering challenging mountain terrains.

Attention to detail is also evident in the choice of components, such as Schwalbe Wicked Will Evo Super Ground and Super Trail tires, which provide reliable grip in all conditions. The XLC FlowBy stem and 780 mm wide handlebar ensure optimal ergonomics and control over the bike. Additional riding comfort is offered by the Selle Italia Model X saddle and the adjustable XLC dropper post with a telescopic system, allowing for quick and easy seat height adjustment depending on the terrain.

The high-capacity 430 Wh battery provides long hours of riding without the need for frequent charging, and the included Fazua Charger 3A allows for quick recovery of a full charge.

Haibike Lyke CF 10 430Wh is not just a bike; it is a gateway to a world of adventures where every trail becomes conquerable. Whether you are an experienced mountain biker or looking for equipment to help you develop your skills, this model will certainly meet your expectations.

Feedback

There are no reviews yet, be the first!

Review this product

Haibicycle Lyke CF 10 430Wh leather/orange gloss electric bicycle

Haibicycle Lyke CF 10 430Wh leather/orange gloss electric bicycle

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Haibicycle Lyke CF 10 430Wh leather/orange gloss electric bicycle

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size M/44 L/47
    Height (cm) 168-176 176-184
    A (mm) 440 470
    B 74° 74°
    C (mm) 36 36
    D 77,3° 77,3°
    E (mm) 120 130
    F 65° 65°
    G (mm) 592 622
    H (mm) 450 450
    I (mm) -25 -25
    J (mm) 1227 1259
    K (mm) 620 629
    L (mm) 452 479
