LOVELEC Drago 36V 20Ah 720Wh grey/yellow electric bicycle

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code Drago 20Ah B400394

Leading colour Grey

Brand LOVELEC

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Crank mechanism Prowheel, 175 mm

Wheel size 29"

Sport Bicycles

Derailleurs 1x11

Cassette / Freewheel Shimano 11-51T

Rear derailleur (model) Shimano Deore 11-51 11-speed

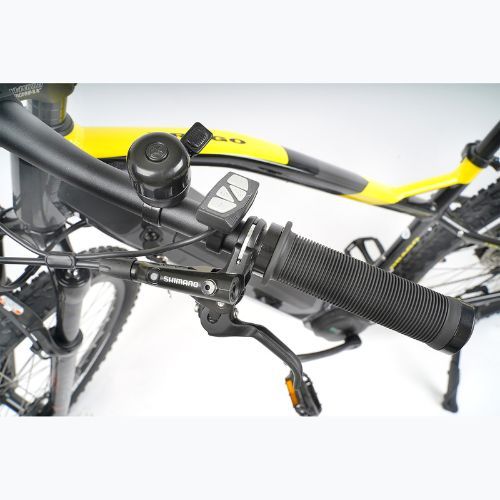

Handles Shimano Deore

Depreciation Front

Brakes (model) Shimano MT501

Purpose MTB

Maximum range 170 km

Brake discs 180 mm / 180 mm

Chain KMC

Handlebar support Promax

Tyres Maxxis Ardent, 29 x 2.4

Frame material Aluminium

Fork RST Aerial AIR, suspension, adjustable, with handlebar lock, 100 mm travel

Charger EN, CE, 36 V, 2 A

Pedals included Yes

Engine model DAPU

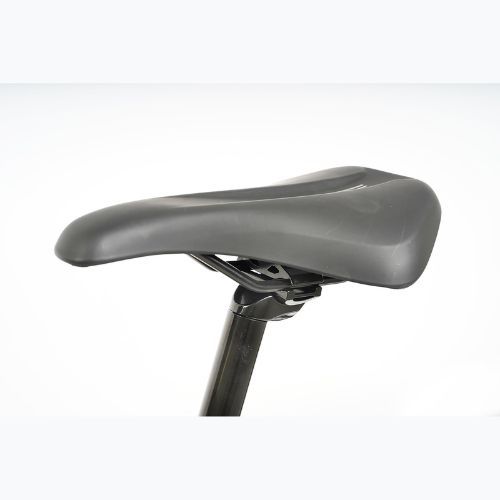

Saddle Selle Royal

Weight of bike (estimated) 21,5 kg

Steering wheel Promax, 720mm

Maximum engine power 750 W

Brake type Hydraulic discs

Number of gears 11

Battery capacity 720 Wh

Folding condition of the bike Bike adjusted and pre-assembled

Hubs Modus

Maximum torque 95 Nm

Battery type Lithium-ion

Maximum speed 25 km/h

Maximum user weight 140 kg

LOVELEC Drago 36V 20Ah 720Wh grey/yellow electric bicycle 2

Sizes table

Below you will find information that will help you choose the right size when buying a child's electric bicycle DRAGO by LOVELEC.

Size	17"	19"	20,5"
Height (cm)	160-175	175-188	185-195
A - angle of the head tube	67	67	67
B - seat tube angle (mm)	72	72	72
C - effective top tube length (mm)	605	620,9	635
D - top tube length (mm)	578,2	590,5	604,4
E - seat tube length (mm)	430	480	520
F - rear triangle length (mm)	480	480	480
G wheels base (mm)	1166,7	1182,6	1198,6
H - head tube height (mm)	130	130	150

Product description

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

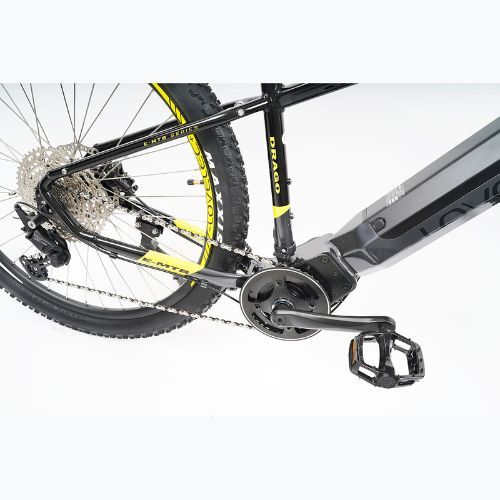

Drive 1x11

The 1x11 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

29" wheels

The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
