Basic data

Sport Bicycles
Brand LOVELEC
Leading colour Yellow
Season Year-round
Model/product code Fornax 15Ah B400440
Purpose City/urban
Gender Male, Woman
Country of origin of the brand European Union
Code 2000087190

Frame

Frame material Aluminium

Components

Steering wheel Promax
Steering wheel adjustment Yes
Handlebar support Zihad
Depreciation Front
Fork Zoom 525 AMS, cushioned
Saddle Selle Royal

Drive

Derailleurs 1x8
Number of gears 8
Rear derailleur (model) Shimano Altus, 8 speed
Handles Shimano Altus
Crank mechanism Prowheel, 170mm
Cassette / Freewheel 20T
Chain KMC

Brakes

Brakes (model) Tektro
Brake type Hydraulic discs
Brake discs 160 mm front / 160 mm rear

Wheels

Wheel size 20"
Wheels Aluminium wheel rims
Tyres Kenda, 20×1.95
Hubs Modus

Engine

Engine model MOTINOVA VOLANS
Engine location Central
Engine power 250 W
Maximum engine power 500 W
Maximum torque 65 Nm
Maximum speed 25 km/h

Battery

Battery type Lithium-ion
Battery capacity 540 Wh
Maximum range 130 km
Charger EN, CE, 36 V, 2 A

Additional information

Pedals included Yes
Maximum user weight 140 kg
Weight of bike (estimated) 20 kg

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer KOEXIMPO, spol. s r.o. | Nádražní 41/5, 737 01 Český Těšín, Česká republika | [email protected]

Other data

Service label Bike assembly service available

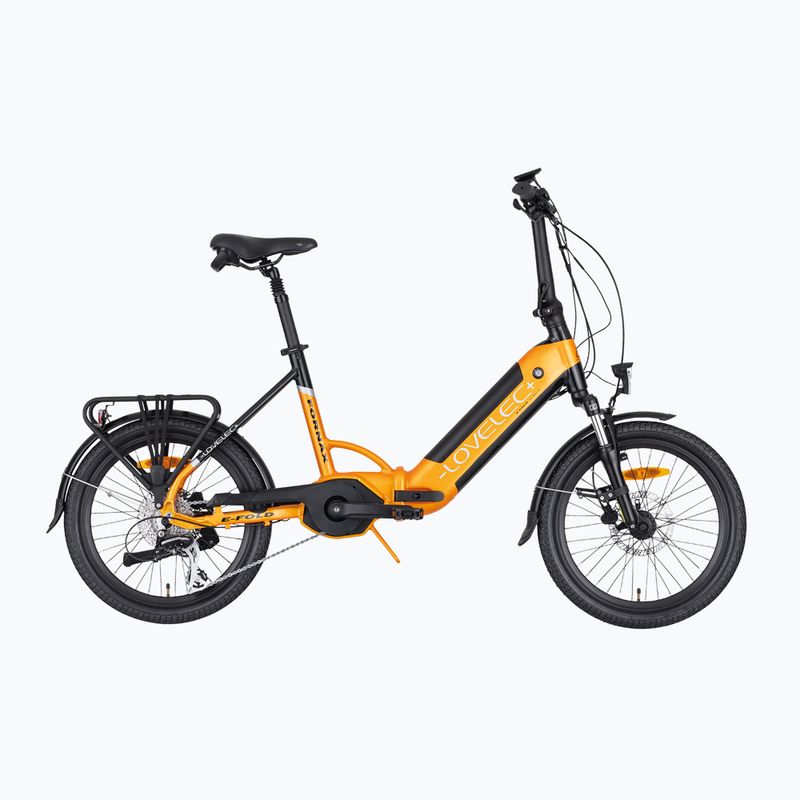

Folding electric bicycle LOVELEC Fornax 36V 15Ah 540Wh yellow (B400440)

Advantages

Front cushioning
The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.
Aluminium frame
The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.
Hydraulic disc brakes
The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
MET bicycle helmet Terranova yellow
Size
56-58 cm (M)
58-61 cm (L)
Choose an Option...

Choose an Option

  • 56-58 cm (M) €95.99 €69.99
  • 58-61 cm (L) Notify me
Add to Wish List
Elite Custom Race+ bottle cage black glossy/red graphic
Size
OS
Choose an Option...

Choose an Option

  • OS €15.99
Add to Wish List
CamelBak Podium bicycle bottle black 1875001071
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €14.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Folding electric bicycle LOVELEC Fornax 36V 15Ah 540Wh yellow

Folding electric bicycle LOVELEC Fornax 36V 15Ah 540Wh yellow

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Folding electric bicycle LOVELEC Fornax 36V 15Ah 540Wh yellow

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information to help you choose the right size when buying a Fornax electric bicycle from LOVELEC.

    A - angle of the head tube 70
    B - seat tube angle (mm) 74
    C - effective top tube length (mm) 650,4
    D - top tube length (mm) -
    E - seat tube length (mm) 400
    F - rear triangle length (mm) 410
    G wheels base (mm) 1136,3
    H - head tube height (mm) 160
