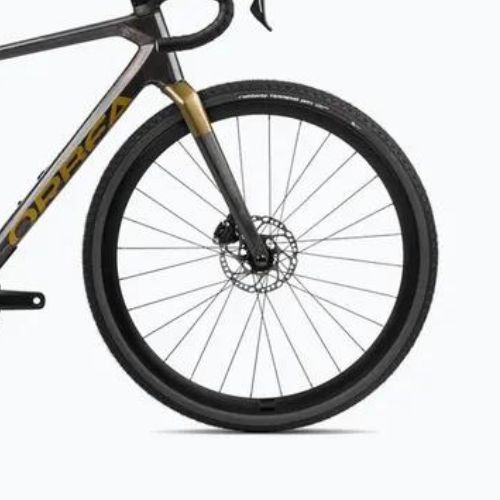

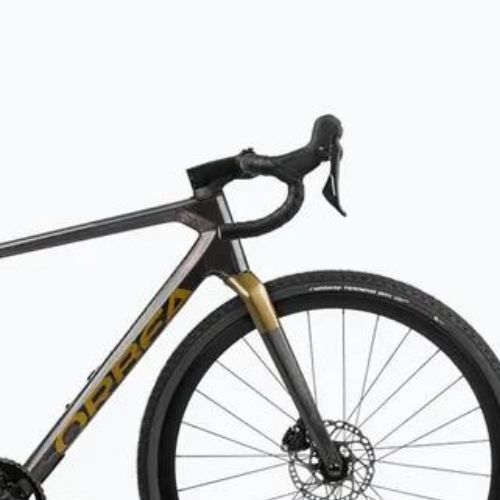

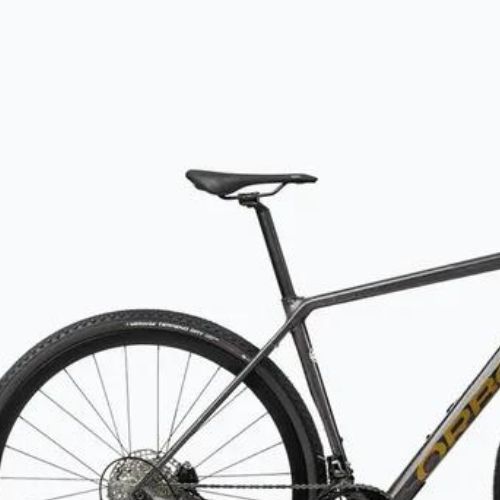

Orbea Terra M30 Team gravel bike cosmic carbon view/metallic olive green (R14607DJ)

Frame

Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1.5", PF30, powermeter compatible

Frame material Carbon fibre

Components

Steering wheel OC Gravel GR31, Reach 70, Drop 110

Handlebar support OC Road Performance RP21, -6º

Rudders FSA 1-1/2″ Integrated Aluminium Cup

Fork Orbea Terra ICR, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Fork material Carbon fibre

Saddle Prologo Akero AGX STN size 155mm

Bar Carbon, 27.2mm, Setback 20

Drive

Type of derailleur Mechanical

Derailleurs 2x12

Number of gears 24

Front derailleur (model) Shimano GRX RX820

Rear derailleur (model) Shimano GRX RX820

Handles Shimano GRX RX610

Crank mechanism Shimano GRX RX610 30x46t

Cassette / Freewheel Shimano HG710 11-36t 12-Speed

Chain Shimano M6100

Brakes

Brakes (model) Shimano RX400 Hydraulic disc

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels Alloy, Tubeless, 700c, 21c

Tyres Vittoria Terreno Dry CX-gravel G2.0 TNT 700x38c

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Solid - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Solid Inner Threaded - rear hub

Tubeless ready wheels Yes

Additional information

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Black

Season Year-round

Model/product code Terra M30 Team R14607DJ

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Code 2000090025

Below you will find information that will help you choose the right size when buying a Terra M30 Team bike from Orbea.

Size	S	M	L
Height (cm)	167-172	173-179	180-185
A - Seat tube (mm)	438	471	504
B - Horizontal pipe (mm)	539	558	570
C - Steerer tube (mm)	131	152	178
D - Rear triangle (mm)	420	420	420
E - Support height (mm)	263/278	263/278	265/280
F - Support lowering (mm)	78	78	76
G - Wheelbase (mm)	1019	1029	1044
H - Head angle	70,5	71	71
I - Seat tube angle (°)	74	73,5	73,5
J - Crossover (mm)	746/755	768/783	798/813
K - Reach (mm)	382	389	395
L - Stack (mm)	548	570	592
M - Fork (mm)	390	390	390

Advantages

Carbon frame

This bike has been created with well thought-out materials. Carbon was used for the frame, which stands out for its very low weight. In addition, this material has a high strength and resilience index.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
