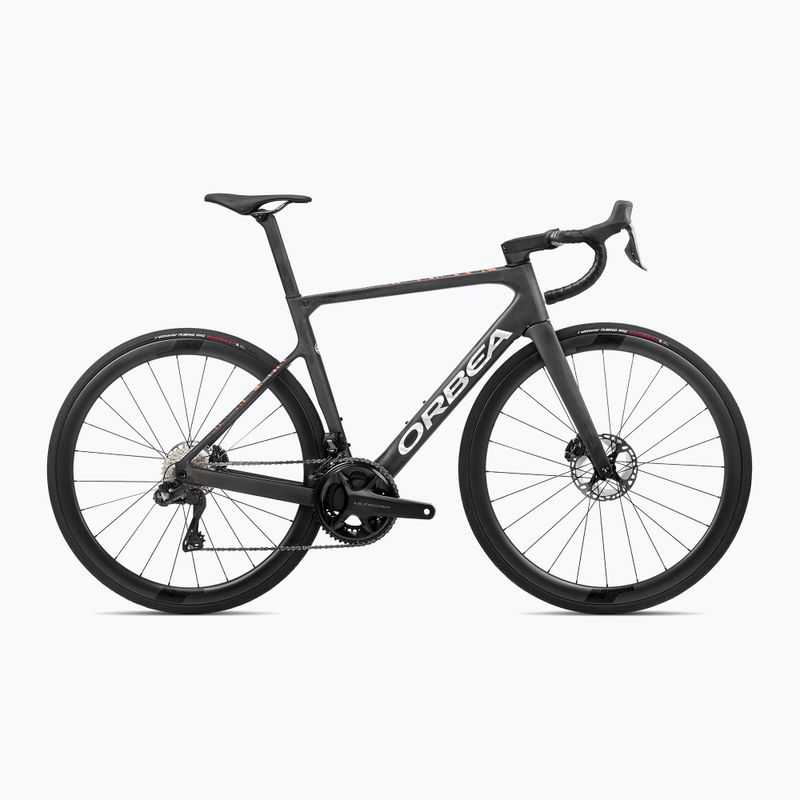

Orbea Orca M20i LTD 2023 euskadi road bike

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Orca M20i LTD N12051TK

Leading colour Grey

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Shimano Ultegra R8100 34x50t

Wheel size 28"

Frame Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible

Derailleurs 2x12

Cassette / Freewheel Shimano Ultegra R8100 11-30t 12-Speed

Sport Bicycles

Rear derailleur (model) Shimano Ultegra Di2 R8150

Handles Shimano ST-8170

Handlebar material Carbon

Fork material Carbon

Chain Shimano M8100 12s

Type of derailleur Electronic

Handlebar support OC Road Performance RP10 Stem, -8º

Bar Orbea Orca OMX, SB0/25, w/Micro tilt adjustment

Frame material Carbon

Fork Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Type of Product Endurance

Saddle Selle Italia SLR Boost SuperFlow L Manganese Rail

Brakes (model) Shimano R8170 Hydraulic Disc

Steering wheel OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole

Brake type Hydraulic discs

Number of gears 24

Front derailleur (model) Shimano Ultegra Di2 R8150

Tyres Vittoria Rubino Pro IV G2.0 700x25c

Folding condition of the bike Bike adjusted and pre-assembled

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Lite - front hub, Orbea Thru Axle 12x142mm M12x2 P1 Lite - rear hub

Wheels Vision 40 SC Disc Carbon TLR CL

Orbea Orca M20i LTD 2023 euskadi road bike 2

Sizes

Size	51	53	55	57
Height (cm)	167-172	173-179	180-185	186-191
A - Seat tube (mm)	480	500	520	540
B - Horizontal pipe (mm)	536	549	560	576
C - Steerer tube (deg)	129,6	147,9	168	186,2
D - Rear triangle (mm)	408	408	408	408
E - Support height (mm)	267	269	269	269
F - Support lowering (mm)	72	70	70	70
G - Wheelbase (mm)	980	981	991	1002
H - Head angle	72,2	72,8	73	73,2
I - Saddle angle	73,7	73,5	73,5	73,2
J - Crossover (mm)	760	780	801	819
K - Reach (mm)	380	385	391	398
L - Stack (mm)	533	552	572	590
M - Fork (mm)	370	370	370	370

Product description

Advantages

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Electronic derailleurs

This model uses the state-of-the-art solution of electronic derailleurs, which are characterised by high quality and precision. This type allows instant gear changes.

Carbon fork

The fork on this bike is made of carbon, which is characterised by its extreme lightness and ability to absorb the power generated when riding over rough terrain. This material combines strength and low weight.
