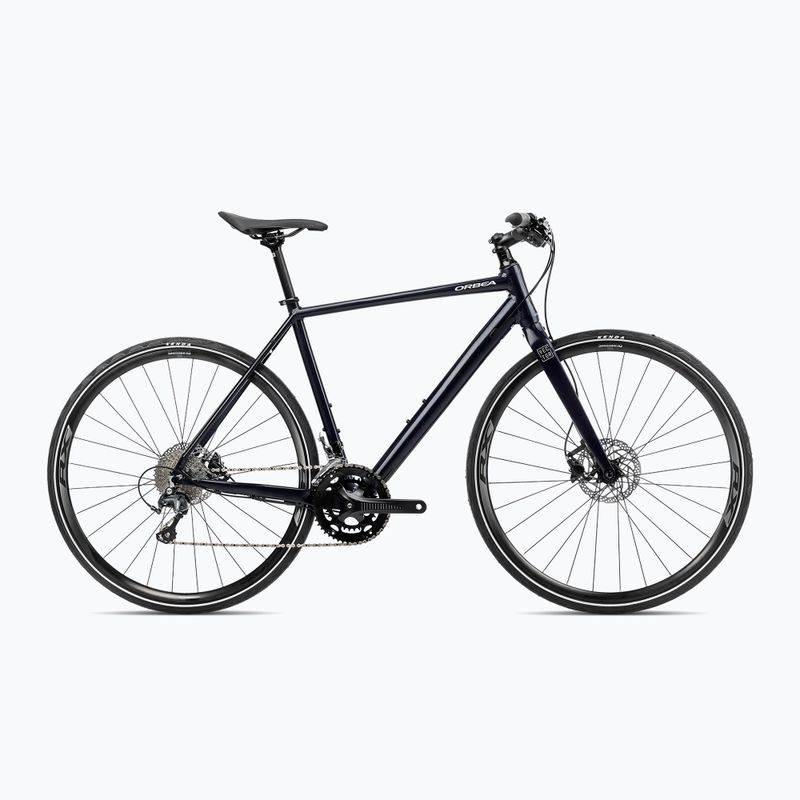

Orbea Vector 10 2023 metallic night black city bike

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Vector 10 N40958RJ

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism Orbea Alloy 32x48t

Lighting No

Sport Bicycles

Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR

Wheel size 28"

Frame material Aluminium

Cassette / Freewheel Shimano Tiagra HG-500 11-34t 10-Speed

Rear derailleur (model) Shimano Tiagra 4700 GS

Derailleurs 2x10

Handles Shimano Tiagra 4700

Mudguards No

Brake type Hydraulic discs

Handlebar material Aluminium

Fork material Aluminium

Handlebar basket No

Brakes (model) Shimano MT200 Hydraulic Disc

Depreciation No

Chain KMC X10

Luggage carrier No

Handlebar support Alloy 31.8mm interface 7º

Bar Alloy 27.2 Offset 0

Tyres Kenda K1098 700x32 Reflective Tape

Fork Speed 400mm Alloy Flat mount

Saddle Fizik Aliante R5

Steering wheel Alloy 31.8mm Riser 640mm

Number of gears 20

Folding condition of the bike Bike adjusted and pre-assembled

Front derailleur (model) Shimano Tiagra 4700

Wheels Shimano WH-RX010 CL

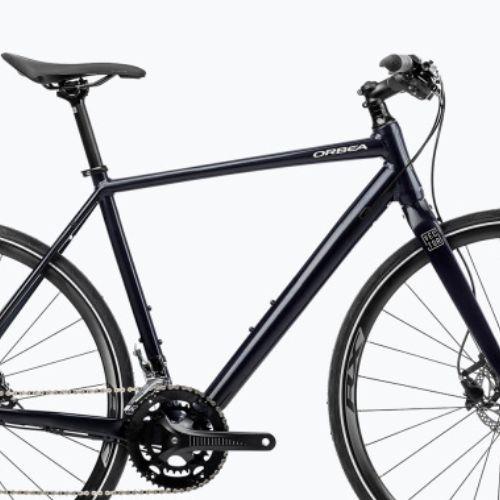

Orbea Vector 10 2023 metallic night black city bike 2

Sizes

Below you will find information that will help you choose the right size when buying a Vector 10 bike from Orbea.

Size	XS	S	M	L	XL
Height (cm)	150-160	160-170	170-180	180-190	190-200
A - Seat tube (mm)	430	480	525	555	580
B - Horizontal pipe (mm)	521	546	559	580	601
C - Steerer tube (deg)	109	127	150	170	200
D - Rear triangle (mm)	435	435	435	435	435
E - Support height (mm)	281	281	283	283	285
F - Support lowering (mm)	70	70	68	68	66
G - Wheelbase (mm)	1021	1037	1052	1063	1075
H - Head angle	71	71	71	71,5	72
I - Saddle angle	75	74	74	73,5	73
J - Crossover (mm)	738	768	800	824	852
K - Reach (mm)	378	388	395	405	410
L - Stack (mm)	535	552	571	592	625
M - Fork (mm)	400	400	400	400	400

Product description

Advantages

Aluminium frame

The design of this bike has been created to ensure maximum comfort. The frame of this model is made of extremely strong aluminium, which stands out for its very low weight.

Hydraulic disc brakes

They are characterised by smooth, precise operation and high braking power. They are resistant to the harsh conditions of the road and enable safe deceleration and stopping at all times.

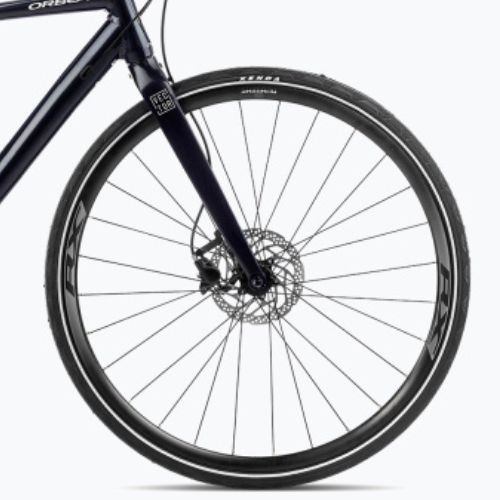

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.
