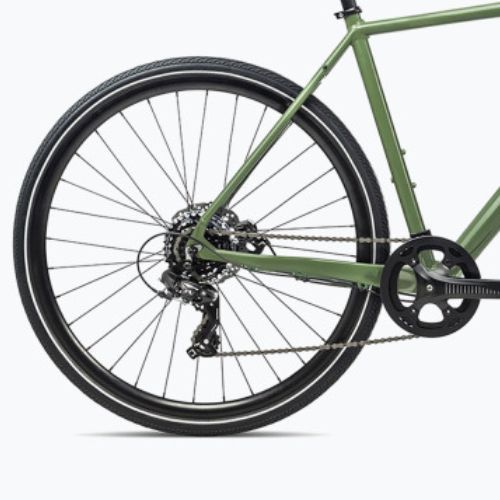

Orbea Carpe 40 2023 urban green/black city bike

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Carpe 40 N40156SA

Leading colour Green

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism Orbea Alloy 42t

Lighting No

Sport Bicycles

Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR

Wheel size 28"

Frame material Aluminium

Cassette / Freewheel Shimano HG200 12-32t 7-Speed

Rear derailleur (model) Shimano TY-300

Derailleurs 1x7

Handles Shimano SL-M315

Mudguards No

Brake type Mechanical discs

Handlebar material Aluminium

Fork material Aluminium

Handlebar basket No

Brakes (model) Shimano TX805 Mechanical Disc

Depreciation No

Chain KMC Z7 GYBR

Pedals included Yes

Luggage carrier No

Handlebar support Alloy 31.8mm interface 7º

Bar Alloy 27.2 Offset 0

Fork Speed 400mm Alloy Flat mount

Saddle Fortune QF-3094

Steering wheel Alloy 31.8mm Riser 640mm

Number of gears 7

Folding condition of the bike Bike adjusted and pre-assembled

Wheels Orbea Airline Corsa Disc 700X19c

Orbea Carpe 40 2023 urban green/black city bike 2

Sizes

Size	M	L	XL
Height (cm)	170-180	180-190	190-200
A - Seat tube (mm)	525	555	580
B - Horizontal pipe (mm)	559	580	601
C - Steerer tube (deg)	150	170	200
D - Rear triangle (mm)	435	435	435
E - Support height (mm)	283	283	285
F - Support lowering (mm)	68	68	66
G - Wheelbase (mm)	1025	1063	1075
H - Head angle	71	71,5	72
I - Saddle angle	74	73,5	73
J - Crossover (mm)	800	824	852
K - Reach (mm)	395	405	410
L - Stack (mm)	571	592	625
M - Fork (mm)	400	400	400

Product description

Advantages

Aluminium frame

The design of this bike has been created to ensure maximum comfort. The frame of this model is made of extremely strong aluminium, which stands out for its very low weight.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Mechanical disc brakes

They are simple to maintain and their components are readily available and inexpensive. They operate in an uncomplicated manner, using the mechanical capabilities of the steel cable. The intensity of braking is directly proportional to the force exerted by the hands on the brake lever.
