The Orbea Vibe H10 electric bike is a revolutionary combination of technology, design, and performance, redefining the standards of e-bikes.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Green
Model/product code Vibe H10 M30849YJ
Purpose City/urban
Code 2000066790

Frame

Frame Orbea Vibe Top Bar Hydro 6061, ICR cable routing, Forged BB, 135x9 QR, 700x45 maximun tire, carrier and fenders compatible
Frame material Aluminium

Components

Steering wheel Alloy 31.8mm 12mm Rise 700mm
Handlebar width 700 mm
Handlebar material Aluminium
Handlebar support OC1 31.8mm interface -6º
Handlebar stem material Aluminium
Depreciation No
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm
Fork material Carbon fibre
Saddle Brooks Cambium C15 283x140
Bar OC 27.2 Offset 0, for integrated light

Drive

Type of derailleur Mechanical
Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus
Handles Shimano Deore M6100
Crank mechanism OC 42t, w/Chainguard
Cassette / Freewheel Sun Race CSMZ80 11-51t 12-Speed Metallic E-bike
Chain KMC X12

Brakes

Brakes (model) Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Ready GR
Tyres Kenda K1052 700x45C Reflective type TLR
Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub

Engine

Engine model Ebikemotion X35 Plus 25kmh
Engine location Central
Engine power 250 W
Maximum torque 40 Nm

Battery

Battery capacity 248 Wh
Battery location In the frame

Additional information

Pedals included Yes

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

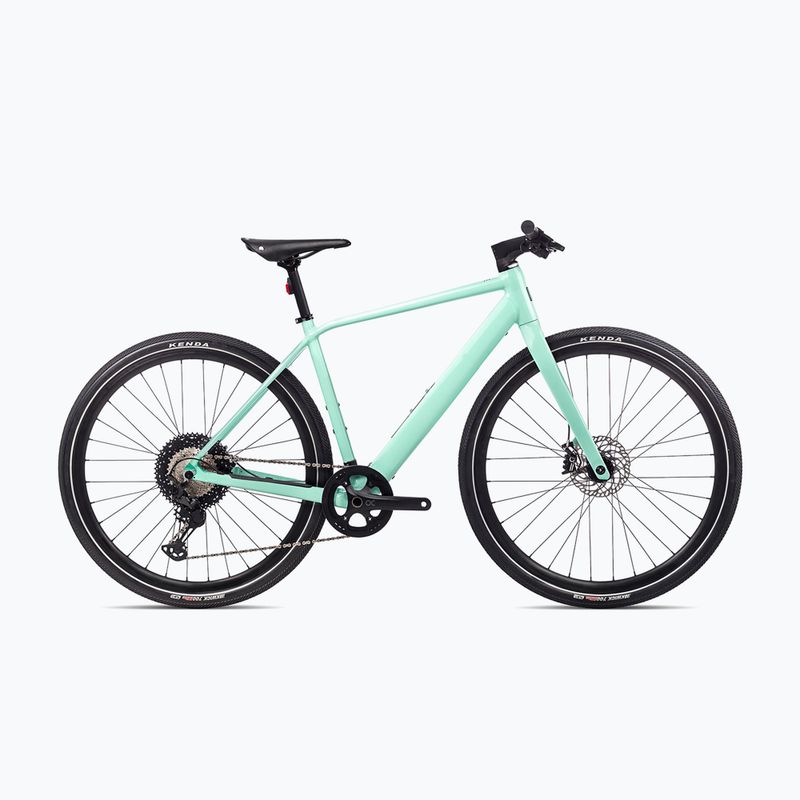

Orbea Vibe H10 36V 248Wh light green electric bike (M30849YJ)

Orbea Vibe H10 is a bike with a minimalist, integrated, and elegant design that can be described in three words. In line with the Enough Energy philosophy, it emphasizes discreet yet highly efficient electric assistance. By eliminating unnecessary elements, riding this bike becomes a truly pure experience while offering gentle support.

An extremely important feature of the bike is its geometry. Knowing how cyclists move around the city, Orbea designs bikes that optimize comfort and visibility. A more upright riding position increases safety while providing comfort during the ride. The steering system is responsive yet does not surprise with excessive reaction speed.

The heart of the bike, the Ebikemotion X35 Plus 25kmh motor, is a true engineering masterpiece. With a maximum torque of 40 Nm, it provides smooth and effective support that feels incredibly natural. A key element is the battery, which has been perfectly integrated into the bike frame, remaining invisible to the eye.

The frame of the Orbea Vibe Top Bar Hydro 6061 is an essential part of this bike. Designed for optimal cable routing, it also features mounts for a rack and fenders. Made from 6061 aluminum, it ensures lightness and structural stiffness.

Orbea Vibe H10 36V 248Wh light green electric bike
Rudy Project Protera + black bicycle helmet HL800011
Size
55-58 cm (S-M)
59-61 cm (L)
Choose an Option...

Choose an Option

  • 55-58 cm (S-M) €179.99 €119.99
  • 59-61 cm (L) €179.99 €119.99
Add to Wish List
Elite Custom Race+ bidon basket black and white EL0140643
Size
OS
Choose an Option...

Choose an Option

  • OS €15.99
Add to Wish List
CamelBak Podium bicycle bottle black 1875001071
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €14.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99 €38.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Vibe H10 36V 248Wh light green electric bike

Orbea Vibe H10 36V 248Wh light green electric bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Vibe H10 36V 248Wh light green electric bike

No opinion

Bike assembly service available

Size M Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 150-165 165-180 180-195 195-205
    A - Seat tube (mm) 455 490 530 575
    B - Horizontal pipe (mm) 507 530 547 571
    C - Steerer tube (mm) 109 140 175 210
    D - Rear triangle (mm) 435 435 435 435
    E - Support height (mm) 280 280 280 280
    F - Support lowering (mm) 76 76 76 76
    G - Wheelbase (mm) 1026 1048 1065 1091
    H - Head angle 70 70,5 71,5 72
    I - Seat tube angle (°) 75 74,5 74 74
    J - Crossover (mm) 775 809 842 881
    K - Reach (mm) 380 395 410 430
    L - Stack (mm) 546 580 615 650
    M - Fork (mm) 410 410 410 410
