Basic data
Sport Bicycles
Brand Orbea
Leading colour Green
Season Year-round
Model/product code Rise M-LTD N37705V1
Purpose MTB
Gender Male, Woman
Country of origin of the brand Spain
Code 2000066785
Frame

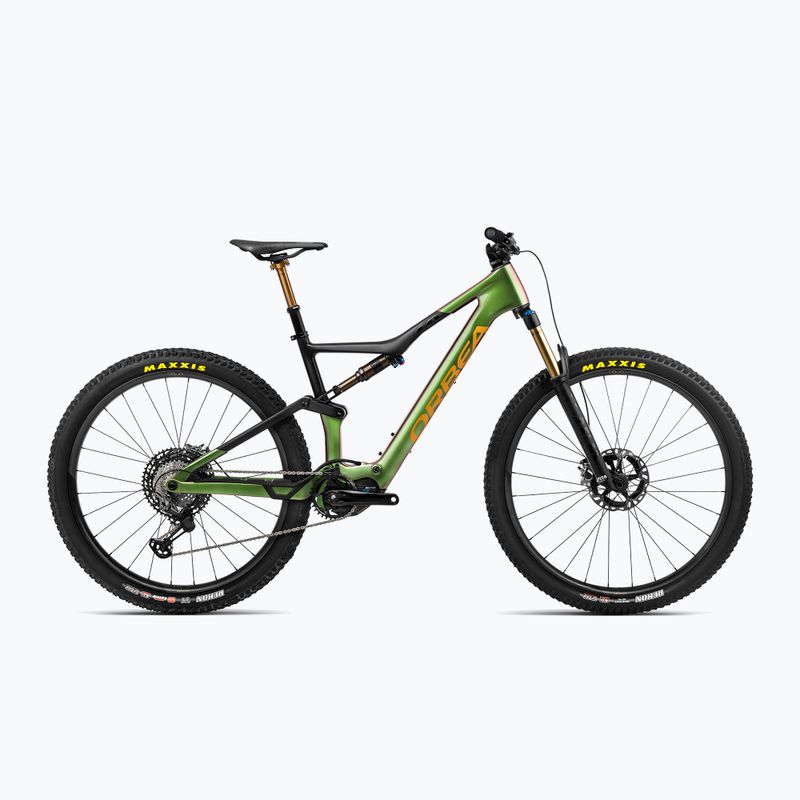

Frame Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
Frame material Carbon fibre
Components
Steering wheel OC Mountain Control MC10 Carbon, Rise 20, Width 800
Handlebar width 800 mm
Handlebar material Carbon fibre
Handlebar support OC Mountain Control MC10 Alu SL, 0º
Handlebar stem material Aluminium
Depreciation Full
Fork Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Saddle Fizik Antares R1 142mm
Bar Fox Transfer SL Factory Kashima Dropper 31.6
Drive
Type of derailleur Mechanical
Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XTR M9100 SGS Shadow Plus
Handles Shimano XTR M9100
Crank mechanism Shimano Steps EM900
Cassette / Freewheel Shimano XTR M9100 10-51t 12-Speed
Chain Shimano CN-9100
Brakes
Brakes (model) Shimano XTR M9100 Hydraulic Disc
Brake type Hydraulic discs
Wheels
Wheel size 29"
Wheels OQUO Mountain Performance MP30LTD Carbon
Tyres Maxxis Rekon 2.60" 120 TPI 3CMaxxTerra Exo TLR
Axle type 12x148/15x110
Hubs Fox Kabolt Boost front hub
Engine
Engine model Shimano EP8
Engine location Central
Engine power 250 W
Battery
Battery capacity 360 Wh
Battery location In the frame
Additional information
Pedals included No
Weight of bike (estimated) 16 kg
Warnings and producer's data
Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected] Other data
Service label Bike assembly service available
