Basic data

Sport Bicycles
Brand Orbea
Leading colour Grey
Season Year-round
Model/product code Occam H30 N25418LM
Gender Male, Woman
Country of origin of the brand Spain
Code 2000066752

Frame

Frame Orbea Occam Hydro High Polished Triple Butted. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing
Frame material Aluminium

Components

Steering wheel OC Mountain Control MC30, Rise20, Width 800
Handlebar support OC1 3D Forged 35mm interface 7º
Depreciation Full
Fork Marzocchi Bomber Z2 140 QR15x110
Damper Fox Float DPS Performance 3-Position Evol custom tune 210x50mm
Saddle Selle Royal 2058 DRN
Bar OC Mountail Control MC20, 31.6mm, Dropper

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano Deore M6100 SGS Shadow Plus
Handles Shimano Deore M6100
Crank mechanism OC1 Alloy forged Boost 32t
Cassette / Freewheel Shimano CS-M6100 10-51t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Shimano MT201 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Orbea OC1 29c Tubeless Ready
Tyres TYRES Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

Other data

Service label Bike assembly service available

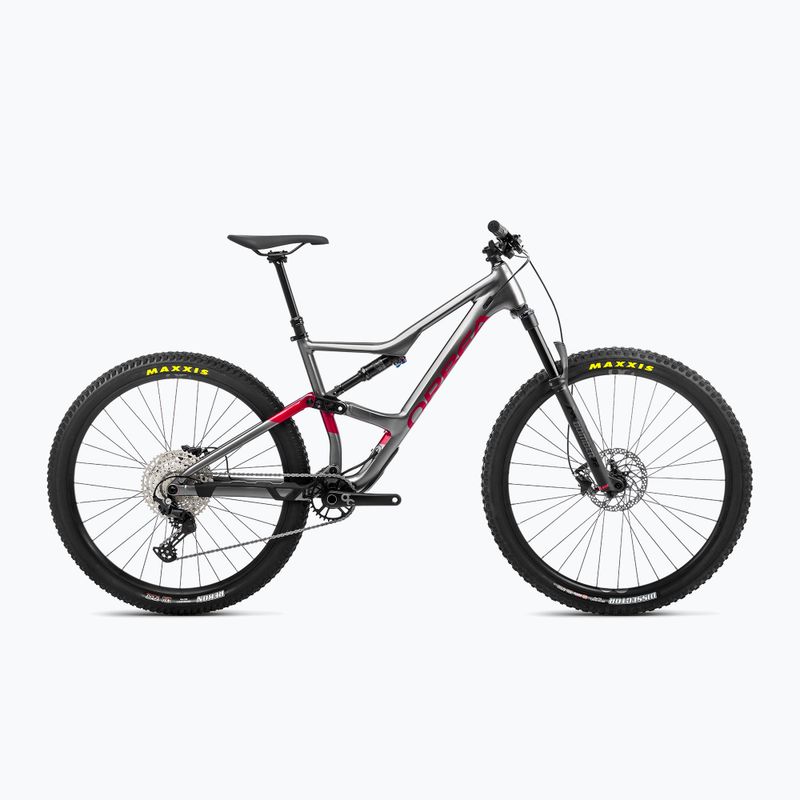

Orbea Occam H30 2023 glitter anthractite/metallic red mountain bike (N25418LM)

Advantages

Aluminium frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Orbea Occam H30 2023 glitter anthractite/metallic red mountain bike
UVEX bike helmet Viva 3 black S4109840115
Size
52-57 cm
56-62 cm
Choose an Option...

Choose an Option

  • 52-57 cm €66.99 €59.99
  • 56-62 cm €66.99 €59.99
Add to Wish List
CamelBak Podium Chill bicycle bottle 710 ml black
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €19.99
Add to Wish List
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €23.99 €21.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Occam H30 2023 glitter anthractite/metallic red mountain bike

Orbea Occam H30 2023 glitter anthractite/metallic red mountain bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Occam H30 2023 glitter anthractite/metallic red mountain bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 150-165 160-175 170-185 180-198
    A - Seat tube (mm) 381 419 457 508
    B - Horizontal pipe (mm) 565 592 619 649
    C - Steerer tube (mm) 95 105 120 140
    D - Rear triangle (mm) 440 440 440 440
    E - Support height (mm) 336 336 336 336
    F - Support lowering (mm) 35 35 35 35
    G - Wheelbase (mm) 1165 1194 1224 1259
    H - Head angle 66 66 66 66
    I - Seat tube angle (°) 77 77 77 77
    J - Crossover (mm) 710 736 766 776
    K - Reach (mm) 425 450 474 500
    L - Stack (mm) 604 613 627 646
    M - Fork (mm) 554 554 554 554
