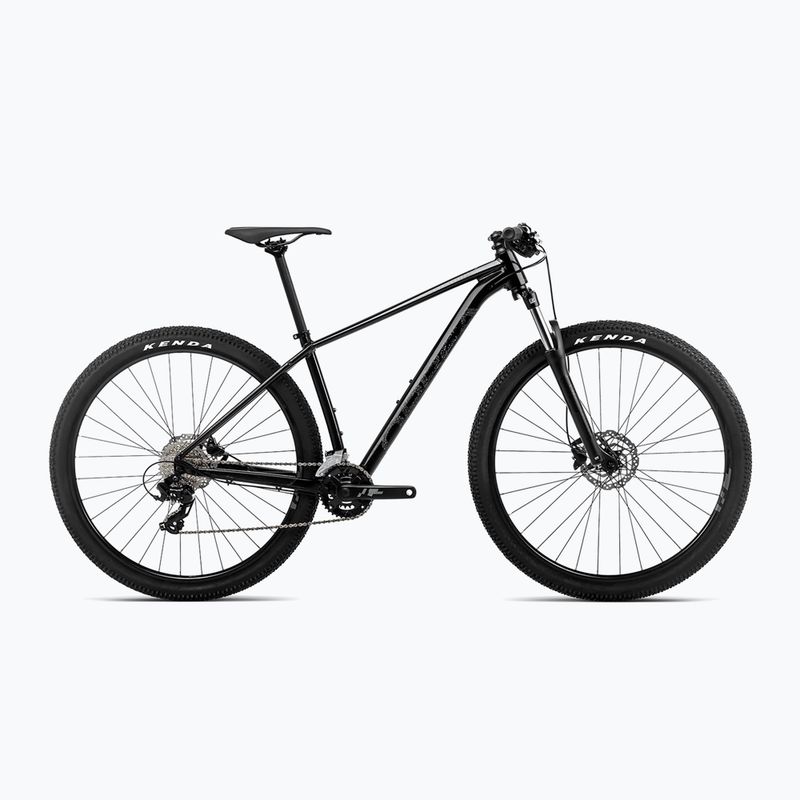

Orbea Onna 50 27 2023 mountain bike black N20114N9

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Onna 50 27 N20114N9

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism Alloy forged 22x36t 7/8S

Wheel size 27 5"

Frame Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing

Derailleurs 2x8

Cassette / Freewheel Sun Race CSM66 11-34t 8-Speed

Sport Bicycles

Rear derailleur (model) Shimano Tourney TX800

Handles Microshift TS38

Depreciation Front

Handlebar material Aluminium

Brakes (model) Shimano MT200

Chain KMC X8

Type of derailleur Mechanical

Handlebar support Alloy 31.8mm interface 7º

Bar Alloy 27.2 Offset 0

Tyres Kenda K1153 2.35" 22TPI

Frame material Aluminium

Fork SR Suntour XCE 28 Coil 100mm QR

Saddle Essax Adv soft135mm for Orbea

Steering wheel Alloy Flat 31.8mm 720mm

Brake type Hydraulic discs

Number of gears 16

Front derailleur (model) Shimano M315 31.8mm

Wheels Mach1 ER20 19c

Stan złożenia roweru Bike adjusted and pre-assembled

Rudders 1"-1/8 Semi-Integrated

Orbea Onna 50 27 2023 mountain bike black N20114N9 2

Sizes

Size	XS
Height (cm)	145-160
A - Seat tube (mm)	350
B - Horizontal pipe (mm)	526
C - Steerer tube (deg)	95
D - Rear triangle (mm)	430
E - Support height (mm)	312
F - Support lowering (mm)	45
G - Wheelbase (mm)	1049
H - Head angle	68,5
I - Saddle angle	74,5
J - Crossover (mm)	668
K - Reach (mm)	365
L - Stack (mm)	582
M - Fork (mm)	498,9

Product description

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

27.5" wheels

The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
