Orbea children's bike MX 24 XC 2023 purple N00824I7

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code MX 24 XC 2023 N00824I7

Leading colour Purple

Brand Orbea

Country of origin of the brand Spain

Gender Boy, Girl

Season Year-round

Lighting No

Crank mechanism Extra light 36t, 152mm, w/Chainguard

Wheel size 24"

Frame MX 24 6061 Aluminum 2021, 135x9 QR, V-Brake + IS Disc Mount, 27.2 Seat Post, Internal Cable Routing

Derailleurs 1x7

Sport Bicycles

Cassette / Freewheel Shimano TZ31 14-34t 7-Speed

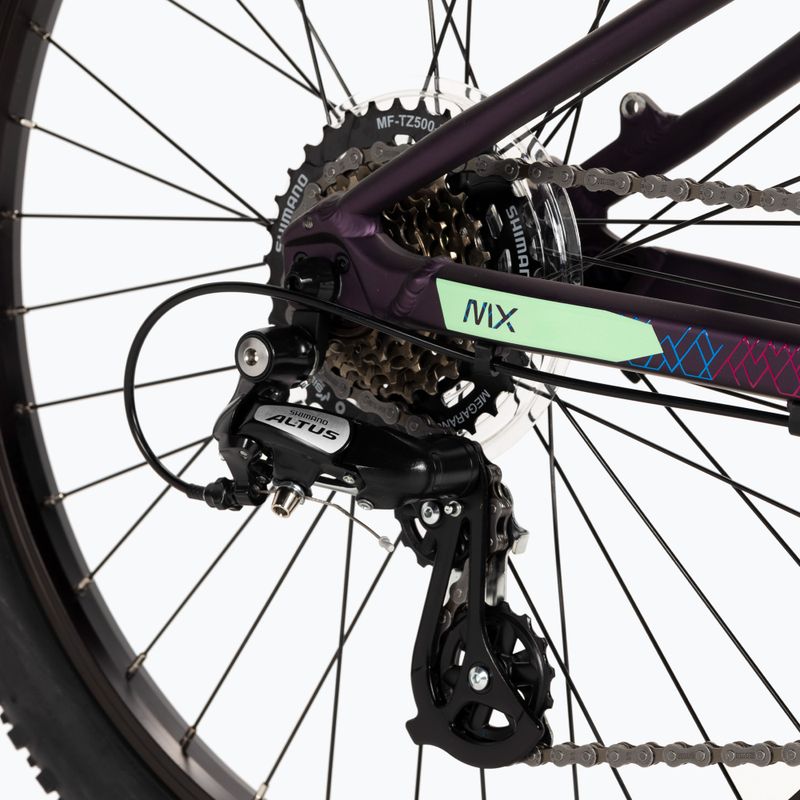

Rear derailleur (model) Shimano Altus M310

Handles Shimano SL-M315

Depreciation Front

Brakes (model) Junior alloy V-brake

Chain KMC Z7 GYBR

Bar Digit Alloy 27.2x300 mm Offset 0

User height range 125 - 150 cm

Tyres Kenda Booster K1277 24x2.20" 30TPI

Frame material Aluminium

Fork SR Suntour XCT-JR w/Preload adjuster Coil 50mm QR

Mudguards Yes

Saddle DDK D2405 256x138mm

Steering wheel Orbea Alu integrated cockpit 540mm

Brake type Mechanical jaws

Number of gears 7

Wheels Orbea Alloy 24"

Luggage carrier No

Stan złożenia roweru Bike adjusted and pre-assembled

Side wheels No

Rudders VP-Z104PD 1-1/8" Semi-Cartridge

Orbea children's bike MX 24 XC 2023 purple N00824I7 2

Sizes

Size	OS
Size (inches)	24"
Height (cm)	125-150
A - Seat tube (mm)	300
B - Horizontal pipe (mm)	515
C - Steerer tube (deg)	100
D - Rear triangle (mm)	390
E - Support height (mm)	285
F - Support lowering (mm)	30
G - Wheelbase (mm)	975
H - Head angle	69
I - Saddle angle	73
J - Crossover (mm)	590
K - Reach (mm)	361
L - Stack (mm)	502
M - Fork (mm)	418

Product description

Advantages

Front cushioning

This junior bike features front suspension, which significantly improves comfort when riding over rough terrain. In addition, the cushioning provides additional safety and effectively reduces the impact force during an accident.

Mudguards included

This bike is equipped with mudguards to provide protection when riding in adverse weather conditions. This means you don[t have to worry about dirt and mud coming out from under the wheels.

Aluminium frame

The junior bike has been designed with attention to every element. Its frame is made of durable aluminium, which stands out for its low weight. In addition, this material is characterised by its strength and resistance to deformation.

V-brake type

This bike is equipped with reliable, universal V-Brake brakes, which are used on the vast majority of bikes, as they are extremely durable and easy to install and maintain.

24" wheels

The 24-inch wheels used on this model of the bike ensure low weight and high strength and agility. With this size, the ride will become much more comfortable and enjoyable.
