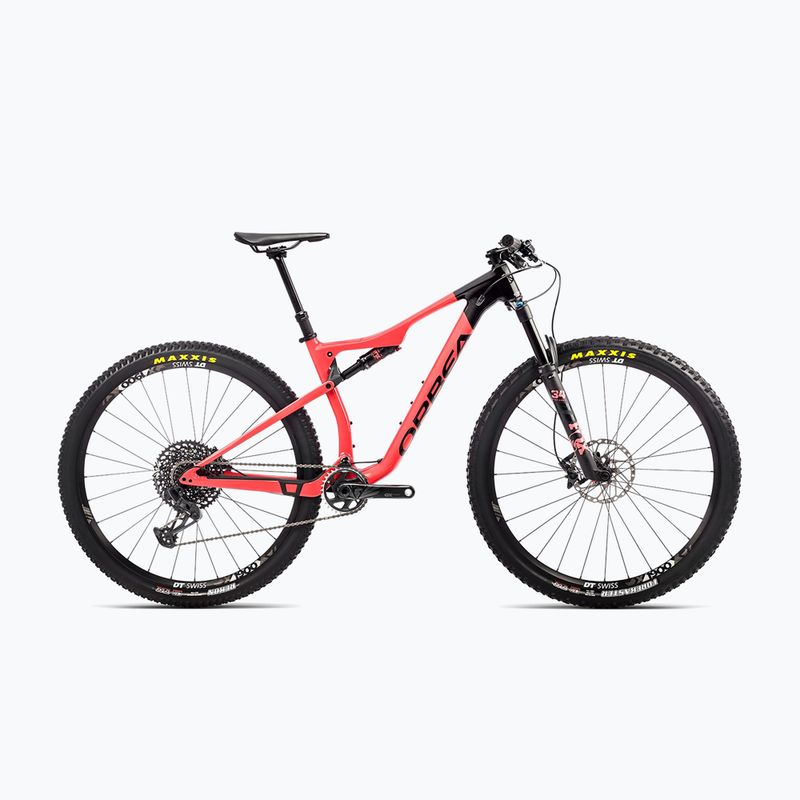

Orbea Oiz M20 TR orange/black mountain bike M23621LE

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Oiz M20 TR M23621LE

Leading colour Orange

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism SRAM GX Carbon Eagle Dub Lunar Boost 32t

Wheel size 29"

Frame Orbea Oiz Carbon OMR AlloyLink Boost PF Taper UFO2 I-Line

Derailleurs 1x12

Cassette / Freewheel SRAM XG-1275 Eagle 10-50t 12-Speed

Sport Bicycles

Rear derailleur (model) SRAM GX Eagle Lunar

Handles SRAM GX Eagle Lunar

Depreciation Full

Handlebar material Aluminium

Tubeless ready tyres Yes

Brakes (model) Shimano M6100 Hydraulic Disc

Chain SRAM GX Eagle 12-Speed

Handlebar support OC1 31.8mm interface -7º

Bar OC MC20 Mountain Control Dropper, 31,6mm, 125mm travel

Tyres Maxxis Forekaster 2.35" FB 120 TPI Dual Exo, Maxxis Rekon Race 2.35" 120 TPI Exo TLR

Frame material Carbon

Fork Fox 34 Float SC Performance 120 Grip Remote Push-Unlock QR15x110 Consult other components

Saddle Fizik Taiga S-alloy rail

Steering wheel OC1 Flat 31.8mm 740mm

Brake type Hydraulic discs

Number of gears 12

Wheels DT Swiss X-1900 Spline 25c TLR 15/110mm CL

Stan złożenia roweru Bike adjusted and pre-assembled

Damper Fox i-line DPS Performance 120mm Remote Push-Unlock Evol custom tune190x45mm

Tubeless ready wheels Yes

Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated

Orbea Oiz M20 TR orange/black mountain bike M23621LE 2

Sizes

Size	S	M	L	XL
Height (cm)	155-165	165-180	178-190	185-198
A - Seat tube (mm)	405	432	470	520
B - Horizontal pipe (mm)	567	596	610	643
C - Steerer tube (deg)	90	95	105	120
D - Rear triangle (mm)	435	435	435	435
E - Support height (mm)	334	334	334	334
F - Support lowering (mm)	40	40	40	40
G - Wheelbase (mm)	1101	1131	1155	1181
H - Head angle	68	68	68	68
I - Saddle angle	74	74	74	74
J - Crossover (mm)	724	739	749	756
K - Reach (mm)	387	425	446	466
L - Stack (mm)	593	598	608	622
M - Fork (mm)	524	524	524	524

Product description

Advantages

Hydraulic disc brakes

This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.

Tubeless ready tyres

The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres puncture-proof. Furthermore, the system rules out the problem of Snake Bite ", i.e. puncturing the inner tube by pinching it against the rim."

Full shock absorption

Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.

Drive 1x12

This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds."
