Electric bike Orbea Keram 30 with 29" wheels that provide a comfortable ride and optimal grip.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Orange
Model/product code Keram 30 29
Purpose MTB
Code 2000000336

Frame

Frame Orbea Keram 2019, hydroformed alloy 6061, hide out battery technology, bottle cage, dual battery compatible
Frame material Aluminium

Components

Steering wheel OC1 Flat 31.8mm 740mm
Depreciation Front
Rudders Alloy 31.8mm interface 7º
Fork SR Suntour X1 Coil LO 100mm QR
Saddle Selle Royal 2077 DRN
Bar Alloy 31.6x400mm Offset 0

Drive

Derailleurs 1x10
Number of gears 10
Rear derailleur (model) Shimano Deore M5120 SGS Shadow Plus
Handles Shimano Deore M4100
Crank mechanism PW EB04-NW34 G3
Cassette / Freewheel Shimano CS-M4100 11-46t 10-Speed
Chain KMC e10 Turbo Silver

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Orbea Black Rock 23c Disc
Tyres Kenda K1153 2.35" 22TPI

Engine

Engine model BOSCH Active 25 kmh
Engine location Central
Engine power 250 W
Maximum torque 40 Nm

Battery

Battery type Lithium-ion
Battery capacity 400 Wh
Battery location In the frame
Maximum range 70 km
Charger Compact Charger 2A (100-240V) Worldwide

Additional information

Bell No
Luggage carrier No

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

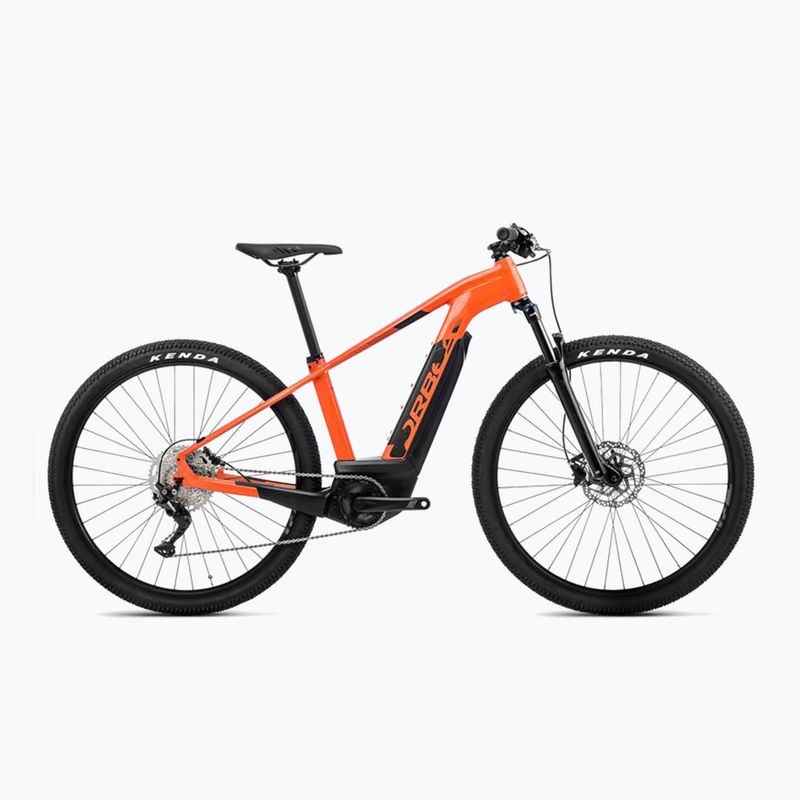

Orbea Keram 30 electric bicycle orange (Keram2930)

The electric bike from the Keram series features a frame geometry designed for a more comfortable riding position than sports bikes. The upright posture provides excellent visibility and control, which increases safety.

Orbea Keram 30 is a versatile bike dedicated to both men and women. Its construction is based on a hydroformed 6061 aluminum frame, characterized by lightness and durability. The use of Hide Out Battery technology allows the placement of a 400 Wh lithium-ion battery directly in the bike frame, which further emphasizes the aesthetics and modern look of this model. Regardless of the season, the Keram 30 bike offers exceptional riding comfort. The centrally located Bosch Active Line motor with a power of 250 W and a maximum torque of 50 Nm provides dynamic acceleration and smooth overcoming of all obstacles. Additionally, thanks to the SR Suntour front suspension, riding over rough terrain becomes more enjoyable and comfortable.

The Orbea Keram 29 stands out with a sporty geometry featuring a characteristic frame slope, which regardless of the rider's height allows easy and safe adjustment of settings to individual needs, without compromising the bike's performance.

Orbea Keram 30 electric bicycle orange
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Keram 30 electric bicycle orange

Orbea Keram 30 electric bicycle orange

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Keram 30 electric bicycle orange

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size M L XL
    Height (cm) 165-175 175-185 185-195
    A - Seat tube (mm) 405 457 515
    B - Horizontal pipe (mm) 569 603 638,4
    C - Steerer tube (mm) 114 133 158
    D - Rear triangle (mm) 475 475 475
    E - Support height (mm) 313 313 313
    F - Support lowering (mm) 63 63 63
    G - Wheelbase (mm) 1149 1173 1210
    H - Head angle 67 68 68
    I - Seat tube angle (°) 73 73 73
    J - Crossover (mm) 825 861 893
    K - Reach (mm) 375 402 430
    L - Stack (mm) 636 659 752
    M - Fork (mm) 530 530 530
