The extremely aerodynamic Orbea Orca Aero M11e LTD road bike with high-quality components maintains a relatively low weight and good ergonomic properties.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Navy blue
Model/product code Orca Aero M11e LTD M13853TU
Type of Product Aero/Race
Purpose Road
Code 2000043691

Frame

Frame Orbea Orca Aero Carbon OMX disc
Frame material Carbon fibre

Components

Steering wheel OC3 Aero Road Carbon, reach 80mm, drop 125mm
Handlebar material Carbon fibre
Handlebar support Orbea ICR -8º
Depreciation No
Rudders FSA 1-1/2" Integrated aluminium cup
Fork Orbea Orca Aero OMX ICR
Fork material Carbon fibre
Saddle Prologo T4.0, 143 mm
Bar Orbea Aero OMX
Frame material Carbon fibre

Drive

Type of derailleur Electronic
Derailleurs 2x12
Number of gears 24
Front derailleur (model) SRAM Red eTap AXS
Rear derailleur (model) SRAM Red eTap AXS
Handles SRAM Red eTAP
Crank mechanism SRAM Red Dub 35x48t
Cassette / Freewheel SRAM XG-1290 10-28t 12-Speed
Chain SRAM Red 12-speed

Brakes

Brakes (model) SRAM RED eTap AXS
Brake type Hydraulic discs

Wheels

Wheel size 28"
Wheels Vision 55 SC Disc Carbon TLR CL
Tyres Vittoria Corsa Competition G2.0 TLR 700x25c
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Lighting No
Mudguards No
Luggage carrier No
User height range 173 - 179 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

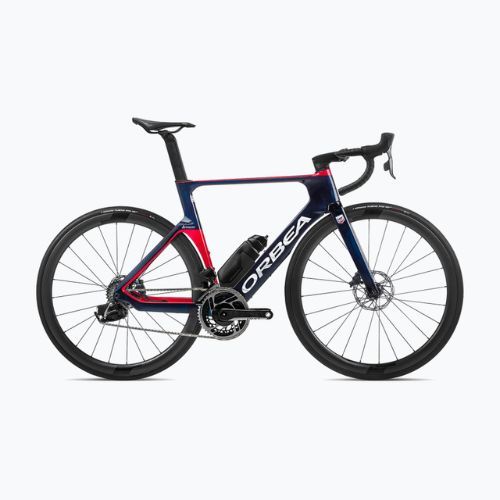

Orbea Orca Aero M11e LTD road bike navy blue M13853TU (M13853TU)

The excellent properties of the road bike Orbea Orca Aero M11e LTD are the result of many hours of wind tunnel sessions and field tests, during which every component was thoroughly analyzed.

Thanks to this, it can be stated that the Orca Aero is the best aerodynamic road bike, allowing the cyclist to maximize riding efficiency and achieve longer glides through the air. Countless improvements in this road bike collectively reduce air resistance by 15W at 40 km/h or by 28W at 50 km/h.

In the Orbea Orca Aero, the frames were aligned with airflow, cross-sections optimized, transitions smoothed, and many other enhancements introduced to significantly reduce air resistance. The vast majority of torsional and lateral loads are transferred through the lower part of the frame, which, thanks to its appropriate stiffness, allows power to be directly transferred to the rear wheel.

The horizontal top tube and lower chainstays improve airflow, and the single-profile transitions between the head tube, down tube, seat tube, and seatstays reduce turbulence in these areas. The aerodynamic handlebar, stem, and seatpost reduce air resistance around the rear wheel.

The Orca Aero M11e LTD bike is equipped with high-quality SRAM Red eTap AXS components. Also noteworthy are the used tires Vittoria Corsa Competition G2.0 TLR. The employed Graphene 2.0 technology combines rubber with graphene, allowing the tire to adjust its hardness to the prevailing road conditions. The addition of graphene also increases the tire's resistance to punctures.

Product Details

Orbea Orca Aero M11e LTD road bike navy blue M13853TU

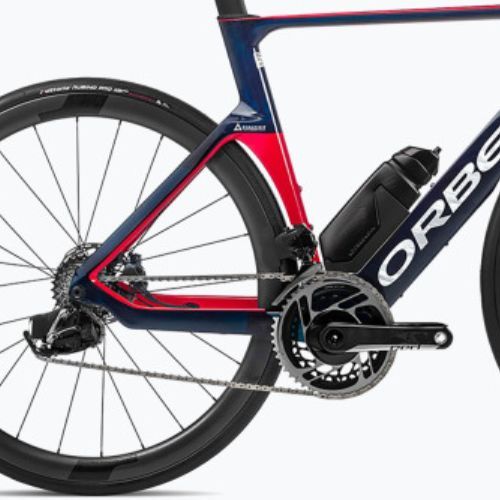

Electronic gear shift system

Experience better cycling: SRAM RED eTap AXS offers the technology that modern cyclists need, including intuitive wireless, innovative gear shifting, integrated power measurement, and AXS connectivity. The logic of the eTap wireless gear shifting is a simple and intuitive way to change gears using one button for effortless shifting and another button for strong, straightforward control.

Orbea Orca Aero M11e LTD road bike navy blue M13853TU

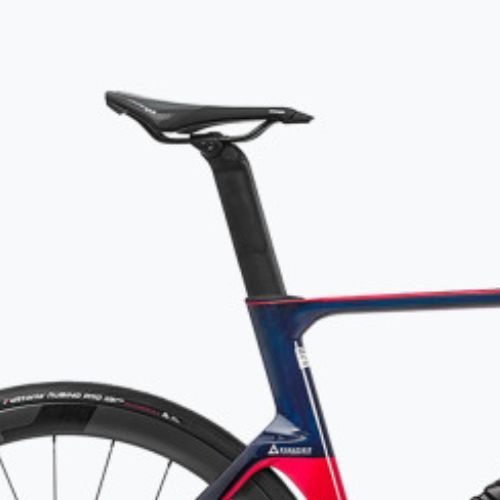

Saddle

The ergonomic saddle is suitable for both men and women. Its shape reduces pressure on soft tissues and tendons, making all-day riding very comfortable. You can also adjust the angle of inclination.

Orbea Orca Aero M11e LTD road bike navy blue M13853TU

Cable Management

The brake lines and cables are routed directly inside the bracket under an aerodynamic cover, which prevents rubbing and rattling, and the bracket can be freely adjusted. This also limits the possibility of snagging the cables while riding off-road, which positively contributes to increased safety.


Orbea Orca Aero M11e LTD road bike navy blue M13853TU
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Orca Aero M11e LTD road bike navy blue M13853TU

Orbea Orca Aero M11e LTD road bike navy blue M13853TU

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Orca Aero M11e LTD road bike navy blue M13853TU

No opinion

Bike assembly service available

Size 53 Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size 53
    Height (cm) 173-179
    A - Seat tube (mm) 524
    B - Horizontal pipe (mm) 545,5
    C - Steerer tube (mm) 134,9
    D - Rear triangle (mm) 408
    E - Support height (mm) 262
    F - Support lowering (mm) 265
    G - Wheelbase (mm) 74
    H - Head angle 976,1
    I - Seat tube angle (°) 72,8
    J - Crossover (mm) 73,5
    K - Reach (mm) 385
    L - Stack (mm) 542
    M - Fork (mm) 370
