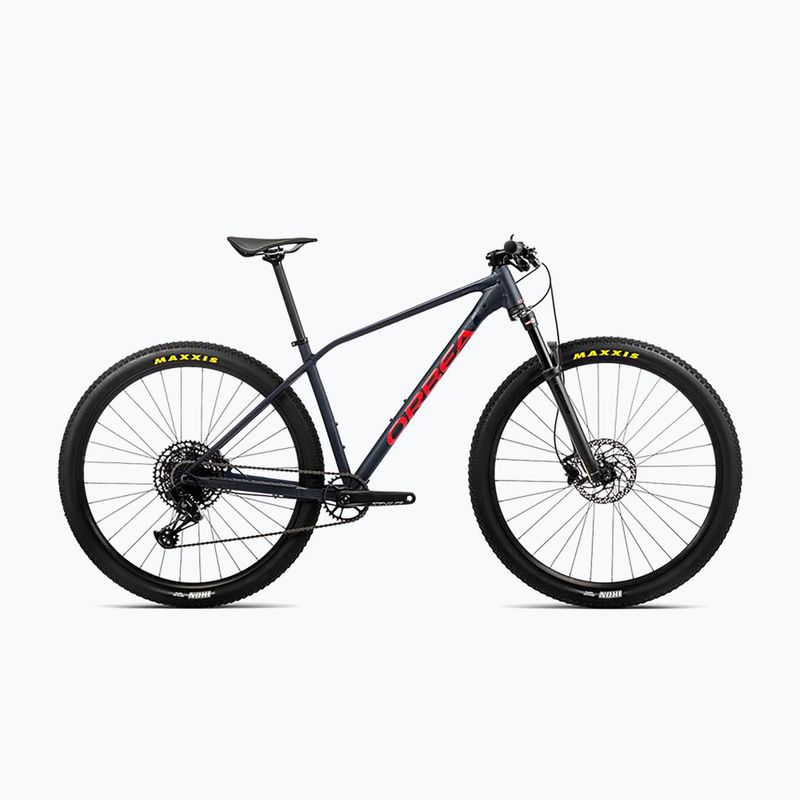

Orbea Alma H10 Eagle blue/red mountain bike M21718L1

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Alma H10 Eagle M21718L1

Leading colour Blue

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism SRAM Stylo 6K Eagle Dub Boost 32t Steel

Wheel size 29"

Frame Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing

Derailleurs 1x12

Cassette / Freewheel SRAM PG-1230 Eagle 11-50t 12-Speed

Sport Bicycles

Rear derailleur (model) SRAM NX Eagle

Handles SRAM NX Eagle

Depreciation Front

Handlebar material Aluminium

Tubeless ready tyres Yes

Brakes (model) Shimano MT201 Hydraulic Disc

Chain SRAM NX Eagle 12-Speed

Handlebar support OC1 31.8mm interface -7º

Bar OC2 forge head 27.2 Offset 0

Tyres Maxxis Ikon 2.20" FB 60 TPI Dual

Frame material Aluminium

Fork SR Suntour RAIDON 32 100mm Boost

Saddle Selle Italia Model X FecAlloy Rail 145x248mm

Steering wheel OC1 Flat 31.8mm 740mm

Brake type Hydraulic discs

Number of gears 12

Wheels Orbea OC1 25c

Stan złożenia roweru Bike adjusted and pre-assembled

Tubeless ready wheels Yes

Frame material Aluminium

Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated

Orbea Alma H10 Eagle blue/red mountain bike M21718L1 2

Sizes

Size	S	M	L	XL
Height (cm)	155-170	165-180	189-190	185-198
A - Seat tube (mm)	400	445	483	533
B - Horizontal pipe (mm)	562	596	620	650
C - Steerer tube (deg)	100	110	120	135
D - Rear triangle (mm)	435	435	435	435
E - Support height (mm)	309	309	309	309
F - Support lowering (mm)	61	61	61	61
G - Wheelbase (mm)	1092	1127	1152	1184
H - Head angle	68	68	68	68
I - Saddle angle	74,5	74,5	74,5	74,5
J - Crossover (mm)	721	735	791	829
K - Reach (mm)	395	426	448	474
L - Stack (mm)	602	612	621	635
M - Fork (mm)	501,6	501,6	501,6	501,6

Product description

Advantages

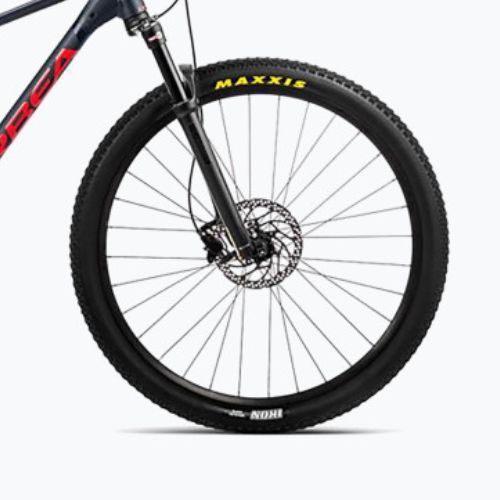

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

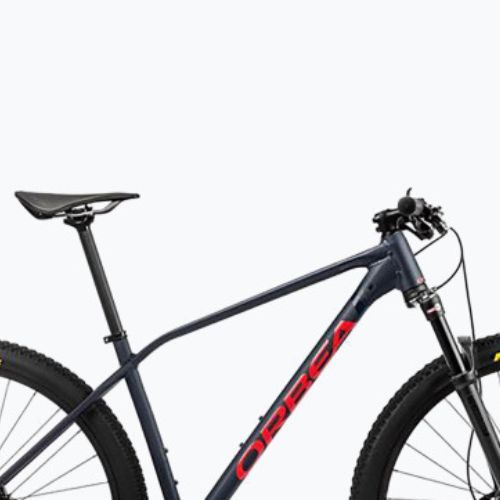

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Tubeless ready tyres

Tyres made using the TLR (Tubeless Ready) system are resistant to punctures and allow the use of lower pressures. In addition, this technology eliminates the problem of so-called Snake Bite, i.e. punctures in the inner tube caused by pinching against the rim.

Drive 1x12

The 1x12 derailleurs used on this mountain bike allow effortless shifting and provide smooth gradation. The large gear range allows you to adjust the gearing to suit the current conditions on the trail.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds."
