Basic data

Sport Bicycles
Brand Orbea
Leading colour Orange
Season Year-round
Model/product code OIZ M10 TR M23817LE
Purpose MTB
Gender Male
Country of origin of the brand Spain
Code 2000033059

Frame

Frame Orbea Oiz Carbon OMR AlloyLink Boost PF Taper UFO2 I-Line
Frame material Carbon fibre

Components

Steering wheel OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Handlebar material Carbon fibre
Handlebar support OC MP20 Mountain Performance, -8º
Depreciation Full
Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated
Fork Fox 34 Float SC Factory 120 FIT4
Damper Fox i-line DPS Factory 120mm Remote Push-Unlock Evol Kashima custom tune 190x45mm
Saddle Fizik Taiga S-alloy rail
Bar OC MC20 Mountain Control Dropper, 31,6mm, 125mm travel

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus
Handles Shimano XT M8100 I-Spec EV
Crank mechanism Shimano XT M8100 32t
Cassette / Freewheel Shimano CS-M8100 10-51t 12-Speed
Chain Shimano M7100

Brakes

Brakes (model) Shimano XT M8100 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels OC XC TEAM Carbon, 30 mm internal width, Tubeless ready, 28H
Tyres Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Lighting No
Mudguards No
Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

Other data

Service label Bike assembly service available

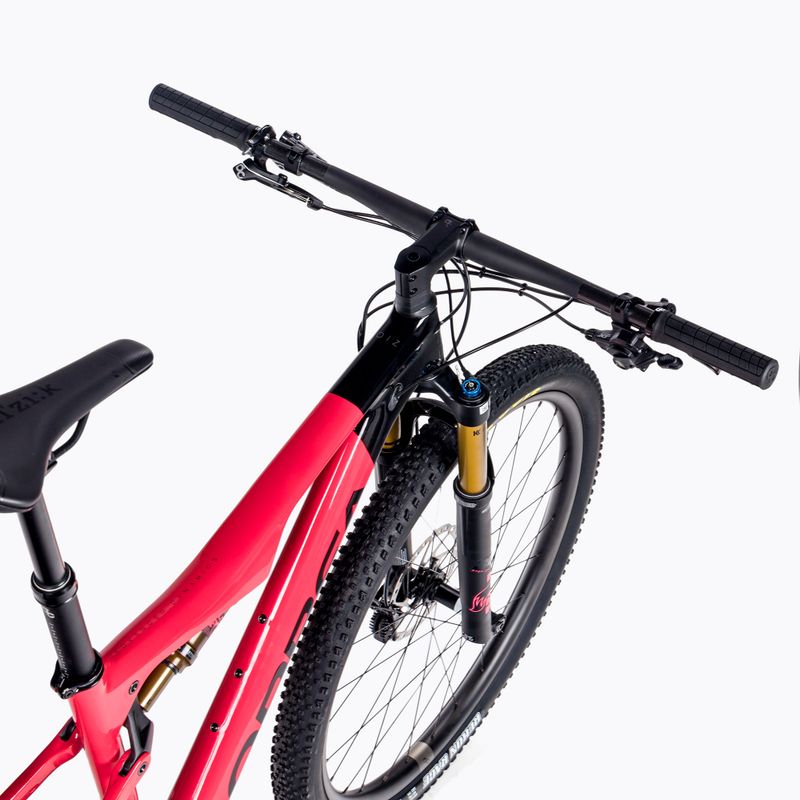

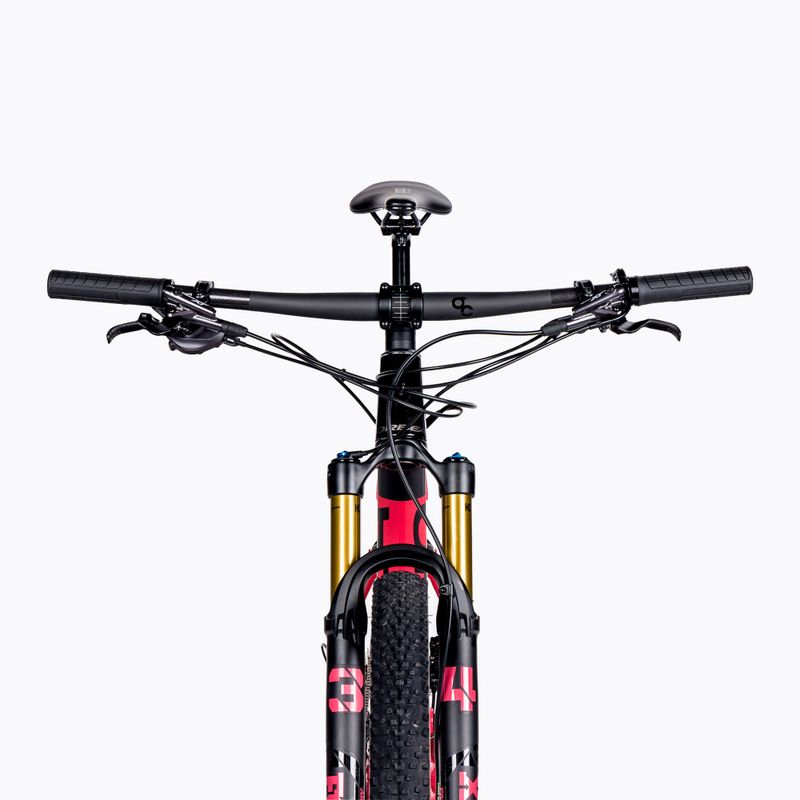

Orbea OIZ M10 TR orange/black mountain bike M23817LE (M23817LE)

Advantages

Carbon frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Orbea OIZ M10 TR orange/black mountain bike M23817LE
UVEX bike helmet Viva 3 black S4109840115
Size
52-57 cm
56-62 cm
Choose an Option...

Choose an Option

  • 52-57 cm €66.99 €59.99
  • 56-62 cm €66.99 €59.99
Add to Wish List
CamelBak Podium Chill bicycle bottle 710 ml black
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €19.99
Add to Wish List
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €23.99 €21.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea OIZ M10 TR orange/black mountain bike M23817LE

Orbea OIZ M10 TR orange/black mountain bike M23817LE

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea OIZ M10 TR orange/black mountain bike M23817LE

No opinion

Bike assembly service available

Size M Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size S M L XL
    Height (cm) 155-170 165-180 178-190 185-198
    A - Seat tube (mm) 405 432 470 520
    B - Horizontal pipe (mm) 567 596 610 643
    C - Steerer tube (mm) 90 95 105 120
    D - Rear triangle (mm) 435 435 435 435
    E - Support height (mm) 334 334 334 334
    F - Support lowering (mm) 40 40 40 40
    G - Wheelbase (mm) 1101 1131 1155 1181
    H - Head angle 68 68 68 68
    I - Seat tube angle (°) 74 74 74 74
    J - Crossover (mm) 724 739 749 756
    K - Reach (mm) 387 425 446 466
    L - Stack (mm) 593 598 608 622
    M - Fork (mm) 524 524 524 524
