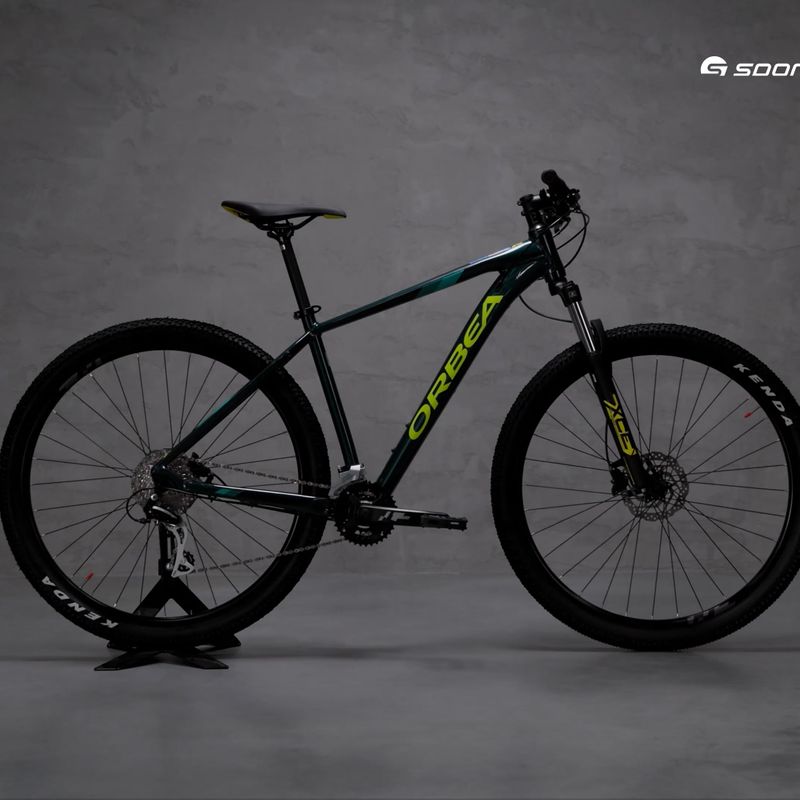

Orbea MX 29 50 green mountain bike

Code #2000022587

5 of 5 5.0 1

We are calculating the delivery time for you More
Delivery from 3,99 € More
Bulky parcel More
30 days to return More

Parameters

Frame

Frame Orbea MX Alloy only disc

Frame material Aluminium

Components

Steering wheel Alloy Flat 31.8mm 720mm

Handlebar support Alloy 31.8mm interface 7º

Depreciation Front

Rudders VP-Z104PD 1-1/8" Semi-Cartridge

Fork SR Suntour XCE 28 Coil 100mm QR

Saddle Selle Royal 2058 DRN

Bar Alloy 27.2 Offset 0

Drive

Derailleurs 2x8

Number of gears 16

Front derailleur (model) Shimano M315 31.8mm

Rear derailleur (model) Shimano Acera M360

Handles Shimano SL-M315

Crank mechanism Alloy forged 22x36t 7/8S

Cassette / Freewheel Sun Race CSM66 11-34t 8-Speed

Chain KMC X8

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc

Brake type Hydraulic discs

Wheels

Wheel size 29"

Wheels Mach1 ER20 19c

Tyres Kenda K1153 2.35" 22TPI

Additional information

Lighting No

Mudguards No

Luggage carrier No

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Year-round

Model/product code MX 29 50

Purpose MTB

Gender Male, Woman

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Sizes table

Size	M	L	XL
Height (cm)	169-180	178-190	188-200
A - Seat tube (mm)	430	470	540
B - Horizontal pipe (mm)	559	578	618
C - Steerer tube (mm)	104	115	138
D - Rear triangle (mm)	450	450	40
E - Support height (mm)	305	305	305
F - Support lowering (mm)	65	65	65
G - Wheelbase (mm)	1078	1098	1139
H - Head angle	70	70	70
I - Seat tube angle (°)	823,17	837,09	881,73
J - Crossover (mm)	397	397	430
K - Reach (mm)	623	633	655
L - Stack (mm)	506	506	506
M - Fork (mm)	42	46	46

Product description

Advantages

Front cushioning

The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.

Aluminium frame

The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
